Quick Details
-
Product name:
-
pneumatic fitting
-
Body Material:
-
Brass
-
Port size:
-
3,4,6
-
Thread size:
-
m3,m5,m6
-
Thread type:
-
BSP, PT, NPT
-
Certificate:
-
CE/ISO9001
-
Working medium:
-
Air Water Oil Gas
-
Working Pressure:
-
2.5MPa
-
Working Temp:
-
-30℃~100℃
-
Color:
-
sliver
Quick Details
-
Weight (KG):
-
0.5
-
Place of Origin:
-
China
-
Brand Name:
-
AIRWORK
-
Product name:
-
pneumatic fitting
-
Body Material:
-
Brass
-
Port size:
-
3,4,6
-
Thread size:
-
m3,m5,m6
-
Thread type:
-
BSP, PT, NPT
-
Certificate:
-
CE/ISO9001
-
Working medium:
-
Air Water Oil Gas
-
Working Pressure:
-
2.5MPa
-
Working Temp:
-
-30℃~100℃
-
Color:
-
sliver

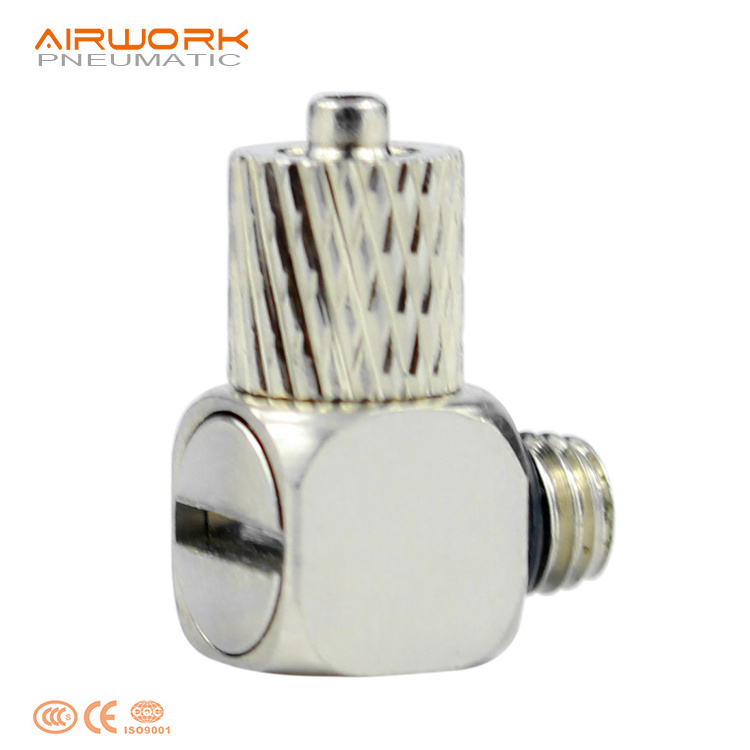

mini micro small Metal Pneumatic Joint fitting male elbow air push in fitting
Product Description
| Tube Diameter | Φ4 Φ6 Φ8 Φ10 Φ12 |
| Working Medium |
Air |
| Working Pressure | 0.095-2.5 MPa |
| Proof Pressure | 1.6 Mpa |
| Proof Vacuum Pressure | -100Kpa(10Torr) |
| Working Temp | -30 ℃~ 100 ℃ |
| Material | Brass with nickle plated |
| Model | A | B | C | E | M | L1 | L2 | L3 | D |
| 4-M5 |
2 |
7 | 8 | 7 | M5 | 12.5 | 8 | 12.2 | Φ7 |
| 5-M5 | 2 | 7 | 8 | 7 | M5 | 13.5 | 8 | 12.2 | Φ8.5 |
| 6-M5 | 2 | 7 | 8 | 7 | M5 | 13.5 | 8 | 12.2 | Φ8.5 |
