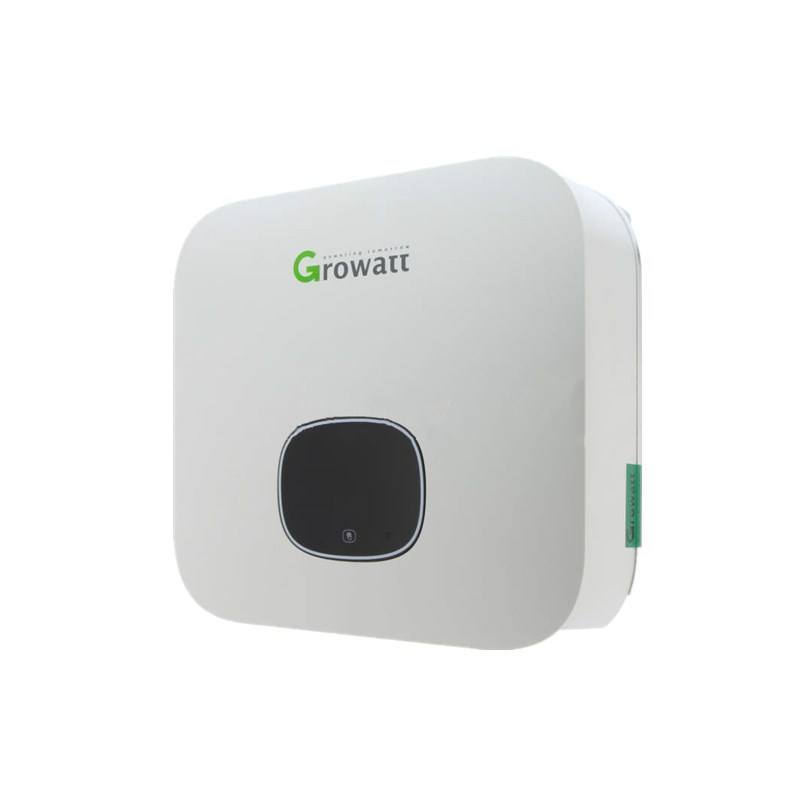

Growatt On-Grid Solar Inverter 3KW 4KW 5KW Single Phase with WiFi Module

Growatt On-Grid Solar Inverter 3KW 4KW 5KW Single Phase with WiFi Module

FOB Reference Price: Get Latest Price

≥2 Sets

US $450

≥10 Sets

US $430

≥50 Sets

US $410

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Growatt

Model Number:: MIN 4200TL-X

Input Voltage:: 70V-550V

Output Voltage:: 220V/380v

Output Current:: Load

Output Frequency:: 50Hz/60Hz

Size:: 355*419*158mm

Certificate:: CE, IEC 62109-1/2, VDE 0126-1-1, TUV

Warranty:: 5year

Weight:: 14.5kg

Product name:: EU Standard

Inverter type:: On-grid Solar Power Inverter

weight:: 15kg

Application:: Solar Power System Home

Name:: Growatt 3KW 5KW

Power:: 4kw

Keyword:: Solar Energy Power Inverter

Battery type:: Lithium Ion Battery

Display:: LCD

Quick Details

Output Type:: Single

Type:: DC/AC Inverters

Inverter Efficiency:: 98%

Place of Origin:: Jiangsu, China

Brand Name:: Growatt

Model Number:: MIN 4200TL-X

Input Voltage:: 70V-550V

Output Voltage:: 220V/380v

Output Current:: Load

Output Frequency:: 50Hz/60Hz

Size:: 355*419*158mm

Certificate:: CE, IEC 62109-1/2, VDE 0126-1-1, TUV

Warranty:: 5year

Weight:: 14.5kg

Product name:: EU Standard

Inverter type:: On-grid Solar Power Inverter

weight:: 15kg

Application:: Solar Power System Home

Name:: Growatt 3KW 5KW

Power:: 4kw

Keyword:: Solar Energy Power Inverter

Battery type:: Lithium Ion Battery

Display:: LCD

OVERVIEW

Products Description

5kw On Grid Inverter

*Double MPPT Tracker, MPPT tracking accuracy more than 99.5% *Max. Efficiency 97.9%, European Efficiency 97.4%

*Transformerless design and high power density, offer lighter and more convenient installation

*5 years standard warranty
*Power factor continuously adjustable
*Flexible communication connection, support RF, WiFi, Ethernet
*Comply with European, Australia, Asia-Pacific safety regulations

Datasheet	MIN3000TL-X	MIN4000TL-X	MIN5000TL-X	MIN5500TL-X
Max. recommended PV power (for module STC)	4680W	5460W	5980W	6500W
Max. DC voltage	500V	500V	500V	500V
Start voltage	100V	100V	100V	100V
MPP work voltage range/ nominal voltage	80V-550V /360V	80V-550V /360V	80V-550V /360	80V-550V /360V
Full load dc voltage range	190V-500V	150V-500V	160V-500V	175V-500V
Max. input current of tracker A/ tracker B	10A/10A	15A/15A	15A/15A	15A/15A
Max. input current per string of tracker A/tracker B	10A/10A	15A/15A	15A/15A	15A/15A
Number of independent MPP trackers / strings per MPP tracker	2/1	2/1	2/1	2/1
Output (AC)
Rated AC output power	3600W	4200W	4600w	5000w
Max. AC apparent power	3600VA	4200VA	4600VA	5000VA
Max. output current	16.3A	19A	20.9A	22.7A
AC nominal voltage; range	220V/230C/240V;180Vac-280Vac	220V/230C/240V;180Vac-280Vac	220V/230C/240V;180Vac-280Vac	220V/230C/240V;180Vac-280Vac
AC grid frequency; range	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz
Displacement power factor, configurable	0.8leading… 0.95lagging	0.8leading… 0.95lagging	0.8leading… 0.95lagging	0.8leading… 0.95lagging
THDi	<3%	<3%	<3%	<3%
AC connection	Single phase	Single phase	Single phase	Single phase
