Excellent quality plastic net making machine/epe bath ball making machine

Excellent quality plastic net making machine/epe bath ball making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $19000

≥2 Sets

US $17000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Sunvo

Voltage:: 380V 50HZ

Dimension(L*W*H):: 10.0X3.0X2.0m

Power (kW):: 358

Weight:: 12 KG

color:: green

After Warranty Service:: Video technical support

Certification:: CE Certificate

Quick Details

Screw Design:: Single-screw

Screw L/D Ratio:: 28:1

Screw Speed (rpm):: 120 rpm

Place of Origin:: Shandong, China

Brand Name:: Sunvo

Voltage:: 380V 50HZ

Dimension(L*W*H):: 10.0X3.0X2.0m

Power (kW):: 358

Weight:: 12 KG

color:: green

After Warranty Service:: Video technical support

Certification:: CE Certificate

Product Overview

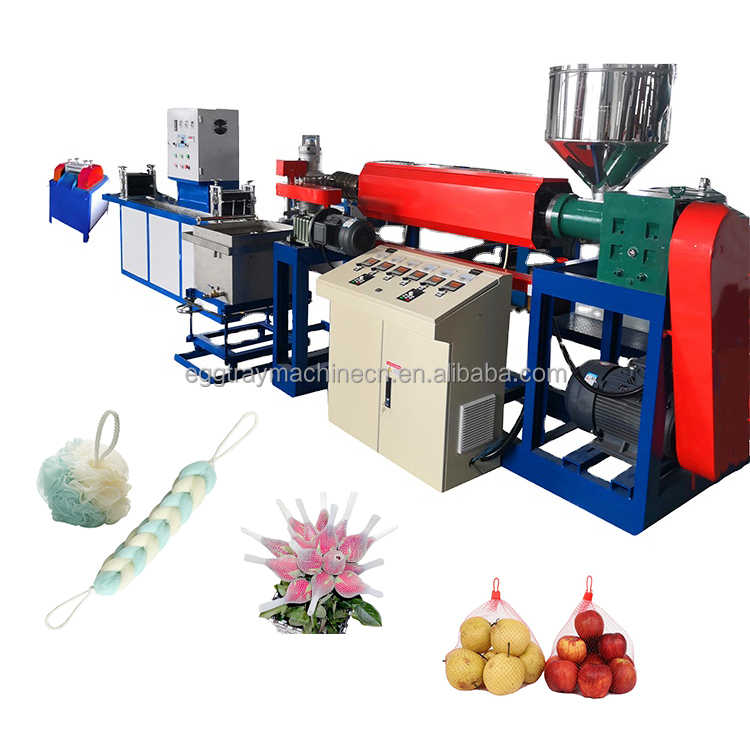

pe knotless toys net machine packaging machine

This machine applies to plastic material once-through form the plastic material and continuous automatic production. It can produce different material and size such as a filter of top-grade appliance, the package of breeding at sea, wine, fruit,
vegetable and so on.

PRODUCT SPECIFICATIONS

Model	SHWJ-45	SHWJ-60	SHWJ-65	SHWJ-70
Screw diameter	45mm	60mm	65mm	70mm
Production Efficiency	6-8kg/h	10-12kg/h	12-14kg/h	14-15kg/h
Installed power	25kw	30KW	35kw	40kw
Machine weight	2T	2.5T	3T	3.5T

Main technical parameter:

Material: LDPE/PP

Product: Shower ball, fruit and vegetable packing net, flower net

Power: 35KWScrew

Diameter: 65mm
Outside diameter of barrel: 105mm

Screw L/D: 25:1

Screw material: 38CrMoALA

Manpower needed: one person

Layout: 10.0X3.0X2.0m

Main features:

1.This machine applies to plastic material once-through form the net and continuous automatic product.

2.It can produce different materials and size such as a filter of top-grade appliance.

3.It is the new replacement of the traditional mesh bags,and cost only half of that.

4.Screw and barrel adopts 38CRrMoALA nitriding process with long life.

5.Drive motor adopts variable frequency control which has high speed control precision,wide adjusting range,low

consumption and reliable running,

6.Intelligent digital temperature controller are adopted with high efficiency and low consumption.

Details Introduction

Main motor power	7.5 kw
Mode of main motor control	Frequency control of motor speed
Screw material	38CrMoALA
Outside diameter of barrel	Φ105mm
Mode of speed change	Extruder dedicated reducer
Heating ring	Cast aluminum heater
Heating power	12kw

Extruder head	High speed extruder head, frequency control of motor speed
Extruder head motor power	4kw
Mode of extruder motor control	Frequency control of motor speed
Heating zone of extruder head	2pcs
Heating power	3kw

Sizing method	Size type
Cooling method	water cooling
Sizing width	according to customer requirement
Material of water tank	Stainless steel

Temperature control	electric heating water constant temperature control
Heating power	9KW
Material of water tank	Stainless steel
Size	2000×230×200mm
Tension power	2.2KW
Driving type	Speed Converter

Reeling position	double position
Driving moment	10N.M×2
Dehydration power	0.75KW
