Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Shuangji
-
Model Number:
-
standard
-
Loading Capacity:
-
1000KG,1500KG,2000 KG
-
Usage:
-
Tail Gate for Truck, Van, Cargo Truck, Pickup
Quick Details
-
OE NO.:
-
Standard
-
Size:
-
OEM
-
Material:
-
Steel
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Shuangji
-
Model Number:
-
standard
-
Loading Capacity:
-
1000KG,1500KG,2000 KG
-
Usage:
-
Tail Gate for Truck, Van, Cargo Truck, Pickup

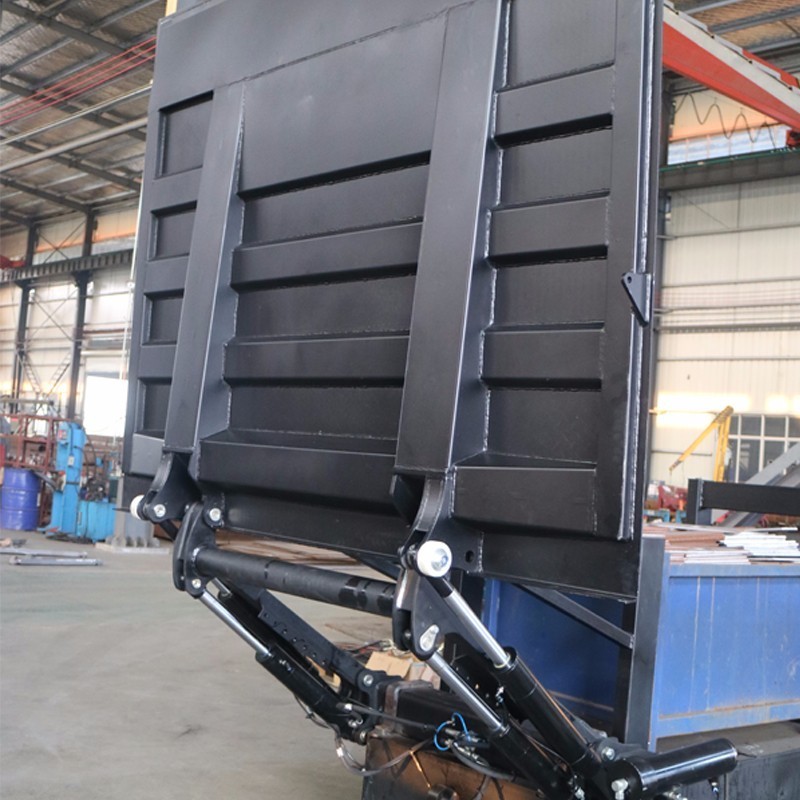

Hydraulic Tailgate Lift For Truck Tail Platform
The vehicle hydraulic tail gate is a kind of device which is installed at the vehicle tail. It is driven by the vehicle power. Vehicles installed with tail gate is beneficial to the mechanical loading and unloading operations, thus highly improves the loading efficiency and safety. At present, it is widely used in the industries such as transportation of gas, sanitation and logistic, hardware molding, etc.
1. Material: High strength plate
2. Cylinder piston rod: quenching with quenching, chrome-plated nickel, durable, anti-rust treatment
3. Cylinder seals: Temperature: -40 ℃ -60 ℃ Celsius
4. Cylinder quantity: 4pcs, two for lifting and two for flip, (single acting hydraulic cylinder)
Standard Models
|
SJ-XB10/105 ( T/L ) |
Lifting capacity is 1 ton, suitable for the max. Height from truck body to the ground is 1.05 meters |
|
SJ-XB10/130 ( T/L ) |
Lifting capacity is 1 ton, suitable for the max. Height from truck body to the ground is 1.30 meters |
|
SJ-XB15/155 ( T/L ) |
Lifting capacity is 1.5 tons, suitable for the max. Height from truck body to the ground is 1.55 meters |
|
SJ-XB20/155 ( T/L ) |
Lifting capacity is 2 tons, suitable for the max. Height from truck body to the ground is 1.55 meters |
Other Models ( Suitable for semi-trailer with large frame models)
|
SJ-XB15/155 ( T/L ) |
Lifting capacity is 1.5 tons, suitable for the max. height from truck body to the ground is 1.55 meters |
|
SJ-XB20/155 ( T/L ) |
Lifting capacity is 2 tons, suitable for the max. Height from truck body to the ground is 1.55 meters |
Installation Parameters
|
Model |
X(max) |
Y(min) |
W(max) |
Z(min) |
|
SJ-XB10/105 (T/L) |
900 |
1400 |
80 |
120 |
|
SJ-XB10/130 (T/L) |
900 |
1400 |
80 |
120 |
|
SJ-XB15/155 (T/L) |
1000 |
1520 |
100 |
150 |
|
SJ-XB20/155 (T/L) |
1100 |
1520 |
100 |
150 |
|
SJ-XB15/155 (T/L) |
1100 |
1620 |
100 |
150 |
|
SJ-XB20/155 (T/L) |
1100 |
1620 |
100 |
150 |
