Identify day and night automatically. Can adjust light-control according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for adjustment, please refer to testing way.
Detection range can be set according to installation position and detection field.
The power show and detection show: the indicator lamp will flash one time each 4 seconds after switching on the power, and flash two times per second when receiving the signal. At the same time, it shows the sensor in the normal detection conditions.
Time setting is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time delay basic. (Set time)
Time setting adjustment: it can be set according to your desire. The minimum is 10±3 sec; the maximum is 10±2min.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KP-09
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kwin
-
Theory:
-
Inductance Sensor
-
Output:
-
Switching Transducer
Quick Details
-
Use:
-
Lighting Switch
-
Mounting Type:
-
Ceiling mount
-
Description:
-
PIR Sensor, KP-06
-
Model Number:
-
KP-09
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kwin
-
Theory:
-
Inductance Sensor
-
Output:
-
Switching Transducer
Product Description
|
Product Name
|
PIR Sensor
|
|
Art No
|
KP-09
|
|
Detection Range
|
12M
|
|
Home page
|
www.kwinlux.com
|
-
Product performance description
-
Details Images
Intelligent switch
Wall-hung switch
Intruder detect
Product Usage

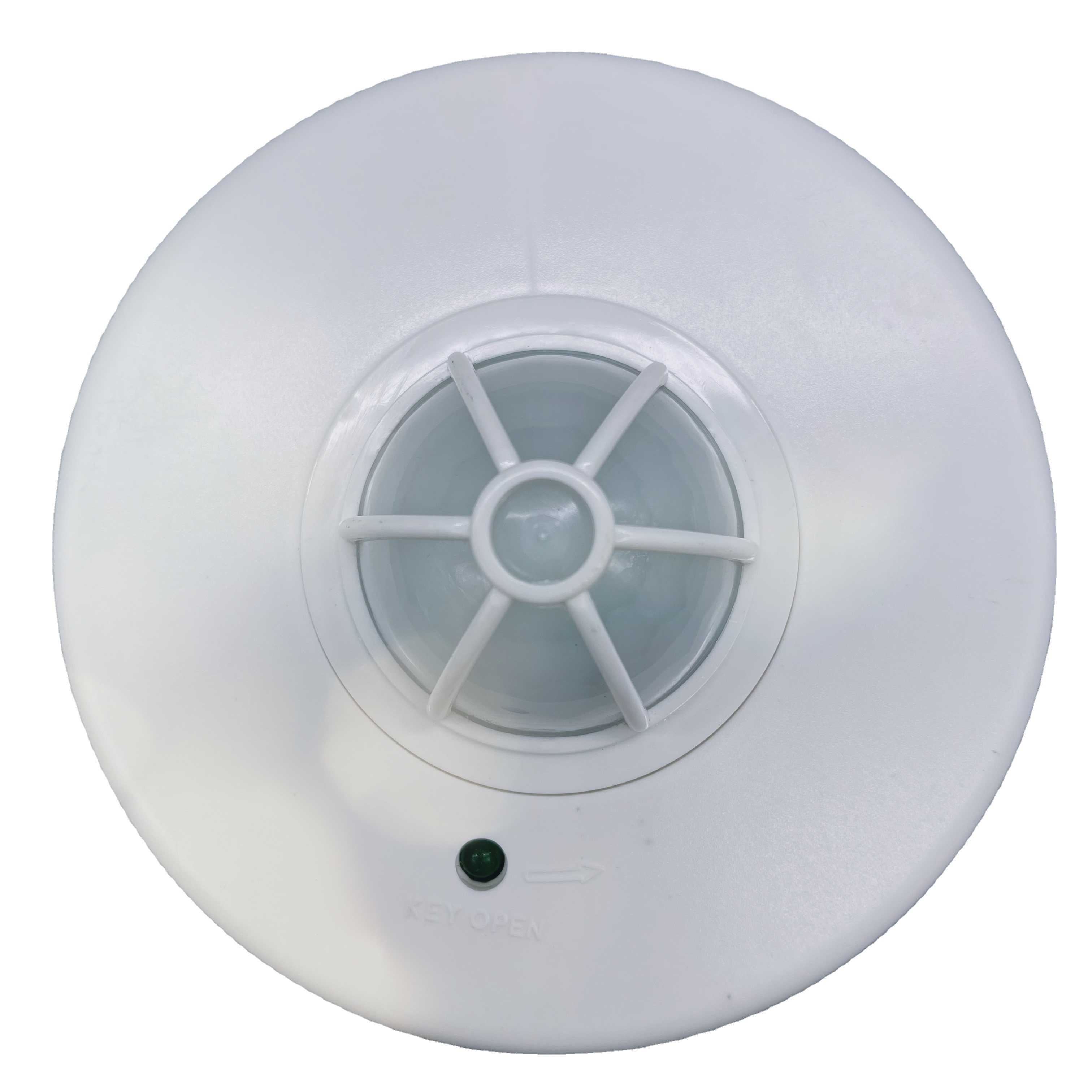

The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. One detector inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely, possessing the functions of power show and detecting show.
Power source: 220-240V/AC
Power frequency: 50Hz
Time setting: min: 10sec±3sec
max:10min±2min(adjustable) Detection range(22°C): 8m Max.(dia.)(adjustable) Light-control: <3LUX~daylight(adjustable) Detection angle: 360°
Rated load: 1200W Max.tungsten
300W Max.fluorescent Installation height: 2.5~3.5m
Working humidity: <93%RH
Detection motion speed: 0.6-1.5m/s Power consumption: 0.45W (static 0.1W) Working temperature: -10°C~+40°C
