1. High power density: the maximum power density reaches 25kW/L;
2. High precision control: fast and accurate torque control and speed control;
3. High-reliability automotive-grade IGBT power module;
4. IGBT gate-level driver with integrated protection function;
5. Safe and reliable fault detection and handling measures;
6. Architectural design that meets ISO26262 functional safety requirements;
7. Use IC-CPLD to realize DSP+CPLD fast protection processing;
8. The water channel adopts friction welding technology to improve the reliability of the water channel sealing.
- Product Details
- {{item.text}}
Quick Details
-
Max power:
-
25KW
-
Rated voltage:
-
336VDC
-
voltage range:
-
250-450VDC
-
Rated capacity:
-
≥65KVA
-
Peak capacity:
-
≥140KVA
-
Rated current:
-
160Arms
-
Peak current:
-
335Arms
-
Rated condition controller efficiency:
-
≥98%
-
weight:
-
≤5Kg
-
Application:
-
car
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Brogen
-
Model Number:
-
motor controller
-
Max power:
-
25KW
-
Rated voltage:
-
336VDC
-
voltage range:
-
250-450VDC
-
Rated capacity:
-
≥65KVA
-
Peak capacity:
-
≥140KVA
-
Rated current:
-
160Arms
-
Peak current:
-
335Arms
-
Rated condition controller efficiency:
-
≥98%
-
weight:
-
≤5Kg
-
Application:
-
car
Product Description

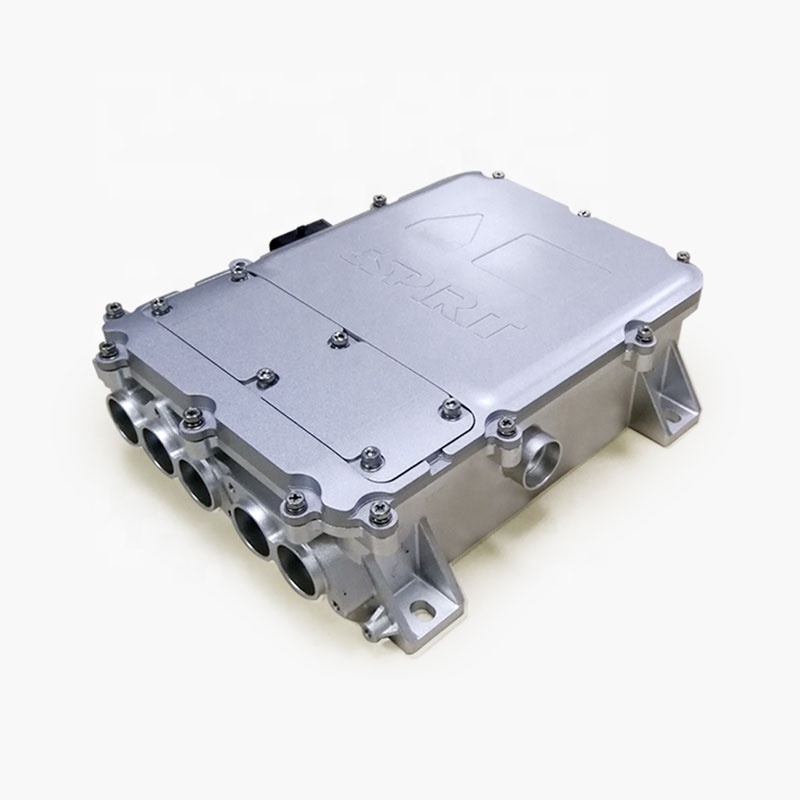

Brogen High Voltage 336V Inverter Electric Car EV PMSM AC Motor Speed Controller
|
Model
|
KTZ34X22SI30YSPL
|
KTZ34X30SI30YSPL
|
KTZ34X40SI30YSPL
|
KTZ54X22SI30YSPL
|
KTZ54X34SI30YSPL
|
|
Rated input voltage(V)
|
336
|
336
|
336
|
540
|
540
|
|
Input voltage range(V)
|
200-450
|
200-450
|
200-450
|
400-750
|
400-750
|
|
Feeding voltage range(V)
|
200-450
|
200-450
|
200-450
|
400-750
|
400-750
|
|
Rated output current(A)
|
110
|
150
|
200
|
110
|
170
|
|
rated power(kw)
|
30
|
40
|
55
|
50
|
60
|
|
Stall current(A)
|
220
|
300
|
400
|
220
|
340
|
|
Maximum working current of controller(A）
|
220
|
300
|
400
|
220
|
340
|
Specification
|
Motor Controller Unit/Inverter
|
|
|
|
|||
|
Model
|
K34X33S-D1A
|
Rated current (Arms)
|
160
|
|||
|
Rated voltage (VDC)
|
336
|
voltage range (VDC)
|
250-450
|
|||
|
Rated capacity (KVA)
|
≥65
|
Peak capacity (KVA)
|
≥140
|
|||
Other Models of Controller
