Quick Details
-
Brand Name:
-
GEYA
-
Model Number:
-
GYHO8-63 2P
-
Max. Current:
-
63A
-
IP level:
-
IP20
-
Mechanical Life:
-
10000 Cycles
-
Short Circuit Current:
-
1200A
-
IP Rating:
-
IP 20
-
Operating Temperature:
-
-5℃~50℃
-
Cable Size:
-
Max 10mm²
-
Mounting:
-
DIN 35mm Rail
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
63A
-
Rated Frequency:
-
50/60Hz
-
Number of Poles:
-
1P,2P,3P,4P
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
230/400V
-
Place of Origin:
-
ZHE
-
Brand Name:
-
GEYA
-
Model Number:
-
GYHO8-63 2P
-
Max. Current:
-
63A
-
IP level:
-
IP20
-
Mechanical Life:
-
10000 Cycles
-
Short Circuit Current:
-
1200A
-
IP Rating:
-
IP 20
-
Operating Temperature:
-
-5℃~50℃
-
Cable Size:
-
Max 10mm²
-
Mounting:
-
DIN 35mm Rail
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
63A
-
Rated Frequency:
-
50/60Hz
-
Number of Poles:
-
1P,2P,3P,4P
············This link price is only for
GYHO8-63 2P············
Product Description

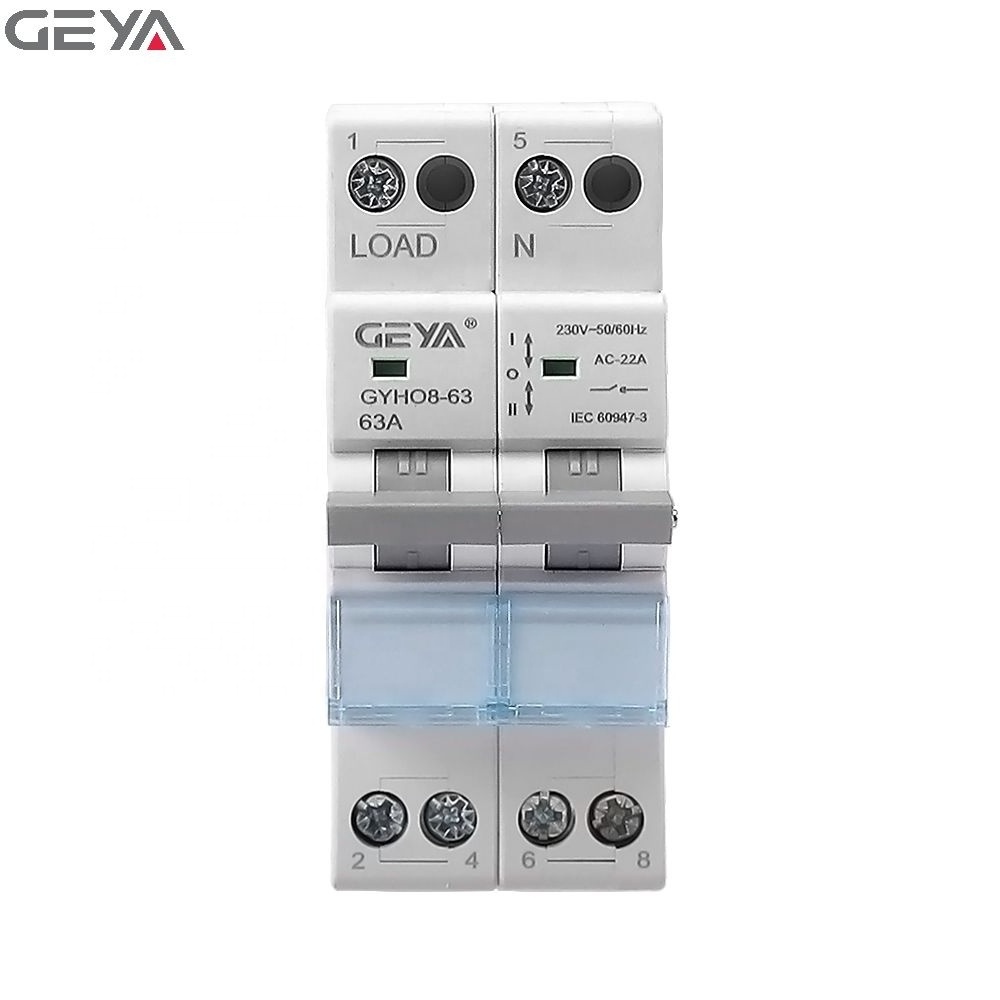

Product Overview
The purpose of the Manual Transfer Switch is to manually transfer power to analternate source.The most common application is transferring power from abackup power source to the load during utility failures.
When installed properly,the Manual Transfer Switch provides an easy means fortransferring loads to an alternate source in the event of another power sourcefailure.
Product Features
1.Manual Transfer Switch has a high voltage range of 1-600VAC.
2.Adequate durability has been ensured by testing against the IEC60947-3 standardin the specification of endurance requirements.
3.The manual transfer switch is operated via a handle fixed directly on the switch.The 16 to 63 Ampere sizes can be snapped-on to a DIN rail and the front fits inthe 45 mm consumer unit cut-out.
4.Clearly marked power postions with Indicator lights to easily understand whichpower source is being utilized.
5.Label window for easy and clear labeling of power sources.
Shape and installation dimensions:
Specification
|
Rated Voltage
|
230/400V
|
|
Rated Current
|
63A
|
|
Rated Frequency
|
50/60Hz
|
|
Number of Poles
|
1P,2P,3P,4P
|
|
Indicator
|
1-0-2(1=Main Power ON,O=OFF,2=Standby Power ON)
|
|
|
Indicator Window 1=Red,0=Green,2=Yellow(Customizable)
|
|
Short Circuit Current
|
1200A
|
|
Mechanical Life
|
10000 Cycles
|
|
IP Rating
|
IP20
|
|
Operating Temperature
|
-5℃~50℃
|
|
Cable Size
|
Max 10mm²
|
|
Mounting
|
DIN 35mm Rail
|
Packing List
|
Type
|
PCS/CTN
|
Carton Size
(CM) |
K.W.
(KG) |
N.W.
(KG) |
Product weight
（g） |
|
|
|
|
|
|
|
|
GYHO8-50/63 1P
|
240
|
460*225*410
|
18.8
|
17.42
|
72.6
|
|
GYHO8-50/63 2P
|
120
|
|
19
|
17.63
|
146.9
|
|
GYHO8-50/63 3P
|
80
|
|
19
|
17.62
|
220.2
|
|
GYHO8-50/63 4P
|
60
|
|
19
|
17.60
|
293.3
|
|
GYHO8-125 1P
|
120
|
460*225*410
|
18.8
|
17.35
|
144.6
|
|
GYHO8-125 2P
|
60
|
|
19
|
17.66
|
294.3
|
|
GYHO8-125 3P
|
40
|
|
19.32
|
17.58
|
439.4
|
|
GYHO8-125 4P
|
20
|
|
25.4
|
23.50
|
587.3
|
