Quick Details
-
Dimension(L*W*H):
-
1623x1157X1567mm
-
Weight:
-
330 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-

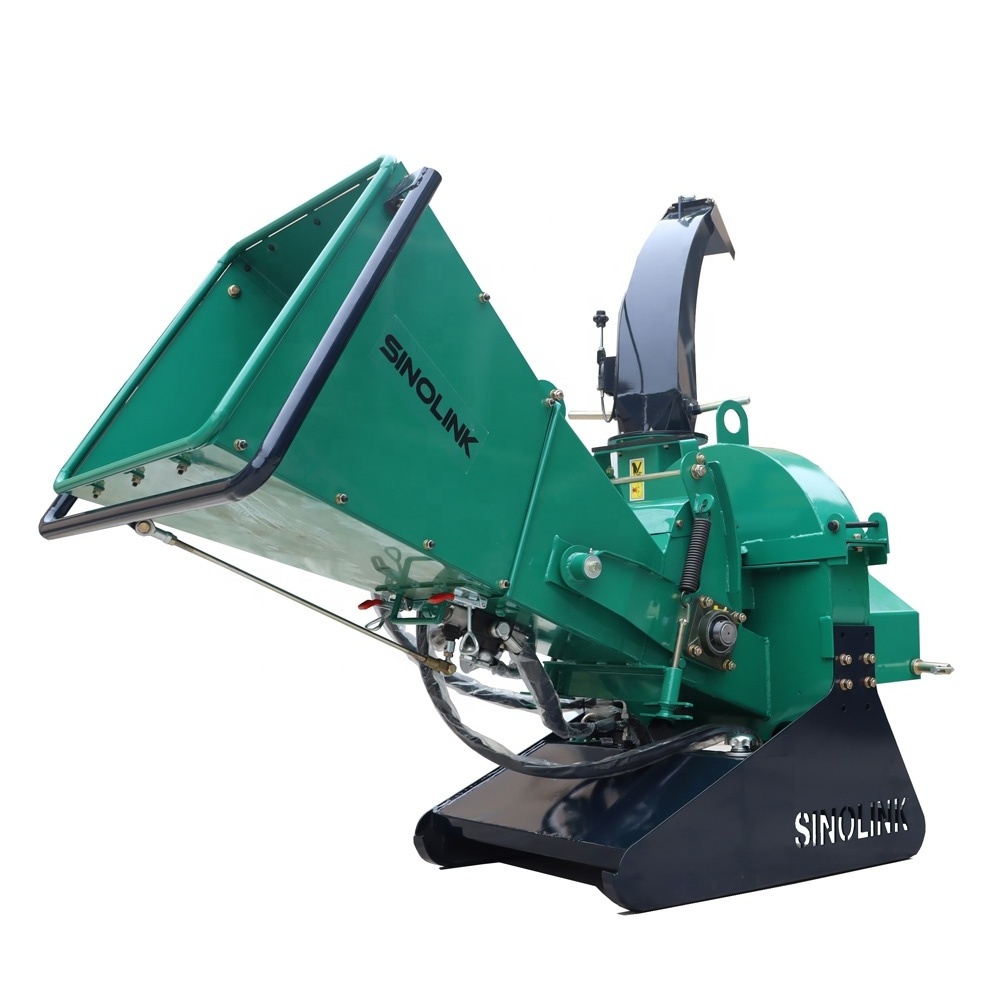

tractor mounted wood chipper
-
Feeding system:
-
Hydraulic Infeeding
-
Infeed hopper:
-
foldable
-
Blade:
-
4 Blades
-
Max splitting diameter:
-
100mm
-
Transport:
-
3-Point Hitch
-
Minimum HP Required:
-
20HP
-
Hydraulic Requirement (Tractor):
-
None. Self contained
-
Hydraulic Tank Volume:
-
4.5 gal [17 L]
Quick Details
-
Use:
-
Crush trees, chips wood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOLINK
-
Dimension(L*W*H):
-
1623x1157X1567mm
-
Weight:
-
330 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
tractor mounted wood chipper
-
Feeding system:
-
Hydraulic Infeeding
-
Infeed hopper:
-
foldable
-
Blade:
-
4 Blades
-
Max splitting diameter:
-
100mm
-
Transport:
-
3-Point Hitch
-
Minimum HP Required:
-
20HP
-
Hydraulic Requirement (Tractor):
-
None. Self contained
-
Hydraulic Tank Volume:
-
4.5 gal [17 L]
Introduction
infeed system, the BX42R is capable of chipping up to 4” (10cm) diameter material. The BX42R is a good fit for customers with sub
compact tractors that feature the following:
1) Rear PTO that spins at 540RPM
2) 15-30HP at the PTO
3) Ability to lift 727lbs (330kgs) at the 3 point hitch system
|
Drive system
|
PTO
|
|
Transport
|
3-Point Hitch
|
|
Minimum HP Required
|
20HP
|
|
In-Feed System
|
Hydraulic
|
|
Hydraulic Oil
|
ISO 32 / AW 32 (ISO 46 / AW 46 for warmer climates)
|
|
Hydraulic Tank Volume
|
4.5 gal [17 L]
|
|
Hydraulic Requirement (Tractor)
|
None. Self contained
|
|
Blade Quantity and Dimensions
|
Four (4); 5.71 X 2.72 X 5/16 in [145 X 69 X 8 mm]
|
|
Infeed Roller Diameter
|
5-5/16 in [134 mm] at Tooth Tip
|
|
Infeed Chute Dimensions
|
19-5/8 X 18-7/8 in [500 X 480 mm]
|
|
Product Weight
|
330kg
|
|
Product Shipping Weight
|
360kg
|
|
Product Shipping size
|
1300×950×1200mm
|
Capacity
that tapers down to a 4” x 6” (10 cm x 15 cm) opening where the 5.25” (13cm) diameter hydraulically driven infeed roller grabs the
branches and feeds them through the chipper. Branches as small as ¼”(6mm) diameter and as large as 4” (10 cm) diameter can be fed
through the BX42R. To chip full 4” (10cm) diameter logs at full infeed speed, tractors with over 20 HP at the PTO is required.
Hydraulic Infeed System
chippers self contained hydraulic system.
The roller is adjustable in direction and speed making it easy to feed branches of all shapes and sizes.
The hydraulic pump is belt driven from the main flywheel shaft.
The roller down pressure may be adjusted via the two large
springs ensuring it grabs branches and easily pulls them in, eliminating the need for manual feeding.
Folding Infeed Chute
also be folded up which decreases the footprint of the chipper during storage or transport.
Infeed Opening
Discharge Chute
possible to direct the wood chips in any direction regardless of the location of the chipper.
The end of the chute stands at 66” (1.7m) off of the ground,
making it quite easy to direct the wood chips into the back of a truck or trailer if desired.
Located at the end of the discharge chute is a rotating deflector,
which allows further control of the location of the wood chips.
Simply point it straight for maximum distance or angled down to deflect the chips directly to the ground or a trailer.
