Quick Details
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-IPS3064
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100/1000M
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
5 years, lifelong maintenance.
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop, 35mm DIN rail
-
Operation TEMP/ Humidity:
-
-40~+75°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+85°C, 5%~95% RH Non condensing
-
MAC:
-
8K
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps (non-blocking)
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-IPS3064
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100/1000M
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
5 years, lifelong maintenance.
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop, 35mm DIN rail
-
Operation TEMP/ Humidity:
-
-40~+75°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+85°C, 5%~95% RH Non condensing
-
MAC:
-
8K

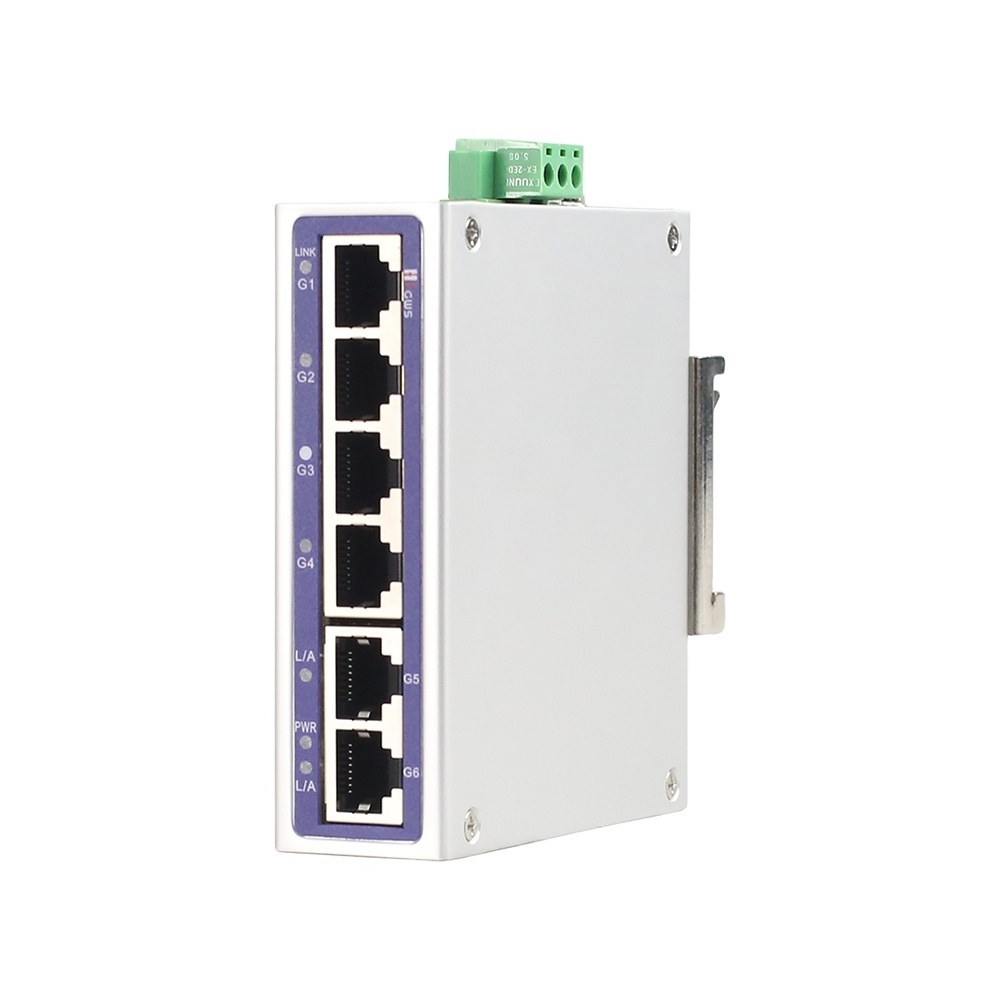

Product Description
Specification
|
Model
|
GWS-IPS3064
|
|
|
Interface Characteristics
|
|
|
|
Fixed Port
|
6*10/100/1000Base-T RJ45 ports (Data)
2 set of V+, V- redundant DC power ports (3P Phoenix terminal+DC5521 Jack) |
|
|
Ethernet Port
|
Port 1-6 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
|
Chip Parameter
|
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3u 1000Base-T, IEEE802.3x |
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
|
Switching Capacity
|
16Gbps
|
|
|
Forwarding
Rate@64byte |
8.93Mpps
|
|
|
MAC
|
8K
|
|
|
Buffer Memory
|
2Mb
|
|
|
Jumbo Frame
|
9.2KB
|
|
|
LED Indicator
|
Power: PWR (Green), Network: Link G1-G6 (Green)
|
|
|
Power Supply
|
|
|
|
Working Voltage
|
12-48VDC, 3P industrial phoenix terminal+DC5521 Jack, support anti-reverse protection
|
|
|
Power Consumption
|
Standby<4W, Full load<6W
|
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
|
Physical Parameter
|
|
|
|
Operation TEMP / Humidity
|
-40°C~+75°C, 5%~90% RH Non condensing
|
|
|
Storage TEMP / Humidity
|
-40°C~+85°C, 5%~95% RH Non condensing
|
|
|
Dimension (L*W*H)
|
98*88*30mm
|
|
|
Net /Gross Weight
|
<0.2kg / <0.3kg
|
|
|
Installation
|
Desktop, DIN rail
|
|
|
Certification & Warranty
|
|
|
|
Lightning Protection
|
Protection level: IP30
Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/ CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4 (EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s to 3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti vibration)
IEC60068-2-32 (Free fall), IEC60068-2-27 (Anti shock) |
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
|
Warranty
|
5 years, lifelong maintenance.
|
|
