- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Low Carbon Steel
-
Surface treatment:
-
Galvanized
-
Application:
-
construction site etc
-
Packing:
-
Plastic Film + Metal Pallet
-
Design:
-
Professional Customized CAD Drawing
-
Size:
-
Customized Size
-
Advantage:
-
Easy to move and install etc
-
Color:
-
Customized Color
-
Crowd Control Barrier Certification:
-
ISO,CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOPE
-
Product name:
-
Crowd control barrier
-
Material:
-
Low Carbon Steel
-
Surface treatment:
-
Galvanized
-
Application:
-
construction site etc
-
Packing:
-
Plastic Film + Metal Pallet
-
Design:
-
Professional Customized CAD Drawing
-
Size:
-
Customized Size
-
Advantage:
-
Easy to move and install etc
-
Color:
-
Customized Color
-
Crowd Control Barrier Certification:
-
ISO,CE
《

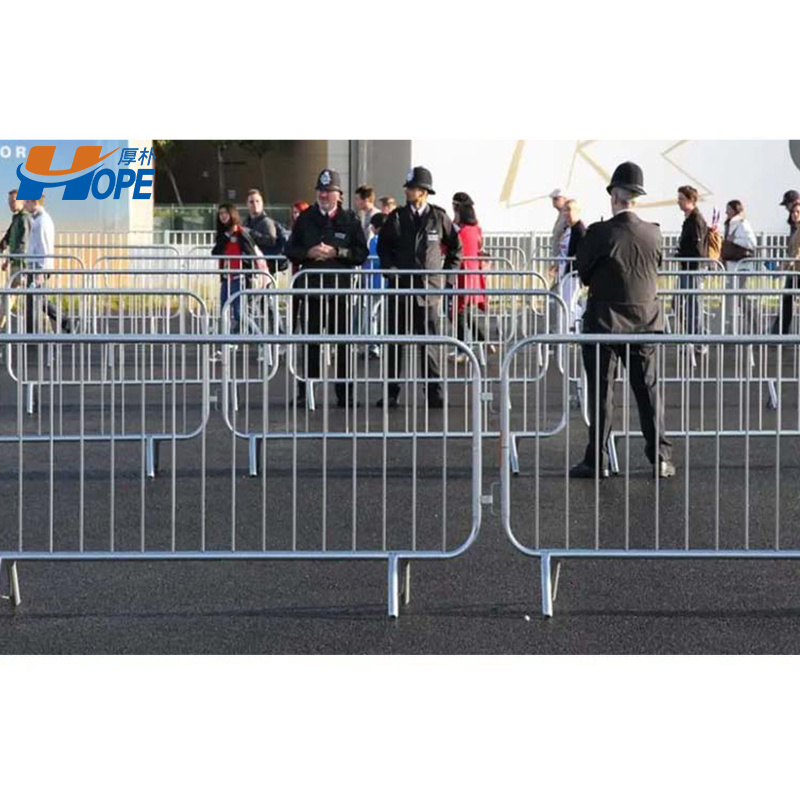

Crowd Control Barrier
》
Crowd control barriers, are designed to be combined with the next obstacle by means of fixed hook and loop on both sides. No additional couplers are needed to connect the barriers together. This versatile steel barrier is easy to stack, which means they can be easily moved from one site to another.
|
Height
|
1m,1.1m,1.2m,1.5m
|
|
|
Width
|
2m,2.2m,2.5m
|
|
|
Frame tube
|
20mmOD, 25mmOD,32mmOD,38mmOD,42mmOD
|
|
|
|
Thickness:1.2mm,1.5mm,2.0mm,2.5mm
|
|
|
Inner tube
|
12mmOD, 16mmOD, 20mmOD, 25mmOD
|
|
|
|
Thickness:0.8mm,1.0mm,1.2mm,1.5mm
|
|
|
Spacing
|
60mm,100mm,120mm,150mm,200mm
|
|
|
Accessories
|
Signboard, Hooks, Lugs
|
|
|
Feet
|
Fixed base,Flat base,Bridge base
|
|
|
Material
|
Galvanized steel tube
|
|
|
Surface treatment
|
Hot dipped galvanized, powder coated,PVC coated
|
|
|
Color
|
Silver, yellow, green, red, orange,black, etc
|
|
|
Note: Our crowd control barrier can be customized according to your required
|
|
|
If you need more info, please feel free to contact us. →→ →
Contact Us >
Products Description
Colorful for Outdoors
Hot dipped or powder coating
surface supplies corrosion
resistance and various colors
for different use.
Flexible Structure
Combine as many as crowd
control barriers you want for
your use without any difficult.
Customization Service
Reflective sheets, shade cloth,
billboard or signage can be
customized for your choice.
Pedestrian & Vehicle Gate
Pedestrian or vehicle gates
can be supplied according
to your sizes.to your sizes.
Flexible Feet Choice
Fixed or removable feet for choice
Bridge, flat or wheel removable feet options
Technical details
Length: 79".
Height: 42".
Main frame: 1-1/2" OD × 18 gauge
thickness.
Grill: 14 uprights of 5/8" OD × 18 gauge
thickness.
Upright spacing: 5.3".
Feet: flat/bridge/fixed.
Height: 42".
Main frame: 1-1/2" OD × 18 gauge
thickness.
Grill: 14 uprights of 5/8" OD × 18 gauge
thickness.
Upright spacing: 5.3".
Feet: flat/bridge/fixed.
Length: 84".
Height: 42".
Main frame: 1-1/2" OD × 15 gauge
thickness.
Grill: 14 uprights of 5/8" OD × 16 gauge
thickness.
Upright spacing: 5.6".
Feet: flat/bridge/fixed.
Height: 42".
Main frame: 1-1/2" OD × 15 gauge
thickness.
Grill: 14 uprights of 5/8" OD × 16 gauge
thickness.
Upright spacing: 5.6".
Feet: flat/bridge/fixed.
Length: 90".
Height: 42".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 15 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 5.6".
Feet: flat/bridge/fixed
Height: 42".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 15 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 5.6".
Feet: flat/bridge/fixed
Length: 90".
Height: 42".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 18 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 4.7".
Feet: flat/bridge/fixed.
Height: 42".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 18 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 4.7".
Feet: flat/bridge/fixed.
Length: 90".
Height: 72".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 18 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 4.7"
Feet: flat/bridge/fixed.
Height: 72".
Main frame: 1-5/8" OD × 16 gauge
thickness.
Grill: 18 uprights of 3/4" OD × 16 gauge
thickness.
Upright spacing: 4.7"
Feet: flat/bridge/fixed.
Length: 98".
Height: 42".
Main frame: 1-1/2" OD × 18 gauge
thickness.
Grill: 18 uprights of 5/8" OD × 18 gauge
thickness.
Upright spacing: 5".
Feet: flat/bridge/fixed.
Height: 42".
Main frame: 1-1/2" OD × 18 gauge
thickness.
Grill: 18 uprights of 5/8" OD × 18 gauge
thickness.
Upright spacing: 5".
Feet: flat/bridge/fixed.
Coating process
If you need more info, please feel free to contact us. →→ →
Contact Us >
DIFFERENT SURFACE TREATMENT
Pre-galvanized – Economical but efficient.
Galvanized steel wires and steel pipes will be welded together and the weld points which the zinc coating is broken during welding will be treated with galvanization spraying. Weld points on the steel pipe will be painted with anti-rust paint and then galvanization spraying. This finish type can ensure at least 42 micron zinc coating thickness, which can satisfy normal applications.
We also offer more color options
Factory inspection
Customer construction
More choices
PANEL
We offer a comprehensive fencing system made of 3D or straight 2D embossed welded panels together with fixing posts and mounting accessories
OF MESH
We offer light and durable fences made of galvanised and PVC-coated woven mesh. Weprovide all the necessary components and accessories to make a fence
GATES AND WICKETS
We manufacture sliding gates, double-leaf gates and wickets with fillings such as: rings, metal board, 3D embossed panel or 2D straight panel.
company information
INFORMATION ABOUT THE COMPANY
HOPE TECHNOLOGY(SHANDONG) CO., LTD has been operating since 2016 and is one of the leaders of the regional metal market. Our aim is to produce metal products of the highest quality and to provide professional service tailored to the needs and expectations of our customers. We place particular emphasis on diversifying our offer and implementing modern business standards.
HOPE TECHNOLOGY has at its disposal a modern machine park armed with advanced production lines, experienced, qualified personnel and an extensive transport base. We use the highest quality raw materials and specialised technological systems. We provide professional consultancy, technical assistance and joint search for optimal solutions for customers. We guarantee attractive prices, punctuality and reliable implementation of the most demanding orders.
If you need more info, please feel free to contact us. →→ →
Contact Us >
FAQ
1.Q: Are the welding points easily to get broken?
A: Please do not worry about it. We will test the tensile strength during the production.
2.Q: Are the fences get rust easily?
A: Before painting,the fences must be sand-blasted and cleaned three times: water cleaning-- parkerising-- water cleaning. The powder we use are Dupont or Aksu which are the international famous brands,to ensure the plastic layer beautiful ,firm and smooth, the surface is resistant to ultraviolet and corrosion.
3.Q:If the quality is not met my request, how do you solve this problem?
First of all, we don’t allow any defective products to leave our factory.We do strict quality inspection in every step and guarantee to reduce the defective rate to less than 0.1%.
But if there is any problem, we will guarantee to solve it within 2 working days after your pictures or videos proof.
4.Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample cost will be refunded after you place the order.
5.Q: How long warranty does your company can provided for fence product?
A: Our product can last for 10 years at least. Usually we will provide 5-10 years guarantee.
6.Q: Can I be your agent?
We warmly welcome all kinds of cooperation, Please emails us for more details.
7.Q: How is your after sale?
After the goods are sent, we will track them in real time and give you timely feedback.
After you receive the goods, we will have a dedicated staff to return visits, if there is a problem, we will reply to you within 2 working days
8.Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
