Quick Details
-
Brand Name:
-
GONOAVA
-
Model Number:
-
EDS-5800T
-
Product name:
-
GONOAVA
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
GONOAVA
-
Model Number:
-
EDS-5800T
-
Product name:
-
GONOAVA

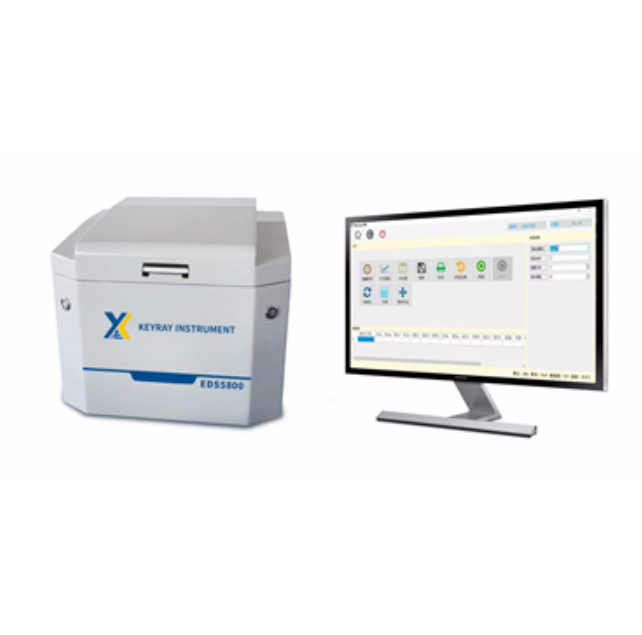

Best price EDS-5800T XRF Precious Metal Analyzer Gold analyzer/XRF Gold tester/XRF metal analyzer gold purity tester
The Principle of Energy Dispersive
X Fluorescence Spectrometer High-energy X-ray stimulates atomic electron shell,the
extranuclear electron of atoms will jump and secondary X-ray energy releases. Because the energy that different element releases possesses different characteristic.
Detection system can measure the energy and quantity to calculate the elements content.
The Main Components
High Voltage-X-Ray Tube-Detector &Pre-Amplifier-Main Amplifier-DPP-Control Module-Communication Module-Display System, etc.
Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.
Fluorescence spectrum analyzers produces provide a detection technology of convenient operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials, and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing process only takes couple of minutes. All the liquid, solid and powder samples are available.
Best price EDS-5800T XRF Precious Metal Analyzer Gold analyzer/XRF Gold tester/XRF metal analyzer gold purity tester
P erformance and C onfiguration
|
Analysis R ange 0.01% to 99.99% Accuracy 0.05% (Au ≥ 96%) Sample F orm Solid, powder, liquid Tube V oltage 5KV ~ 50KV High Voltage Power Supply 0 ~ 50KV Camera HD camera Filters S electable c ustomized switch es Detector T ype P roportional c ounter tube Multichannel A nalyzer Digital multichannel Sample C hamber S ize 31 0 * 27 0 * 9 0 (mm) Test T ime 5 ~ 6 0sec Measuring E lement 20 elements: Au Ag Pt Pd Ir Cu Re Cd Ni Zn Rh Ru Fe Co Os W Pb Sn In Mn Analysis S oftware Keyray q ualitative and quantitative analysis software External D imensions 45 0 * 40 0 * 390 (mm) Weight 36 Kg
|
