Products Description

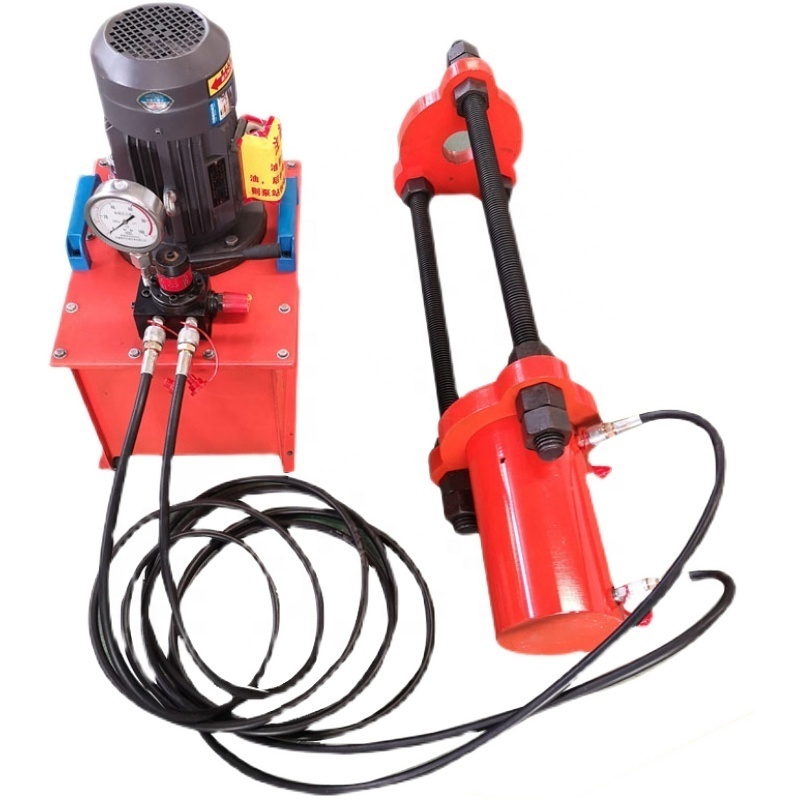

Hydraulic track pin disassembly machine Track disassembly equipment for construction machinery
Portable track pin disassembly machine is a multifunctional engineering machinery maintenance equipment. It is suitable for the disassembly and assembly of various crawler construction machinery and equipment, as well as the disassembly and assembly of various bushings. It is a commonly used equipment for construction machinery maintenance enterprises. You can work on site and in the field anytime, anywhere. Easy to use and smart to operate, this model is divided into electric and manual, users can choose according to their actual situation
Working Principle
Crawler disassembler uses the principle of converting hydraulic energy into mechanical
energy to disassemble and assemble the track pins of crawler excavators. With the company's patented product SYB-2B-1S, the
large-displacement hand pump is used as the power source to make the hydraulic jack move forward quickly, so that the pin can be
removed smoothly. Replace the backward methods of gas cutting and hammering to ensure that the track is intact and not damaged. It
is a tool in the maintenance and assembly of crawler excavators.
Product Paramenters
|
Motor
:
|
1.5kw
|
|
Voltage
:
|
220V
|
|
Pumping station thrust:
|
120 tons
|
|
Working pressure:
|
0-63Mpa
|
|
Working flow:
|
1.2L/min
|
|
Stroke:
|
200mm
|
|
Lead screw:
|
one meter
|
|
Tubing
:
|
5 meters*2
|
|
Fuel tank capacity (L):
|
13L
|
|
Medium:
|
46 hydraulic oil
|
|
Hydraulic cylinder thrust:
|
120T
|
|
Stroke
:
|
200mm
|
