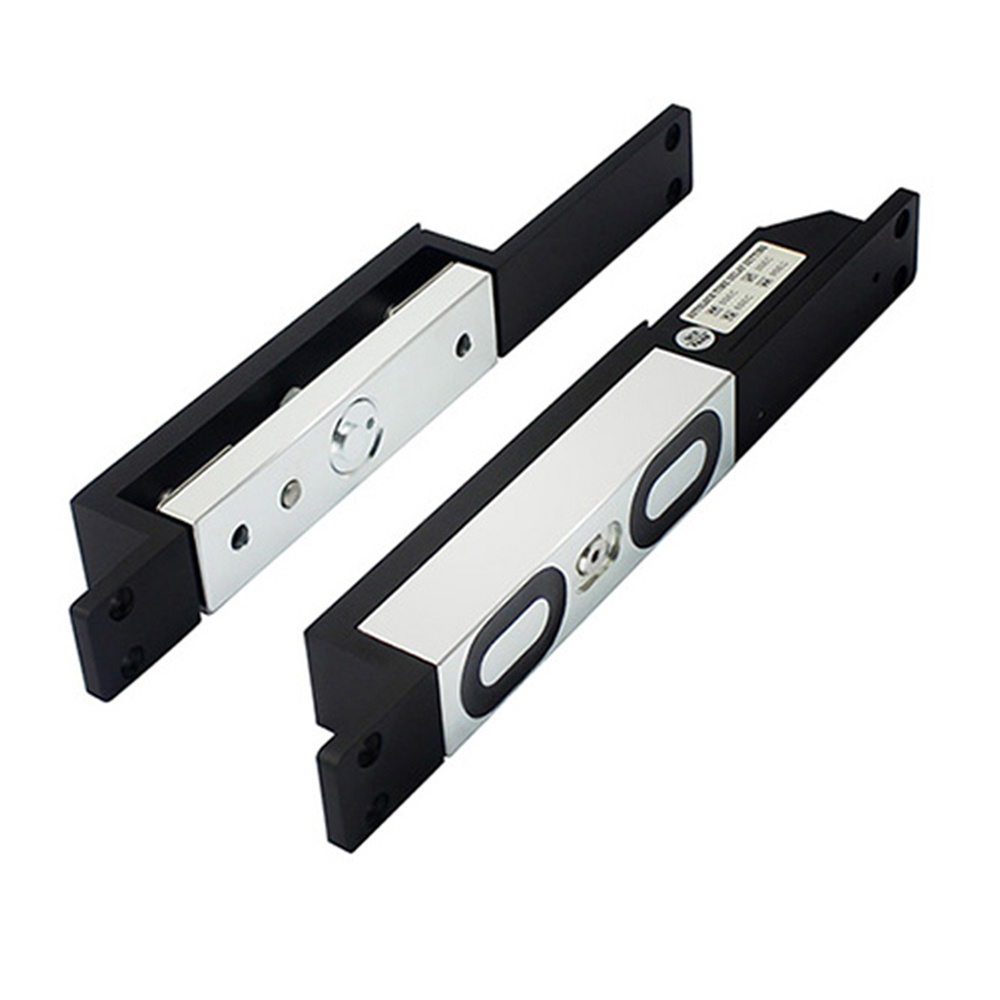

Magnetic Door Lock 1200KG 2600Bls Holding Force Time Delay Concealed Electric Shear Lock

Magnetic Door Lock 1200KG 2600Bls Holding Force Time Delay Concealed Electric Shear Lock

FOB Reference Price: Get Latest Price

≥1 Pieces

US $65

≥50 Pieces

US $60

≥100 Pieces

US $55

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Aluminum Alloy

Holding force:: 2600lbs(1200kg)

Voltage:: 540mA@12VDC

Size:: 267*30*34mm

Current:: 12V/120mA

Time delay:: 0-9 seconds

With delay and Signal Output:: Door status Output,NO/NC/COM

Weight:: 1.75kg

Certification:: CE

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ACM

Product Name:: Single Door 60kg EM lock Magnetic door lock

Material:: Aluminum Alloy

Holding force:: 2600lbs(1200kg)

Voltage:: 540mA@12VDC

Size:: 267*30*34mm

Current:: 12V/120mA

Time delay:: 0-9 seconds

With delay and Signal Output:: Door status Output,NO/NC/COM

Weight:: 1.75kg

Certification:: CE

Product Description

Magnetic Door Lock 1200KG 2600Bls Holding Force Time Delay Concealled Electric Shear Lock

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.

Product Advantage

Specifications:
◆With delay and Signal Output: Door status Output,NO/NC/COM
◆Lock Size: 267L*30W*34H(mm)
◆Armature Plate: 267L*30W*34H(mm)
◆Power Supply: 12V/24V DC
◆Power Consumption(Start current: 1.7A;
◆Standby Current: 540mA@12VDC / 300mA@24VDC)
◆Time delay 0-9 seconds.
◆Powerful shear holding force provides high security.
◆Shear holding force: 2600lbs(1200kg)
◆Compatible with double swing doors.
◆Horizontal or vertical installation.
◆Anti-Residual magnetism design.
◆For example perimeter doors, security doors and gates.
◆Weight: 2.3kg

For double swing doors
Suitable for 90 or 180 degrees double swing doors
Relock function
When the lock is unlocked, it will lock the door automatically according to the program.
Smart circuit design
With time delay function, door signal output and lock signal output
All-metal lock body
With integral profiles and precise work, this lock is stronger and more durable.
Ultra durable electromagnetic design
Professional and durable electromagnetic design with over 500,000 times qualified test.
One-piece and small size
One-piece design and small size, which will be easy to install to any kinds of door frame
With both magnetic and latch design
By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1200kg
Armature plate with guide groove
With guide grooves at both sides of the armature plate
Door/lock status sensor
A set of NO/COM door signal output contact and a set of NO/NC/COM lock signal output contact

Instalation Diagram
