Quick Details
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HENGCHANG
-
Weight:
-
800 KG
Products Description

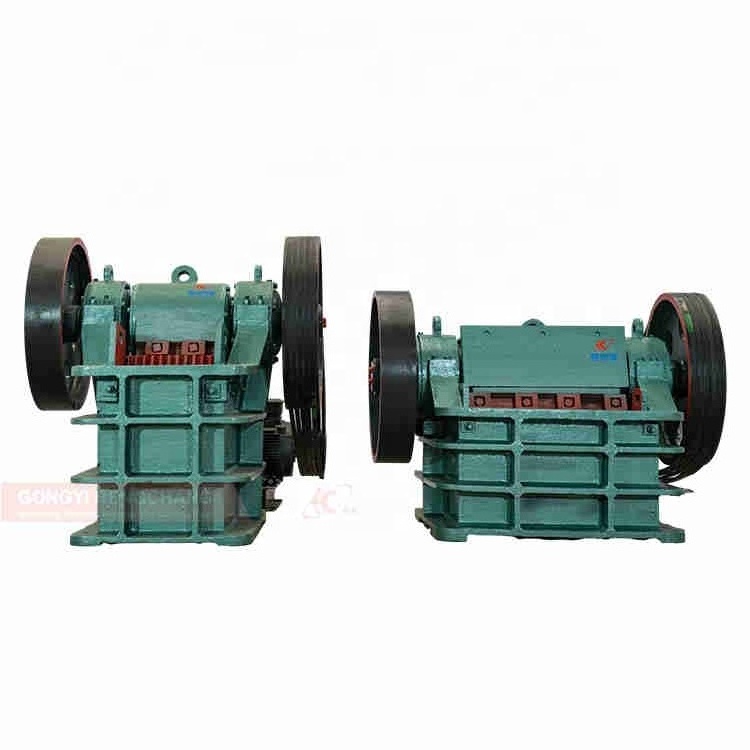

portable mobile diesel engine limestone rock stone crushing machine jaw crusher
According to the width of the feeding port, it is divided into large, medium and small machines. Large machines with the feeding port width of more than 600mm, medium machines with the feeding port width of 300-600mm,small machines with the feeding port width of less than 300mm.
|
Model
|
Max.feed lump size
(mm)
|
Adjustment range(mm)
|
Cpacity
(m³/h)
|
Maine shaft
speed(r/min)
|
Weight
(kg)
|
|
PE150*250
|
125
|
10-40
|
1-3
|
285
|
700
|
|
PE200*300
|
165
|
20-70
|
2-8
|
265
|
800
|
|
PE250*400
|
210
|
20-80
|
5-20
|
310
|
3000
|
|
PE400*600
|
340
|
40-90
|
10-40
|
275
|
7200
|
|
PE350*750
|
290
|
30-55
|
20-50
|
300
|
8900
|
|
PE500*750
|
425
|
50-100
|
34-68
|
275
|
11320
|
|
PE600*900
|
480
|
75-200
|
40-120
|
255
|
17600
|
|
PE750*1060
|
630
|
80-200
|
80-160
|
250
|
30530
|
|
PE900*1200
|
750
|
100-200
|
110-200
|
250
|
50000
|
|
PE1000*1200
|
850
|
195-265
|
315-500
|
200
|
55000
|
|
PE1200*1500
|
1020
|
150-300
|
400-800
|
180
|
100000
|
Products Application
This series of jaw crusher manufacturers is mainly used for rough and moderate broken operations of various ore materials those compressive strength are not more than 320 MPa.
This crusher has features of high broken ratio, uniform product size, simple structure, reliable operation, convenient maintenance, low operating costs etc, which is widely used in mining, smelting,building, roads, railways, water conservancy and chemical industry.
Detailed Images
1.Jaw plate:High manganese steel,high resistance to wear;
2.Structure:Whole welding,firm and durable;
3.Bearing:Self-aligning bearings,strong stability;
4.Control bolt:Adjustable discharge size.
2.Structure:Whole welding,firm and durable;
3.Bearing:Self-aligning bearings,strong stability;
4.Control bolt:Adjustable discharge size.
1.To protect the jaw crusher,please avoid throw the iron into the machine;
2.Ensure the correct running direction,please follow the direction by the arrow;
3.Regularly replace the jaw plate and edge protector,if any wear,please replace it with new one;
4.Regularly lubricate the machine every eight hours.
2.Ensure the correct running direction,please follow the direction by the arrow;
3.Regularly replace the jaw plate and edge protector,if any wear,please replace it with new one;
4.Regularly lubricate the machine every eight hours.
Working Principle
The working mode of the jaw crusher is the curved extrusion type. The working principle is: the motor drives the belt and pulley,and the movable jaw moves up and down through the eccentric shaft.
When the movable jaw rises, the angle between the fixed jaw plate and the movable jaw becomes larger, thereby Push the movable jaw plate to approach the fixed jaw plate, at the same time,the material is crushed or chopped to achieve the purpose of crushing; when the movable jaw goes down, the angle between the fixed jaw plate and the movable jaw becomes smaller, and the movable jaw plate is in the tension rod, spring Under the action of the crusher, it leaves the fixed jaw plate, and the crushed material is discharged from the lower opening of the crushing cavity.
With the continuous rotation of the motor, the crushing jaws perform periodic motions to crush and discharge materials to achieve mass production.
