Quick Details
-
Certificate:
-
ISO9001:2008,CCC,CE
-
power:
-
6W-250W
-
Application:
-
General Machinery
-
Voltage:
-
Single/three-phase 220/380VAC 50/60Hz
-

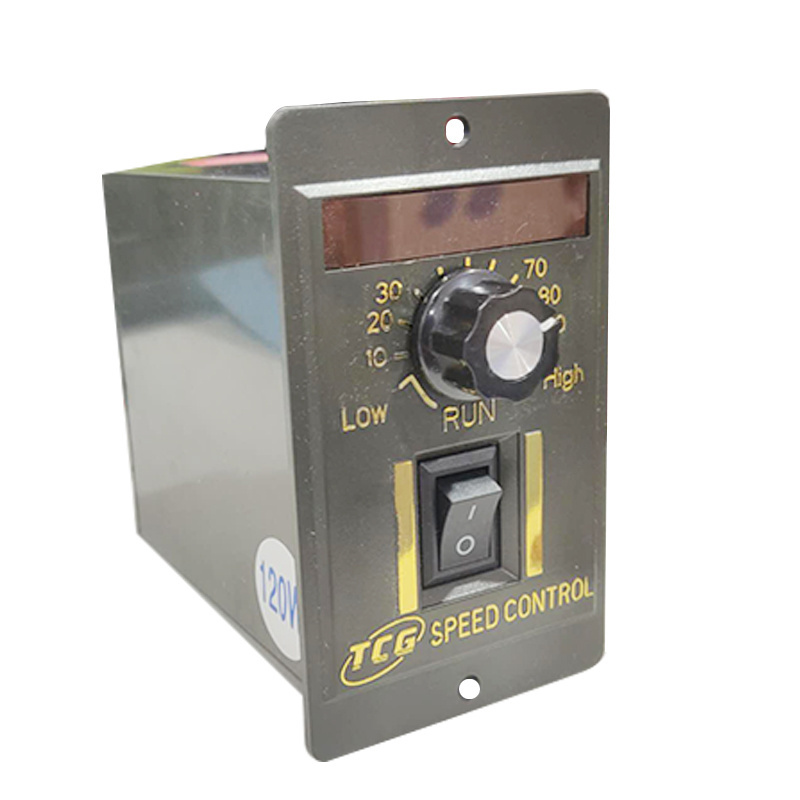

Product name:
-
speed control device
-
Output speed:
-
0~1420rpm
Quick Details
-
Place of Origin:
-
Shenzhen, China
-
Brand Name:
-
TCG
-
Model Number:
-
US52-02
-
Certificate:
-
ISO9001:2008,CCC,CE
-
power:
-
6W-250W
-
Application:
-
General Machinery
-
Voltage:
-
Single/three-phase 220/380VAC 50/60Hz
-
Product name:
-
speed control device
-
Output speed:
-
0~1420rpm
Q: On initial installation, motor fails to start up,what to do?
A:
Likely cause: Motor is incorrectly wired
What to do: Verify that the motor is wired correctly.
Likely cause: No output power from controller
What to do: Measure voltage coming from the controller.
Likely cause:Motor coil burned out
What to do: Disassemble the motor and see if the coil is burned out. May need to replace the motor
Q:
Motor runs in the wrong direction,what to do?
A:
Likely cause: Incorrect wiring
What to do: Interchange the two motor leads.
Q:
Motor runs OK but has a clicking noise,what to do?
A:
Likely cause: Suspected tail speed control coil
What to do: Use a screwdriver to remove the tail screw and re-fix the speed control coil
