Quick Details
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
RisingSun
-
Connection Mode:
-
Radio Frequency
-
Model:
-
RS-DA4
-
Standby time:
-
1-year
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
0-480W
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
RisingSun
-
Connection Mode:
-
Radio Frequency
-
Model:
-
RS-DA4
-
Standby time:
-
1-year
LED Controllers
LED controller is very important and indispensable part of led lighting, it not only can adjust the brightness, but also it
can control the colors changing. And for our customers, you can enjoy the warmth of the light, and adjust it according to
your feelings.
We have a perfect Radio Frequency system, is a wireless home automation system which enables to control multi zones
by one remote with endless receivers in each zone and achieve perfect synchronization, and each receiver can be
controlled by 10 remotes.
We offer our customers with different function controllers like dimming Series; Color Temperature Series; RGB/RGBW/
RGB+CCT Kit Series; Triac / Phase Cut Dimmer Series; 0/1-10V System Series; DALI Series and Power Reapter Series.
Passed CE、ROHS、FCC、CETIC、CB、SAA certificates, well-qualified LED controller.
Widely used in various lighting projects such as buildings, hotels, offices, outdoor lighting, etc.
Passed CE、ROHS、FCC、CETIC、CB、SAA certificates, well-qualified LED controller.
Widely used in various lighting projects such as buildings, hotels, offices, outdoor lighting, etc.

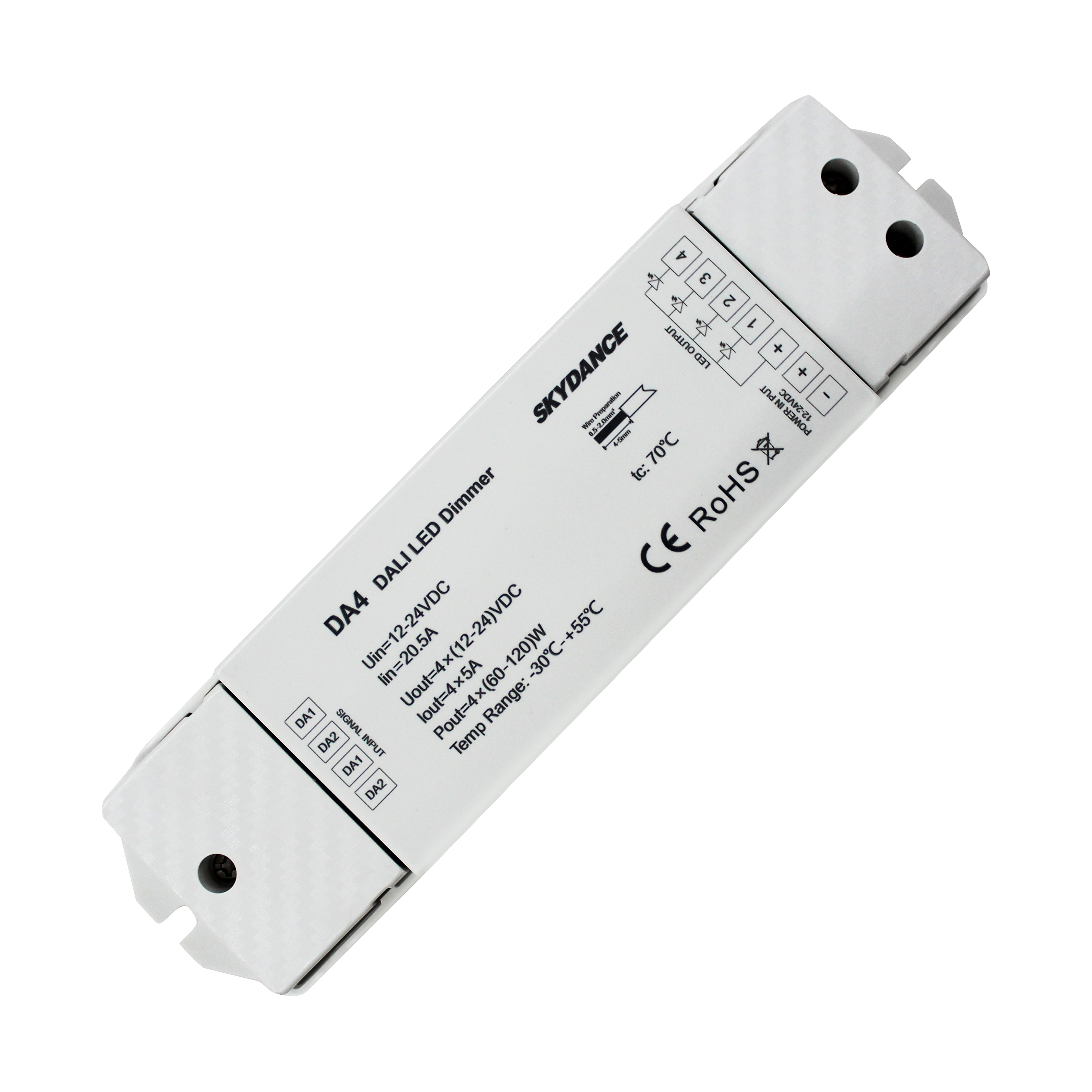

DALI CV Dimmer
:
1. 4 channel constant voltage DALl LED Dimmer, 5A per channel.
2. 4 DALl address, 4 channel work separately.
3. In accordance with DALl standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALl products from
other international incorporation.
4. DALl address will be automatically assigned by DALl master.
5. PWM digital dimming, standard DALl logarithmic dimming curve.
Product Paramenters
|
Model No
|
RS-DA4
|
Brand
|
RisingSun
|
||
|
lnput voltage:
|
12-24VDC
|
Brand
|
6MM
|
||
|
Output power
|
4*(60-120)W
|
|
|
||
|
Output current
|
CH, 5A/CH
|
Waterproof Type
|
IP20/IP54/IP65/IP67/IP68
|
||
|
Input signal
|
DALI
|
Package
|
5M/10M per Roll
|
||
|
PWM Frequency:
|
500Hz
|
Operating Temp
|
-20~+40
|
||
|
lP rating
|
IP20
|
Certification
|
CE, RoHS, UL
|
||
|
Operation Temperature
|
-30℃～+55℃
|
Warranty
|
3 Years
|
||
|
Dimension
|
L175xW45xH27mm
|
|
|
||
|
Weight (N.W.）
|
110g
|
|
|
||
|
Certification
|
CE, EMC,LVD,RED
|
|
|
||
|
Warranty
|
3-5 years
|
|
|
||
Our Advantages
Certifications
Packing & Delivery
Shipping
1. Packaging Detail: box packing according to clients' requirements, OEM and ODM is available;
2.
Delivery Detail
:
2-5days
for samples,
6-10 days
for mass production;
3. Shipping Detail: By express: Such as
DHL,UPS, TNT, FEDEX
ecr;
4. Air Freight When you order moer than 100kg which will be more economical than express;
5. Sea freight: Shipping by SEA is available after customer provide destination port;
6. Agent designated by client: Please tell us the contact details of your shipping agentforwarder.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal: 30% deposits: 70% balance before delivery
2. MOQ: 1pcs,
3. Package Informations: 100rolls per box /The volume of the box is 54cmx30cmx38cm.
