Quick Details
-
Brand Name:
-
NUODI
-
Power:
-
2.2-3kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1350*1030*980mm
-
Application:
-
Cotton Seed Seperator
-
Function:
-
Automatic Cotton Gin Machine
-
Usage:
-
Seed Cotton Ginning Machine
-
Capacity:
-
110kg/h
-
Keywords:
-
cotton seed separating removing machine
-
Suitable for:
-
Separate Unginned Cotton
-
Raw material:
-
Cotton Seeds Ginning Ginned Seeds
-
Hot sell in:
-
Cotton Farms
-
Power supply:
-
Electric Cotton Ginning machine
Quick Details
-
Type:
-
Cotton ginning machine
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NUODI
-
Power:
-
2.2-3kw
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1350*1030*980mm
-
Application:
-
Cotton Seed Seperator
-
Function:
-
Automatic Cotton Gin Machine
-
Usage:
-
Seed Cotton Ginning Machine
-
Capacity:
-
110kg/h
-
Keywords:
-
cotton seed separating removing machine
-
Suitable for:
-
Separate Unginned Cotton
-
Raw material:
-
Cotton Seeds Ginning Ginned Seeds
-
Hot sell in:
-
Cotton Farms
-
Power supply:
-
Electric Cotton Ginning machine
Product Description
1.There are sawtooth cotton ginning machine and roller type cotton ginning machine.
2.The difference between hem is that the roller type cotton ginning machine separates the cotton fiber from the cotton seed by the traction of the roller. The sawtooth gin uses sawtooth to hook the cotton fiber to separate the fiber and cottonseed.
Advantages and disadvantages:
1.The cotton fiber processed by roller gin is longer and tougher than the cotton fiber processed by the sawtooth gin, but there are many impurities. It seems that the gloss is not high.
Principle: Rough but well-arranged rubber rollers pull the cotton fibers off, and a fixed blade separates the fibers and cotton seeds.
2.A large amount of cotton is generally processed by a sawtooth gin in the industry. The cotton fiber processed by a sawtooth gin is shorter than that of a roller gin and has a slightly lower toughness than a roller gin. However, it has less impurities and looks high gloss.
Principle: There are dozens of circular saw blades installed in the gin, and the fine serrations hook the cotton fiber off, and the fiber and cotton seed are separated by a fan.
|
Model
|
ND-RYH20A
|
ND-RYH50A
|
ND-RYH80A
|
ND-RYH100A
|
|
Capacity
|
10-20kg/h
|
30-60kg/h
|
60-80kg/h
|
110kg/h
|
|
Cotton ginning power
|
0.37kw
|
1.5-2.2kw
|
2.2-3kw
|
2.2-3kw
|
|
Speed
|
1440rpm
|
1440rpm
|
1400rpm
|
1440rpm
|
|
Roller size
|
115*205mm
|
140*505mm
|
150*805mm
|
160*1005mm
|
|
Seed breaking rate
|
<=2%
|
<=2%
|
<=2%
|
<2%
|
|
Rollers speed ratio
|
1:3:9
|
1:3:10
|
1:3:14
|
1:3.6:10.8
|
|
Weight
|
55kg
|
220kg
|
260kg
|
280kg
|
|
Size(mm)
|
450*450*740
|
1020*850*970
|
1250*950*980
|
1350*1030*980
|
Details Images

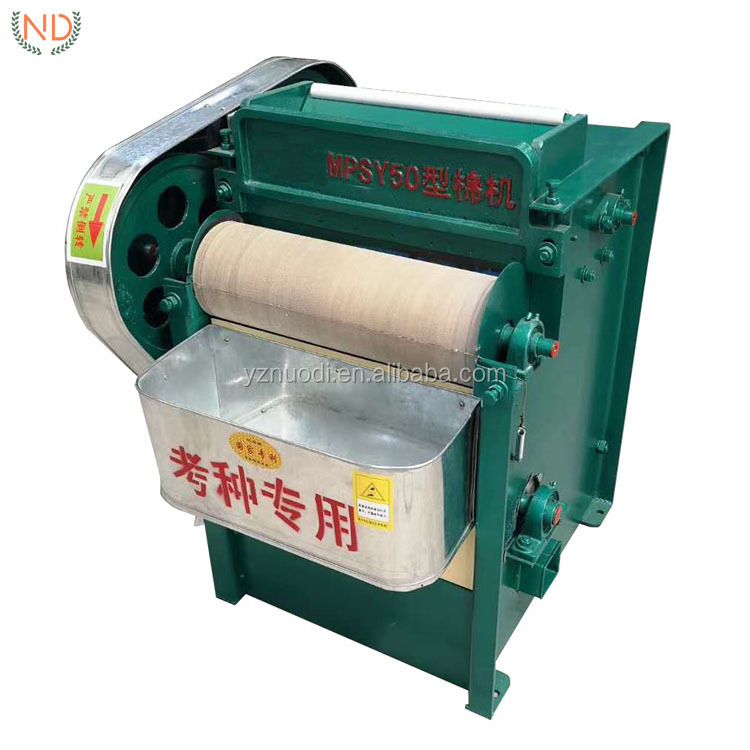

A.Roller type cotton ginning machine
Model 20
Model 50
Model 80
Model 100
B.Sawtooth type cotton ginning machine
Both 20pcs and 40pcs blades are available.
