- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
3800*1700*2250mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Model:
-
HQZ220L
-
Product name:
-
pneumatic drill rig for rocky water well
-
Drilling dia.:
-
130-254mm
-
Drilling depth:
-
220m
-
Drill Mast:
-
3m
-
Chassis:
-
Rubber track
-
Drill pipe diameter:
-
76/89mm
-
Rotating speed:
-
45-65rpm
-
Rotary torque:
-
4000-4600N.m
-
One time advance length of the drill:
-
3.6m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3800*1700*2250mm
-
Weight:
-
4500 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Model:
-
HQZ220L
-
Product name:
-
pneumatic drill rig for rocky water well
-
Drilling dia.:
-
130-254mm
-
Drilling depth:
-
220m
-
Drill Mast:
-
3m
-
Chassis:
-
Rubber track
-
Drill pipe diameter:
-
76/89mm
-
Rotating speed:
-
45-65rpm
-
Rotary torque:
-
4000-4600N.m
-
One time advance length of the drill:
-
3.6m
200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig machine driven by diesel engine for sale
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Description

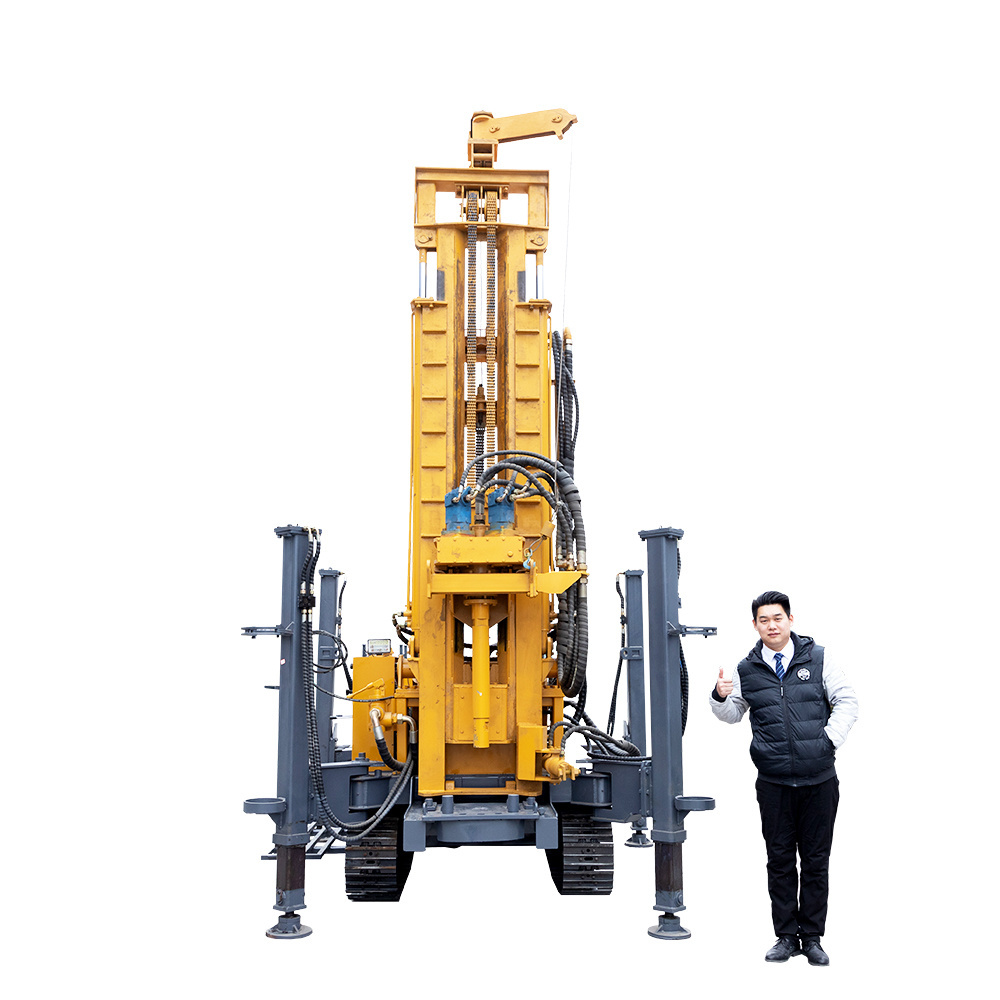

HW PNEUMATIC AIR COMPRESSOR DRILLING RIG
HQZ150L (CRAWLER TYPE)
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HQZ150L (CRAWLER TYPE)
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
|
Mud pump hammer air compressor drill rig for rock mine
|
|
|
|
|
|
|
||||||
|
Model
|
HQZ160L
|
HQZ180L
|
HQZ260L
|
HQZ320L
|
HQZ400L
|
HQZ500L
|
||||||
|
Overall weight (T)
|
2.6
|
4.5
|
4.8
|
9
|
10
|
11.5
|
||||||
|
Dimension (mm )
|
2300*1200*1900
|
3500*1700*2250
|
3900*1850*2350
|
5300*2200*2800
|
5400*2200*2870
|
6000*2200*2950
|
||||||
|
Drilling diameter(mm )
|
138-203
|
130-254
|
130-305
|
130-325
|
130-325
|
130-350
|
||||||
|
Drilling depth(m)
|
160
|
180
|
260
|
320
|
400
|
500
|
||||||
|
One-time advance length of the drill(mm)
|
2000
|
3600
|
3600
|
6600
|
6600
|
6600
|
||||||
|
Traveling speed(km/h )
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
||||||
|
Climbing ability(max )
|
30
|
30
|
30
|
30
|
30
|
30
|
||||||
|
Minimum Ground Clearance(mm)
|
250
|
250
|
250
|
230
|
300
|
350
|
||||||
|
Working Air Pressure(mpa )
|
1.45 - 2.5
|
1.45-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption
|
15 - 27
|
17 - 31
|
17-31
|
17-35
|
17-35
|
17-42
|
||||||
|
Main machine power(kw)
|
73 /Yuchai
|
42/ Yunnei
|
76/Yunnei
|
85/Yuchai
|
110/Yuchai
|
115/Yuchai
|
||||||
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig machine driven by diesel engine for sale
Detailed Images
Features of air compressor water well drill rig
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig machine driven by diesel engine for sale
Packing&Shipping
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
double hydraulic motor hammer air compressor drill rig for rocky mine
