Quick Details
-
the maximum load:
-
500N
-
resolution:
-
0.01N
-
accuracy:
-
± 0.5%
-
output interface:
-
RS 232 nine-hole socket.
-
stability: temperature drift:
-
0.2uV / ° C (0 ~ 60 ° C)
-
calibration range:
-
full scale calibration
-
Ambient temperature:
-
0 to +60 °C
-
Ambient humidity:
-
≤ 80%.
-
allow overload:
-
150%.
-
Warranty1:
-
1 year
Quick Details
-
Power:
-
Electronic
-
Use:
-
Terminal pull test
-
Place of Origin:
-
Jiangsu, China
-
the maximum load:
-
500N
-
resolution:
-
0.01N
-
accuracy:
-
± 0.5%
-
output interface:
-
RS 232 nine-hole socket.
-
stability: temperature drift:
-
0.2uV / ° C (0 ~ 60 ° C)
-
calibration range:
-
full scale calibration
-
Ambient temperature:
-
0 to +60 °C
-
Ambient humidity:
-
≤ 80%.
-
allow overload:
-
150%.
-
Warranty1:
-
1 year
Electronic universal cable wire terminal tensile strength testing machine digital display pull insertion force testing machine
YH-500N Introduction

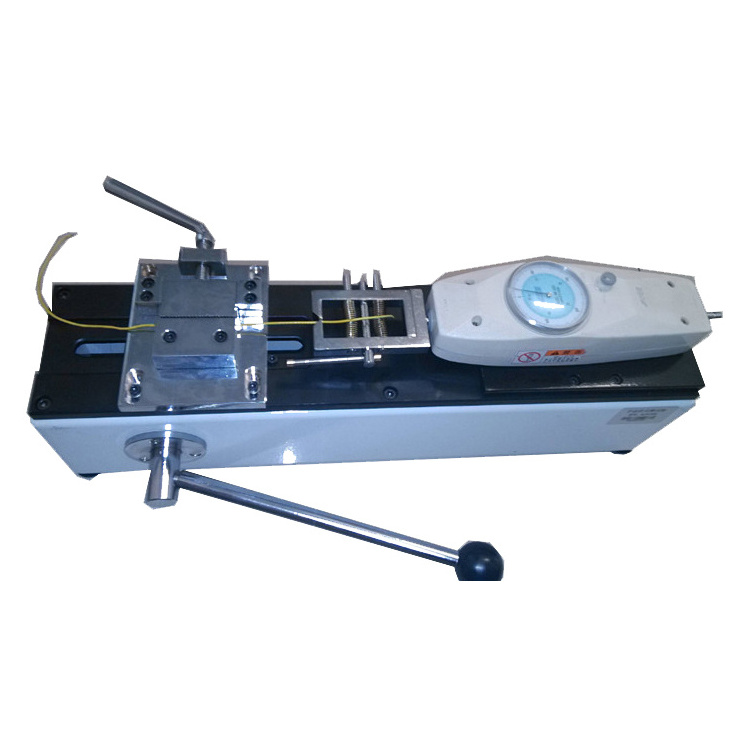

The terminal pull tester is a push-pull load test bench for the pull meter. The AEH
electric horizontal tension test bench adopts double guide structure, which has the
advantages of good stability, wide application range and convenient use, and has
stepless speed regulation, digital display test speed, manual (jog) and automatic
control switching function. The number of reciprocating tests is preset, and the
automatic stop load value can be preset. AEH digital display terminal pull tester is
suitable for all kinds of push-pull load, insertion force, fatigue test, damage test and
other tests.
| Model | YH-500T |
| the maximum load | 500N (Kg, N and ib three units can be automatically converted) |
| resolution | 0.01N. |
| accuracy | ± 0.5% |
| output interface | RS 232 nine-hole socket. |
| power supply | charging power: 220V / AC; battery continuous working time: 6 ~ 8 hours |
| stability | temperature drift: 0.2uV / ° C (0 ~ 60 ° C); zero drift: ≤ 0.1% / 8 hours / FS. |
| calibration range | full scale calibration |
| Ambient temperature | 0 to +60 °C. |
| Ambient humidity | ≤ 80%. |
| Allow overload | 150% |
