- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
6x6
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Top Brand
-
Place of Origin:
-
Shanghai, China
-
Engine Brand:
-
Top Brand
-
Gear Box Brand:
-
Top Brand
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
10690*3370*3793mm
-
Cargo Tank Dimension:
-
8860*3275*3740mm
-
Wheelbase front-mid:
-
4450mm
-
Wheelbase mid-rear:
-
1940mm
-
Payload:
-
39000kg
-
Curb Weight:
-
34000kg
-
Max Torque:
-
2300/1300Nm/rpm
-
Tires:
-
29.5R25
-
Max Grade ability:
-
45%
-
Hoist Time:
-
12s
-
Hoist Angle:
-
70°
-
Minimum Ground Clearance:
-
565mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
451 - 500hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
6x6
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Top Brand
-
Place of Origin:
-
Shanghai, China
-
Engine Brand:
-
Top Brand
-
Gear Box Brand:
-
Top Brand
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
10690*3370*3793mm
-
Cargo Tank Dimension:
-
8860*3275*3740mm
-
Wheelbase front-mid:
-
4450mm
-
Wheelbase mid-rear:
-
1940mm
-
Payload:
-
39000kg
-
Curb Weight:
-
34000kg
-
Max Torque:
-
2300/1300Nm/rpm
-
Tires:
-
29.5R25
-
Max Grade ability:
-
45%
-
Hoist Time:
-
12s
-
Hoist Angle:
-
70°
-
Minimum Ground Clearance:
-
565mm
Contact
Sales Manager
Vera Pei
Newindu International Ltd.
www.newindu.com
Wechat/Mobile/WhatsApp: +86 17717086867
Vera Pei
Newindu International Ltd.
www.newindu.com
Wechat/Mobile/WhatsApp: +86 17717086867

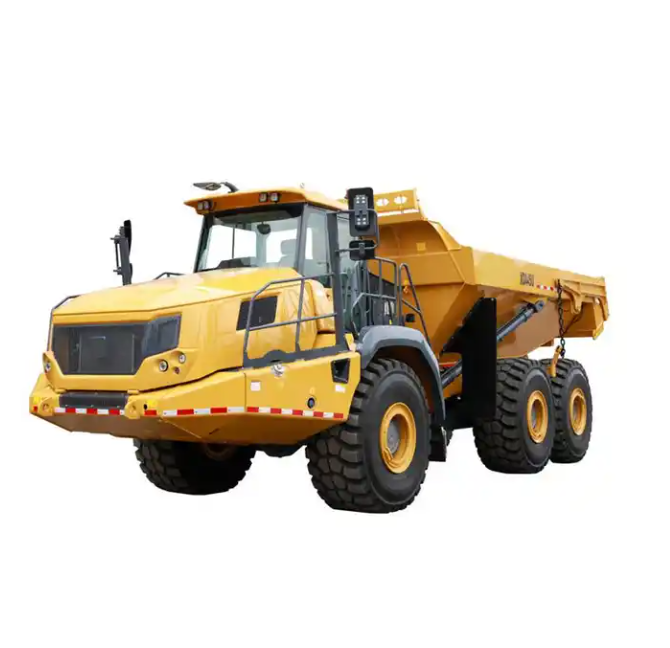

Underground 40Ton Small Mine Dump Truck 6x6 XDA40 With Spare Parts
Products Description
* High Performance Engine
The combination of strong power and outstanding vehicle performance provides higher productivity with less cost.
* Reliable Brake System
The combination of strong power and outstanding vehicle performance provides higher productivity with less cost.
* Reliable Brake System
XDA40 adopts self oil cooled disc brakes system, ensure this Vehicle highly reliable and long lifetime.
Even in the muddy road, XDA40 also function as a highly responsive. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
* Advance Driven System
Even in the muddy road, XDA40 also function as a highly responsive. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
* Advance Driven System
Multifunction transmission integrated with a variable torque converter having locking function, integrated hydraulic retarder unit, advanced performance and reliability. Gearbox shaft differential lock drive with higher ability. The middle and rear drive shaft linked, real- time driving; wheel differential lock to effectively deal with the bad road.
Specification
|
Item
|
|
|
Unit
|
Parameter
|
||
|
Dimension
|
Overall Length
|
|
mm
|
10690
|
||
|
|
Overall Width
|
|
mm
|
3370
|
||
|
|
Overall Height
|
|
mm
|
3793
|
||
|
|
Wheelbase front-mid
|
|
mm
|
4450
|
||
|
|
Wheelbase mid-rear
|
|
mm
|
1940
|
||
|
|
Tire center distance
|
Front
|
mm
|
2600
|
||
|
|
|
Mid & Rear
|
mm
|
2600
|
||
|
Weight
|
Total Weight
|
|
kg
|
73000
|
||
|
|
Payload
|
|
kg
|
39000
|
||
|
|
Curb Weight
|
|
kg
|
34000
|
||
|
Weight Distribution
|
Unload
|
Front
|
kg
|
17000 (50%)
|
||
|
|
|
Mid & Rear
|
kg
|
17000 (50%)
|
||
|
|
Loaded
|
Front
|
kg
|
21600 (29.6 %)
|
||
|
|
|
Mid & Rear
|
kg
|
51400 (70.4%)
|
||
|
Power Train
|
Engine
|
|
/
|
Benz OM502
|
||
|
|
Rated Power
|
|
kW/HP/rpm
|
350/1800
|
||
|
|
Max Torque
|
|
Nm/rpm
|
2300/1300
|
||
|
|
Drive
|
|
/
|
6×6
|
||
|
|
Tires
|
|
/
|
29.5R25
|
||
|
Driving Performance
|
Max speed
|
|
km/h
|
60
|
||
|
|
Min Turning Clearance
|
|
mm
|
8865
|
||
|
|
Max Grade ability
|
|
%
|
45
|
||
|
|
Max Steering Angle
|
|
°
|
±45
|
||
|
|
Minimum Ground Clearance
|
|
mm
|
565
|
||
|
Working Parameter
|
Loading Height
|
|
mm
|
3180
|
||
|
|
Hoist Time
|
|
s
|
12
|
||
|
|
Hoist Angle
|
|
°
|
70
|
||
|
Service Capacities
|
Fuel
|
|
L
|
550
|
||
|
|
Hydraulic Oil
|
|
L
|
300
|
||
|
|
Engine Oil
|
|
L
|
60
|
||
|
|
Cooling system
|
|
L
|
240
|
||
|
|
Axles-Wheel Gear Oil (Each)
|
|
L
|
11.5
|
||
|
|
Axles-differential (Each)
|
|
L
|
33
|
||
