Quick Details
-
Printing Type:
-
Any Printing Machine
-
Weight (KG):
-
4.1
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
China
-
Brand Name:
-
XTEC
-
Measurement accuracy:
-
<±1 Newton
-
Sampling speed:
-
100 millisecond
-
Main output mode:
-
DC 0-2A Constant current output (adapted load impedance 8-12Ω)
-
Auxiliary output:
-
DC 0-5V(MAX 10MA)Analog signal output
-
Dimensions:
-
W245xH155xD140(mm)
-
Installation size:
-
W230xH150xD120(mm)
-
Power:
-
AC 180-245V 50/60Hz
Quick Details
-
Condition:
-
New
-
Type:
-
auto Tension Controller
-
Use:
-
Any Brand Machine
-
Printing Type:
-
Any Printing Machine
-
Weight (KG):
-
4.1
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
China
-
Brand Name:
-
XTEC
-
Measurement accuracy:
-
<±1 Newton
-
Sampling speed:
-
100 millisecond
-
Main output mode:
-
DC 0-2A Constant current output (adapted load impedance 8-12Ω)
-
Auxiliary output:
-
DC 0-5V(MAX 10MA)Analog signal output
-
Dimensions:
-
W245xH155xD140(mm)
-
Installation size:
-
W230xH150xD120(mm)
-
Power:
-
AC 180-245V 50/60Hz

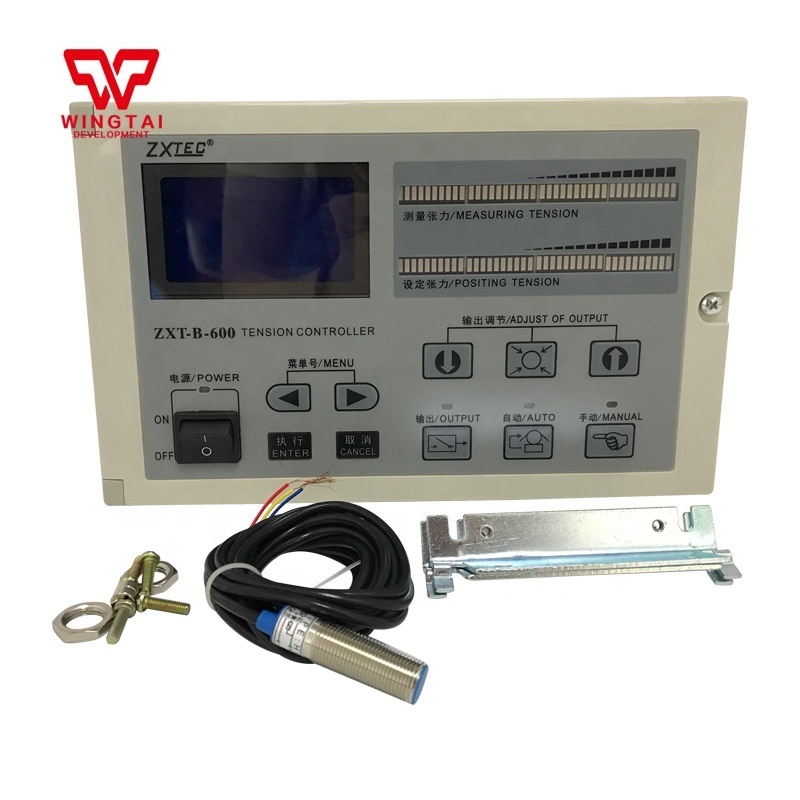

ZXT-B-600/ ZXT-B-1000 China Tension Controller
M ade in China
Model: ZXT-B-600/ ZXT-B-1000
P roduct manual:
ZXT-B full digital high precision automatic constant tension controller, mainly composed of tension detector, high precision A / D, D / A converter, high performance microcontroller. The automatic constant tension controller compares the tension of the coil material with the set target tension according to the tension detector, and automatically adjusts the D/A output by the PID calculation of the single chip microcomputer to change the magnetic powder clutch, the excitation current of the brake or the servo motor. The torque is used to achieve the constant tension of the coil material, and can be widely used in various occasions where the tension is precisely measured and controlled, and has flexibility and wide applicability.
- LCD display can be displayed in Chinese or English
- Automatic and manual switching is simple and convenient
- Tension detector wiring is simple and convenient
- Convenient parameter settings
- With double station shaft output function
Parameter:
|
Measurement accuracy: |
<±1 Newton |
|
Sampling speed: |
100 millisecond |
|
Main output mode: |
DC 0-2A Constant current output (adapted load impedance 8-12Ω) |
|
Auxiliary output: |
DC 0-5V(MAX 10MA)Analog signal output |
|
Dimensions: |
W245×H155×D140(mm) |
|
Installation size: |
W230×H150×D120(mm) |
|
Power: |
AC 180-245V 50/60Hz |
