2. Cell phones and other mobile devices: Bluetooth is widely used in cell phones and other mobile devices. It can be used to connect external devices such as Bluetooth headphones, speakers, keyboards, mice, etc. to realize wireless control and data transmission.
3. Automobiles and in-vehicle systems: Bluetooth technology in modern automobiles enables drivers to connect wirelessly with in-vehicle systems. Through Bluetooth, it is possible to realize seamless connection between cell phones and in-car audio, hands-free calling and music playback.
4. Home automation and IoT: Bluetooth is widely used in home automation and IoT devices. For example, through a Bluetooth connection, devices such as smart light bulbs, smart door locks, smart home appliances, etc. can be remotely controlled to realize an intelligent home experience.
5. Health and Sports Devices: The application of Bluetooth technology in health and sports devices is becoming more and more common. For example, devices such as smart bracelets and smart watches can synchronize data with cell phones or computers via Bluetooth to achieve health monitoring and sports tracking functions.
6. Data transfer and file sharing: Bluetooth can be used for data transfer and file sharing between cell phones and computers. With a Bluetooth connection, files can be sent and received quickly and easily without the need for a data cable or Internet connection.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Bluetooth 4.1/5.0/5.1/5.3, LOGIC ICS
-
Country of Origin:
-
USA
-
Brand:
-
Qualcomm
-
Product name:
-
Bluetooth Chip
-
Product Description:
-
Bluetooth 5.3 Class 1.5 Module
-
Function:
-
APTX-HD APTX I2S IIS SPDIF
-
Voltage:
-
2.8~4.2V
-
Temperature:
-
-10~+70℃
-
Support:
-
OEM ODM
Quick Details
-
Model Number:
-
AI-Qualcomm chip series
-
Chipset:
-
Qualcomm chip series
-
Application:
-
IOT Bluetooth Communication
-
Type:
-
Bluetooth 4.1/5.0/5.1/5.3, LOGIC ICS
-
Country of Origin:
-
USA
-
Brand:
-
Qualcomm
-
Product name:
-
Bluetooth Chip
-
Product Description:
-
Bluetooth 5.3 Class 1.5 Module
-
Function:
-
APTX-HD APTX I2S IIS SPDIF
-
Voltage:
-
2.8~4.2V
-
Temperature:
-
-10~+70℃
-
Support:
-
OEM ODM
PRODUCT INFORMATION
|
Product Name
|
Bluetooth Modules Qualcomm Chip
|
|
Applications
|
Wireless headsets and audio devices; Cell phones and other mobile devices; Automobiles and in-vehicle systems; Home automation and IoT; Health and Sports Devices; Data transfer and file sharing.
|
|
Support
|
OEM ODM
|
|
Package
|
Original Standard Factory Package
|
Features
Qualified to Bluetooth v5.3 specification
Dual 240 MHz Qualcomm® Kalimba™ audio DSP
32/80 MHz Developer Processor for applications
Firmware Processor for system
Flexible QSPI flash programmable platform
High-performance 24-bit stereo audio interface
Digital and analog microphone interfaces
Flexible PIO controller and LED pins with PWM support
Serial interfaces: UART, Bit Serializer (I²C/SPI), USB 2.0
Advanced audio algorithms
Active Noise Cancellation:Hybrid, Feedforward, and Feedback modes, using Digital or Analog Mics, enabled using license keys available from Qualcomm®
Qualcomm® aptX™ and aptX HD Audio
aptX Adaptive, enabled using license key
Qualcomm® cVc™ Noise Cancellation Technology,enabled using license key
Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger
99-ball 4.930 mm x 3.936 mm x 0.57 mm, 0.4 mm pitch WLCSP
Application subsystem
Dual-core application subsystem 32/80MHz operation
32-bit Firmware Processor (reserved for system use) executes:
Bluetooth upper stack
Profiles
House-keeping code
32-bit Developer Processor executes:
Developer applications
Both cores execute code from external flash memory using QSPI clocked at 32 MHz or 80 MHz
On-chip caches per core enable optimized performance and power consumption
Bluetooth subsystem
Qualified to Bluetooth v5.3 specification including 2 Mbps Bluetooth Low Energy and Bluetooth Low Energy Isochronous Channels
Qualcomm® Bluetooth High Speed Link
Single ended antenna connection with on-chip balun and Tx/Rx switch
Bluetooth, Bluetooth Low Energy, and mixed topologies supported
Class 1 support
Applications
Wired/wireless stereo headsets/headphones
Qualcomm TrueWireless™ stereo earbuds
Qualified to Bluetooth v5.3 specification
Dual 240 MHz Qualcomm® Kalimba™ audio DSP
32/80 MHz Developer Processor for applications
Firmware Processor for system
Flexible QSPI flash programmable platform
High-performance 24-bit stereo audio interface
Digital and analog microphone interfaces
Flexible PIO controller and LED pins with PWM support
Serial interfaces: UART, Bit Serializer (I²C/SPI), USB 2.0
Advanced audio algorithms
Active Noise Cancellation:Hybrid, Feedforward, and Feedback modes, using Digital or Analog Mics, enabled using license keys available from Qualcomm®
Qualcomm® aptX™ and aptX HD Audio
aptX Adaptive, enabled using license key
Qualcomm® cVc™ Noise Cancellation Technology,enabled using license key
Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger
99-ball 4.930 mm x 3.936 mm x 0.57 mm, 0.4 mm pitch WLCSP
Application subsystem
Dual-core application subsystem 32/80MHz operation
32-bit Firmware Processor (reserved for system use) executes:
Bluetooth upper stack
Profiles
House-keeping code
32-bit Developer Processor executes:
Developer applications
Both cores execute code from external flash memory using QSPI clocked at 32 MHz or 80 MHz
On-chip caches per core enable optimized performance and power consumption
Bluetooth subsystem
Qualified to Bluetooth v5.3 specification including 2 Mbps Bluetooth Low Energy and Bluetooth Low Energy Isochronous Channels
Qualcomm® Bluetooth High Speed Link
Single ended antenna connection with on-chip balun and Tx/Rx switch
Bluetooth, Bluetooth Low Energy, and mixed topologies supported
Class 1 support
Applications
Wired/wireless stereo headsets/headphones
Qualcomm TrueWireless™ stereo earbuds

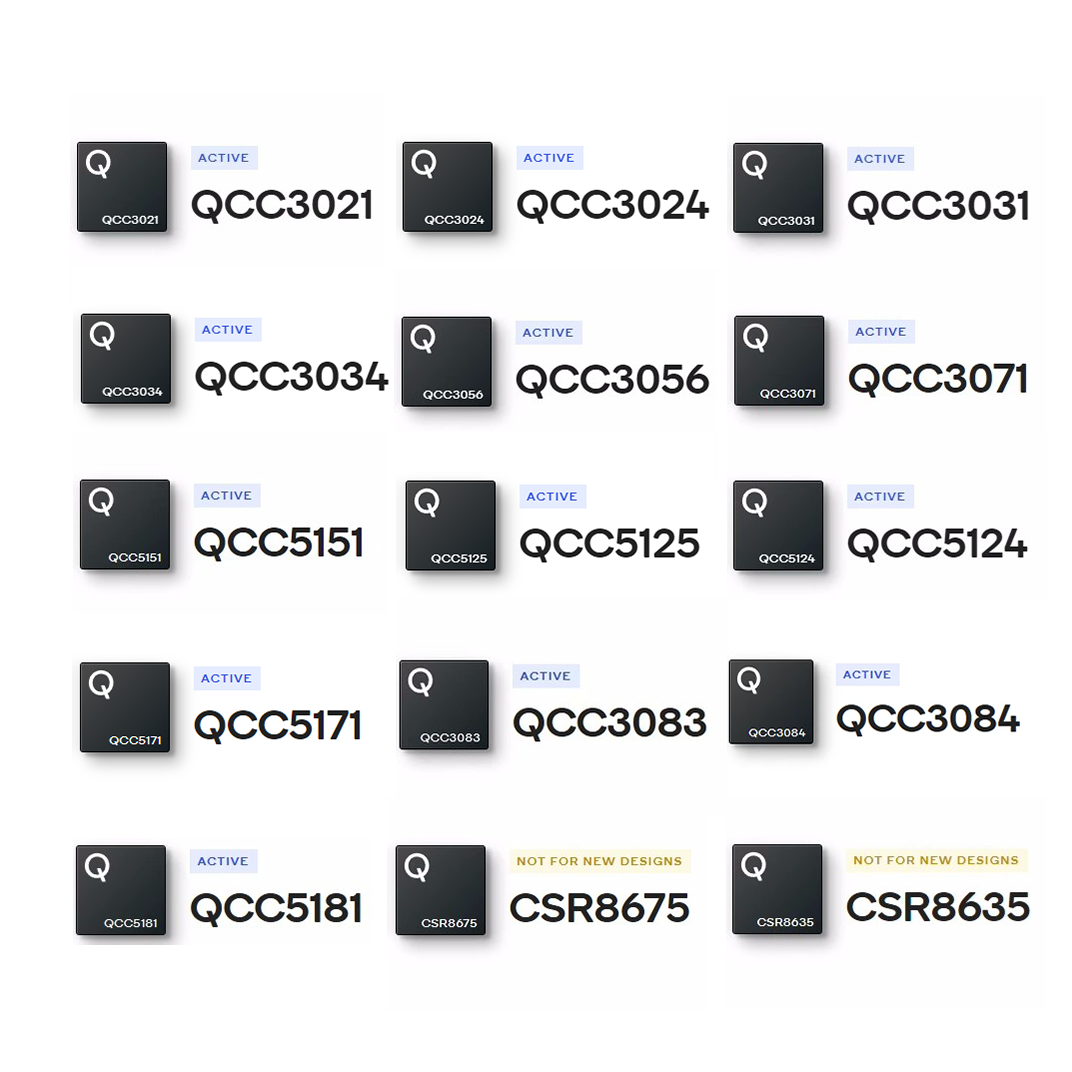

PRODUCT SHOW
PRODUCT USAGE
Bluetooth is a wireless communication technology that is capable of connecting and transmitting data over short distances.
Bluetooth technology has a wide range of product applications for wireless communication and data transfer needs in a variety of scenarios. It can realize wireless connection, data sharing and control between devices, bringing users a more convenient and flexible experience.
1. Wireless headsets and audio devices: Bluetooth technology is widely used in wireless headsets and audio devices. For example, Bluetooth headphones can be connected to smartphones, computers or other Bluetooth audio sources to provide a convenient wireless music playback and calling experience.
