Quick Details
-
Voltage:
-
50hz/60hz, 3ph&1ph
-
Weight:
-
10000 KG
-
Dimension(L*W*H):
-
upon equipment model
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
CANGAS hydrogen Generator
-
Hydrogen Purity:
-
99%-99.999%
-
Hydrogen Flow:
-
1-2000Nm^3/h
-
Hydrogen Dew Point:
-
-70℃
-
Hydrogen Delivery Pressure:
-
<8bar/customized
-
Service life:
-
More than 15 years
-
Standard:
-
GB/ASME/customized
-
Type:
-
Skid Mounted/Containerized
-
Application:
-
Fuel cell Green Ammonia
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CANGAS
-
Production Rate:
-
200Nm^3/h
-
Voltage:
-
50hz/60hz, 3ph&1ph
-
Weight:
-
10000 KG
-
Dimension(L*W*H):
-
upon equipment model
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
CANGAS hydrogen Generator
-
Hydrogen Purity:
-
99%-99.999%
-
Hydrogen Flow:
-
1-2000Nm^3/h
-
Hydrogen Dew Point:
-
-70℃
-
Hydrogen Delivery Pressure:
-
<8bar/customized
-
Service life:
-
More than 15 years
-
Standard:
-
GB/ASME/customized
-
Type:
-
Skid Mounted/Containerized
-
Application:
-
Fuel cell Green Ammonia
Product Description
Hydrogen recovery plant by PSA technology
Pressure Swing Adsorption (PSA) technology has been widely used in the field of industrial gas separation due to its high
automation, simple operation and good environment. Through years of research, test and operation of pressure swing adsorption, a complete set of hydrogen purification technologies in various hydrogen-rich gas sources has been developed to provide customers with upgrading and upgrading services.
automation, simple operation and good environment. Through years of research, test and operation of pressure swing adsorption, a complete set of hydrogen purification technologies in various hydrogen-rich gas sources has been developed to provide customers with upgrading and upgrading services.
Sometimes ,
the use of membrane technology for hydrogen concentrating enables to obtain up to 90-99.9% hydrogen-rich gas stream before PSA units.
Membrane hydrogen concentration units are frequently applicable where deployment of equipment based on other
technologies is impracticable or inefficient from technical and economic standpoint.

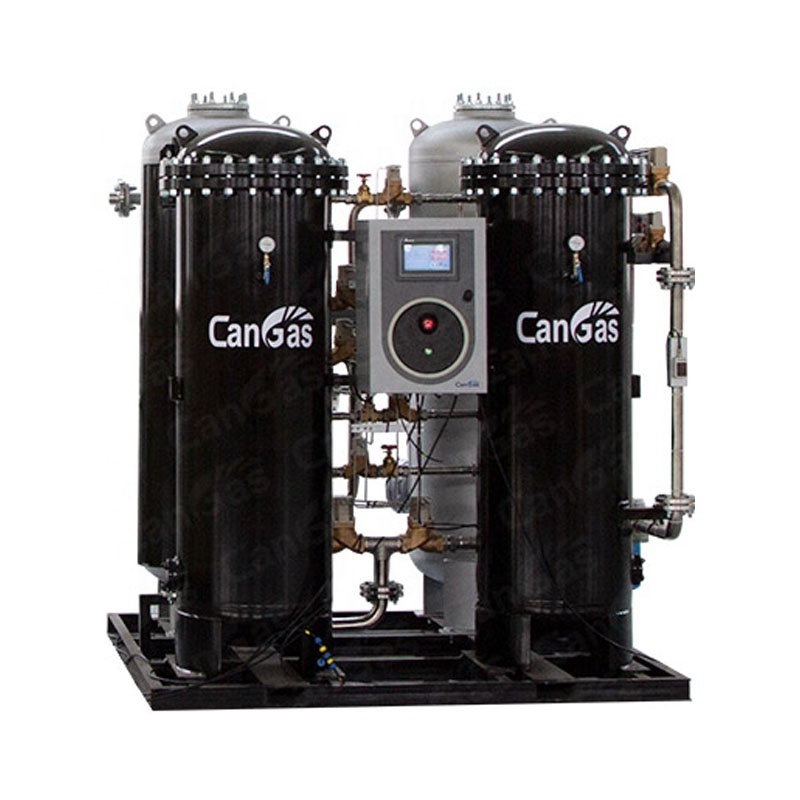

CAN GAS CAPH series PSA Hydrogen Gas Purifier
CANGAS PSA( pressure swing adsorption) on-site hydrogen generator -product gas technical indicators:
Hydrogen flow rate:100-80000Nm3/h
Hydrogen purity: ≥97%~99.999%
Hydrogen dew point:-20~-80℃
Hydrogen outlet pressure: 0.2~4.0Mpa (adjustable)
Hydrogen Generator type: PSA H2 generator , Membrane nitrogen purifier , Water electrolysis; Skid mounted type ,small box type ,container type, trailer type, truck type .
CANGAS PSA( pressure swing adsorption) on-site hydrogen generator -product gas technical indicators:
Hydrogen flow rate:100-80000Nm3/h
Hydrogen purity: ≥97%~99.999%
Hydrogen dew point:-20~-80℃
Hydrogen outlet pressure: 0.2~4.0Mpa (adjustable)
Hydrogen Generator type: PSA H2 generator , Membrane nitrogen purifier , Water electrolysis; Skid mounted type ,small box type ,container type, trailer type, truck type .
Working Principle
