Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LJXH
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.1 KG
-
Working Temperature Range:
-
70 - 200 ℃
-
Core Components:
-
PTC heating element
-
Product name:
-
PTC Heating Element
-
Heat Material:
-
PTC Thermistor
-
Size:
-
150x30(28.5)x5mm(LxWxT)
-
Temperature:
-
70-200 degrees
-
Lead Wire Length:
-
about 10cm
-
Shell Material:
-
High Temperature insulating film
-
Usage:
-
PTC heater for yoghurt machine, Instrumentation dehumidification
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
12/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LJXH
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.1 KG
-
Working Temperature Range:
-
70 - 200 ℃
-
Core Components:
-
PTC heating element
-
Product name:
-
PTC Heating Element
-
Heat Material:
-
PTC Thermistor
-
Size:
-
150x30(28.5)x5mm(LxWxT)
-
Temperature:
-
70-200 degrees
-
Lead Wire Length:
-
about 10cm
-
Shell Material:
-
High Temperature insulating film
-
Usage:
-
PTC heater for yoghurt machine, Instrumentation dehumidification
-
After Warranty Service:
-
Video technical support
Product Description
Specification
The internal heating element of the PTC heater is a positive temperature coefficient thermistor, and its resistance value increases step with the increase of the temperature of the PTC thermistor body, and the higher the temperature, the greater the resistance value.
|
Product Name
|

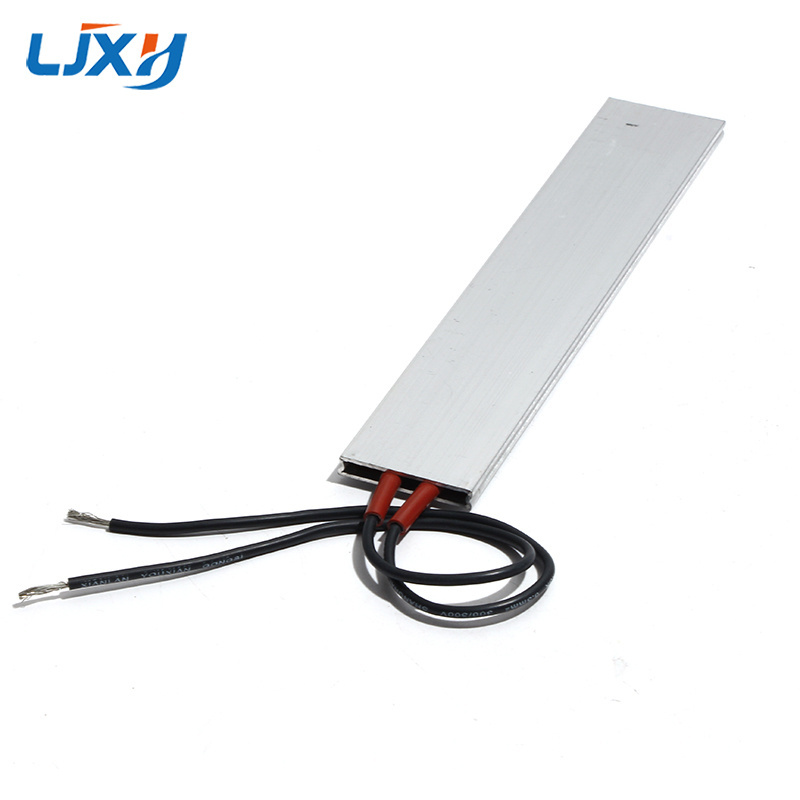

PTC heater plate 150x30(28.5)x5mm
|
|
Material
|
Aluminum shell
|
|
Voltage
|
12V 24V 220V
|
|
Heat Material
|
PTC Thermistor
|
|
Lead Wire Material
|
High Temperature Line
|
|
Lead Wire Length
|
about 10cm
|
|
Temperature Tolerance
|
±10℃
|
|
Package
|
2pcs PTC heating plate
|
Advantage:
Constant temperature heating, no open flame, high heat conversion rate, minimal influence by power supply voltage and other traditional heating elements can not be compared, and the application in electric heating appliances is more and more favored by engineers
It has the characteristics of automatic energy saving, when the heater is working, as the ambient temperature increases, its power will gradually decrease to 90%, 80% or less of the rated power
It will not be damaged due to its own reasons when used, and tens of thousands of repeated switches have no effect on its performance, and the standard for measuring its life is the degree of aging. Generally, the power attenuation is less than 10% after 2000 hours of operation.
Products features
Due to the different ways of use by users and the energy-saving characteristics of PTC itself, most of the power in actual use is within the range of 50%~200% of its rated power (the better the heat dissipation, the greater the power)
Dry burning power: about 20% of the rated power (this product can be dry burned type)
Application:
1. Battery, security, scientific research, industrial motor , aerospace, and other electronic and electrical low-power heating, preheating, moisture removal and heat preservation.
2. It is widely used, such as electric mosquito coil heating element, shoe warmer heating element, incense burner heating element, heater heating element, electric cup heating element, water dispenser heating element, coffee machine heating element, yogurt machine heating element, auto parts insulation, diesel alcohol heating, instrument heating and moisture removal, solenoid valve antifreeze, distribution cabinet moisture removal and dehumidification, electronic components constant temperature preheating, portable heating element, and many other uses that can be developed.
Note: The temperature marked here is the maximum temperature limit of the surface temperature of the heating sheet in the state of empty burning, and this temperature does not represent the temperature when used; The operating temperature is controlled by the environment and on-site heat absorption; The surface temperature limit temperature and the use temperature of the air burning are two completely different temperatures.
