Product Description

Poultry Feed mixer grinder machine consists of two machines: vertical mixer and self-priming hammer mill. The machine group is mainly used for crushing grains into fine powder and mixing them evenly at the same time, then use the mixed grains powder to make feed pellets to feed poultry directly. They are the most suitable machines for crushing all kinds of cereals such as corn, maize, barley, soybean and wheat into powder and then the crushed materials can be mixed with other powder. These machines are main products with unique design made by Shandong Double Crane Machinery Manufacturer Co., Ltd.. The vertical mixer body is made of Q235 carbon steel. The machine group has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.

Animal feed mixer grinder machine

1. Features and Advantages:

1) High efficiency with low cost. crushing and mixing at the same time.

2) The residue materials are easy to clean. Durable in use and easy and convenient to maintain.

3) Energy saving and environment friendliness with low noise and dust.

4) Short mixing time. Stable and reliable performance.

5) Compact structure.

6) High evenness. CV≤5%.

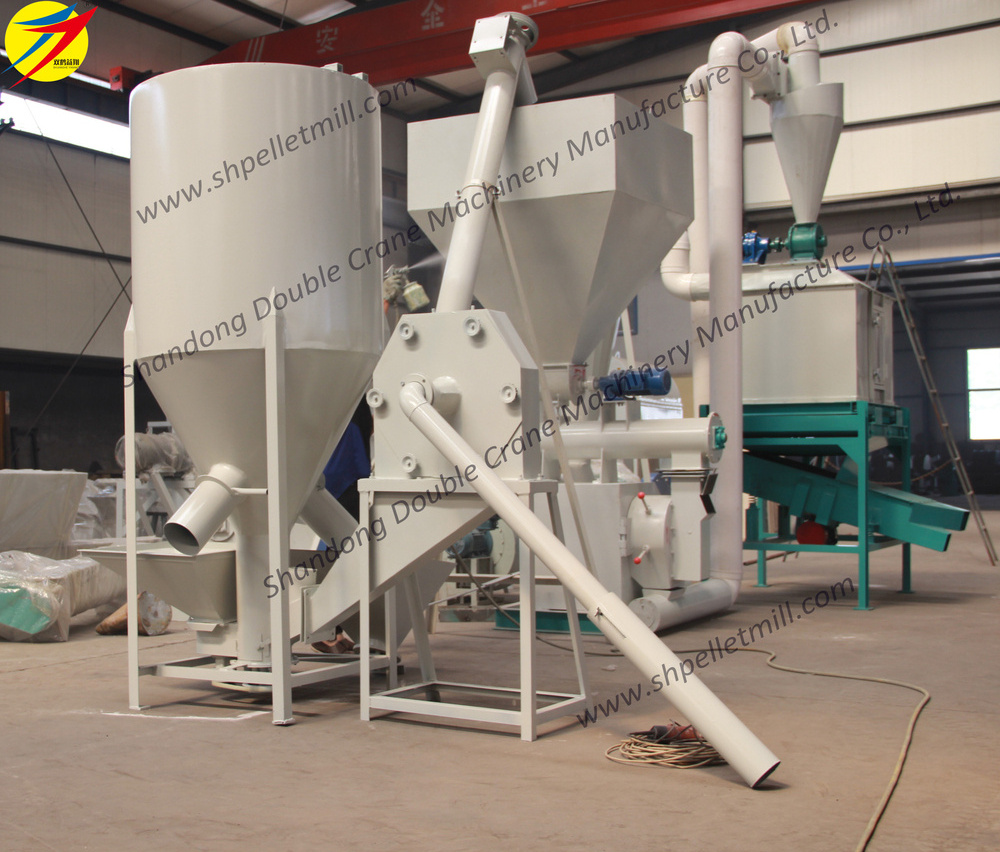

Vertical mixer and hammer mill group

2.Technical parameters of vertical feed mixer grinder:

1. Poultry Feed Grinder Mixer can by fan absorb grain feed raw material by itself,only one worker can operate it,so it can save labor and production cost.

2.This machine group can crush all kinds grain feed,such as corn,soybean,sorghum,grain, legume,barley,etc.

3.It is very suitable to produce mash feed for laying hens,low invest,high output, very convenient to adjust the egg chicken feed raw material mix proportion.

4. This equipment group also the main part of our low invest SH-250 feed pellet production line,it can meet feed pellet production capacity 1t/h,so if customer want to produce pellet feed in the future,it easy to modify and expand feed production line,we also can provide free disign and solution,help you save cost.

Equipment Model		SH-500		SH-1000
Equiment Size/Weight		Grinder 1*0.8*1.6m, Mixer 1*1*2.4m Package weight about 500kg		Grinder 1*0.8*1.8m, Mixer 1.25*1.25*2.9m Package weight about 500kg
Motor Power(kw)		Self-priming grinder 7.5kw, Vertical mixer 2.2kw.		Self-priming grinder 11kw, Vertical mixer 3kw.
Production Capacity(t/h)		1-2t/h		2-3t/h
Wearing parts		Each time only use 16pc hammer and 1pc screen, use life about 1-2month
Screen size		Screen size can be 1.5mm for pig feed production, 2,4,6,8,10,12mm for chicken feed production; The high size screen will have hight yield
Application	Crush grain feed for animal feed,such as corn,soybean,etc. Suitable for chicken and pig feed

3.The working principle of small poultry feed grinder and mixer:

Hammer mill and mixer are concentrated in one, so it occupies a small place and easy to install.The grain feed such as corn can be put on the floor or dig a pit or drum,the hammer mill can by d ouble tube suction nozzle to absorb the feed material by wind power from suction blower,After the completion of the automatic grinding,corn powder automatically into vertical mixer;

Vertical Mixer Working Principle: At the same time,if user have other powder feed material such as wheat bran want to mix together with corn feed,because it no need to crush again,so we just put powder material into mixer ’ s powder feed inlet hopper,then several feed material can mix together in the mixer,it will need to mix 5 minutes according to actual situation,by manual discharge valve,automatic discharge the finished premix feed product.

The working principle of vertical mixer,by the rapid rotation of the screw pole,the material is lifted to the top of the barrel from the bottom,and then scatters on the bottom,by this way, the material is mixed efficiently in the barrel.

4.Feed grinder and mixer used in the Pellet Feed Production Line:

5 Application Raw Materials:

They are the most suitable machines for crushing all kinds of cereals such as corn, maize, barley, soybean and wheat into powder and then the crushed materials can be mixed with other powder.

6.Application Industrial:

The grinder and mixer is the main feed powder processing equipment for rural animal raisers, small feed production factory and medium-sized complete formula feed factory. The machine group can produce all kinds of premix feed powder, concentrate feed and compound feed.The finished powder can be fed to any kinds of animals for improving their nutrition and create more economic value.  The vertical mixer and hammer mill group is also a necessary part of 1t per hour ring die pellet production line.

7.Main parts of vertical mixer and hammer mill:

The main parts of hammer mill are hammers and the screen. There are 16 pcs of hammers in the hammer mill.

Hammer of hammer mill

1 pc of screen in the hammer mill. The pore size of the screen is 2-10mm. We can also customize for you.

Screen of hammer mill

Sample pictures

Packaging & Shipping

Single order feed mill and mixer machine packed by plywood box.
Full container order load in full container with wooden pallet.
