Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ruifan
-
Voltage:
-
3phase,380V,50Hz
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1400*780*1100mm
-
Weight:
-
700 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
high quality small shotcrete machine
-
Application:
-
Shotcrete Pump Concrete Spraying
-
Production capacity:
-
37m3/h
-
Working pressure:
-
0.2-0.6MPa
-
Blast consumption:
-
7-8m3/h
-
Motor power:
-
5.5kw
-
Max.Aggregate Size:
-
10mm 15mm 20mm
-
Model:
-
PZ-6
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7~8m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ruifan
-
Voltage:
-
3phase,380V,50Hz
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1400*780*1100mm
-
Weight:
-
700 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Keywords:
-
high quality small shotcrete machine
-
Application:
-
Shotcrete Pump Concrete Spraying
-
Production capacity:
-
37m3/h
-
Working pressure:
-
0.2-0.6MPa
-
Blast consumption:
-
7-8m3/h
-
Motor power:
-
5.5kw
-
Max.Aggregate Size:
-
10mm 15mm 20mm
-
Model:
-
PZ-6

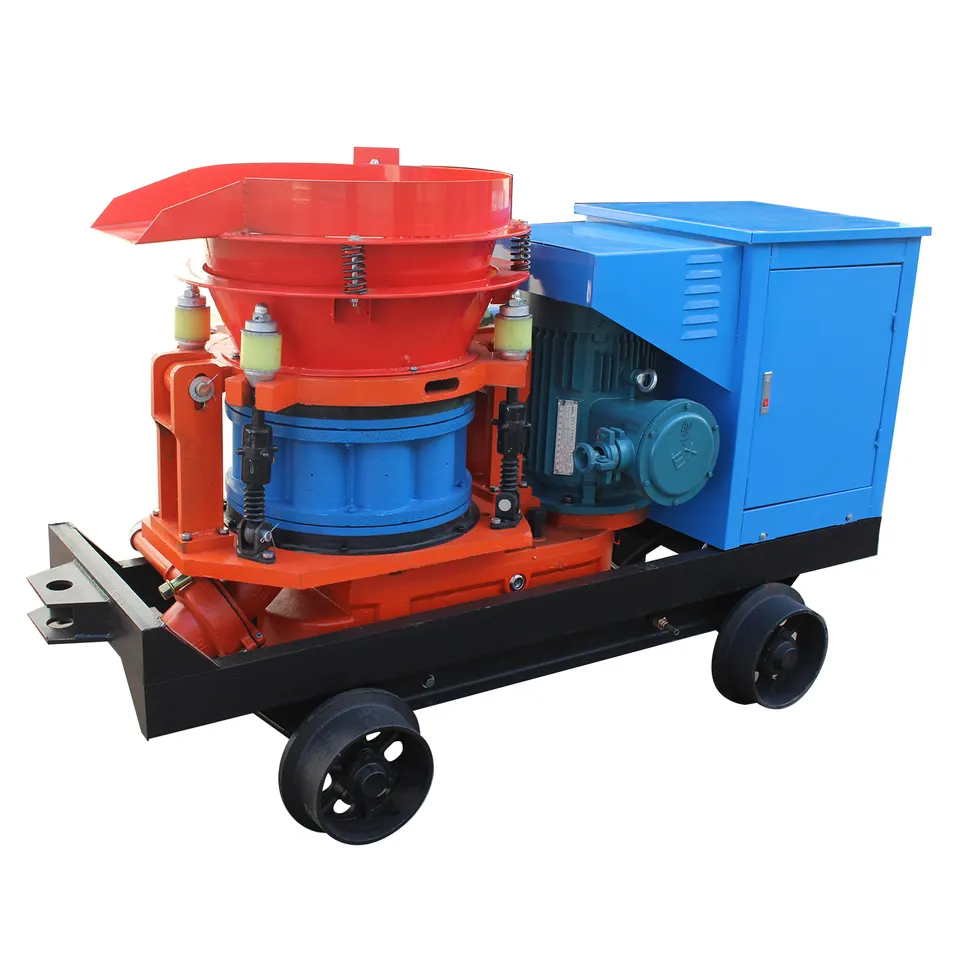

Products Description
Shotcrete machine is a small size slope protection concrete refractory shotcrete machine is the use of air pressure in the machine to the dry/wet material through the hose to the water nozzle.PZ series electric dry powder shotcrete machine is a high yield, continuous feed dry powder shotcrete or refractory casting device.It is as comfortable in an underground mining environment as it is on a construction site.The sandblasting machine adopts rotor feeding system, which enables continuous operation, long service life and low maintenance cost.A variety of hoses and nozzles are available to meet various shotcrete requirements.
Features of small shotcrete machine:
1. Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.
2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.
4.Unique vibrating hopper feeds the concrete into the dosing system smoothly.
5.Standardized dosing pump can add exactly concrete accelerator.
6. We can change the color according to your actual requirements.
7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.
Product Parameter
|
SPECIFICATIONS FOR SHOTCRETE MACHINE
|
|
|
|
|
||||
|
Model
|
PZ-3
|
PZ-5
|
PZ-6
|
PZ-7
|
||||
|
Production capacity
|
3m3/h
|
5m3/h
|
6m3/h
|
7m3/h
|
||||
|
The maximum transmission distance
|
200m
|
200m
|
200m
|
200m
|
||||
|
Applicable material proportioning: cement/sa
|
1:3-5
|
1:3-5
|
1:3-5
|
1:3-5
|
||||
|
Applicable materials water-cement ratio
|
<0.4
|
<0.4
|
<0.4
|
<0.4
|
||||
|
The biggest bone size
|
10mm
|
15mm
|
15mm
|
20mm
|
||||
|
Transporting pipe inner
|
42
|
51
|
51
|
51/64
|
||||
|
Rotor block diameter
|
350mm
|
438mm
|
438mm
|
480mm
|
||||
|
Working pressure
|
0.2-0.6MPa
|
0.2-0.6MPa
|
0.2-0.6MPa
|
0.2-0.6MPa
|
||||
|
blast consumption
|
5-6m3/h
|
7-8m3/h
|
7-8m3/h
|
9-10m3/h
|
||||
|
motor power
|
4KW
|
5.5KW
|
5.5KW
|
7.5KW
|
||||
|
Level of voltage
|
380V,440V,660V,1140, 50Hz/60Hz
|
|
|
|
||||
|
Weight
|
400kgs
|
700kgs
|
700kgs
|
800kgs
|
||||
Details Images
Different types of construction machinery:
Application
The concrete shotcrete machine is widely used in road slope protection, civil underground foundation, spray swimming pool, tunnel, mining operations, hydropower engineering, slurry walls, retaining walls and so on.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
