Quick Details
-
Application:
-
IP Camera Module
-
Series:
-
E
-
Features:
-
low
-
Mounting Type:
-
n
-
Size / Dimension:
-
38mm
-
Description:
-
IP Camera Module
-
Camera Type:
-
H.264/H.265/ H.265+ 2MP IP Camera Module
-
Image Sensor:
-
1/2.9" CMOS 2MP Image Sensor Sony IMX323
-
DSP:
-
Hisilicon 3516CV300
-
Effective Pixels:
-
1920X1080
-
Min. Illumination:
-
Color 0.01Lux/F1.2,B/W 0.01Lux/F1.2
-
WDR:
-
Digital WDR >80db
-
Audio:
-
1ch Audio MIC input/ line input, 1ch output
-
Smart Phone:
-
Support iPhone, iPad, Android View
-
BNC Video out:
-
1 CH Analog CVBS Video Output
-
Type:
-
Ip Camera
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMTSEC
-
Model Number:
-
SIP-E323CV
-
Application:
-
IP Camera Module
-
Series:
-
E
-
Features:
-
low
-
Mounting Type:
-
n
-
Size / Dimension:
-
38mm
-
Description:
-
IP Camera Module
-
Camera Type:
-
H.264/H.265/ H.265+ 2MP IP Camera Module
-
Image Sensor:
-
1/2.9" CMOS 2MP Image Sensor Sony IMX323
-
DSP:
-
Hisilicon 3516CV300
-
Effective Pixels:
-
1920X1080
-
Min. Illumination:
-
Color 0.01Lux/F1.2,B/W 0.01Lux/F1.2
-
WDR:
-
Digital WDR >80db
-
Audio:
-
1ch Audio MIC input/ line input, 1ch output
-
Smart Phone:
-
Support iPhone, iPad, Android View
-
BNC Video out:
-
1 CH Analog CVBS Video Output
-
Type:
-
Ip Camera

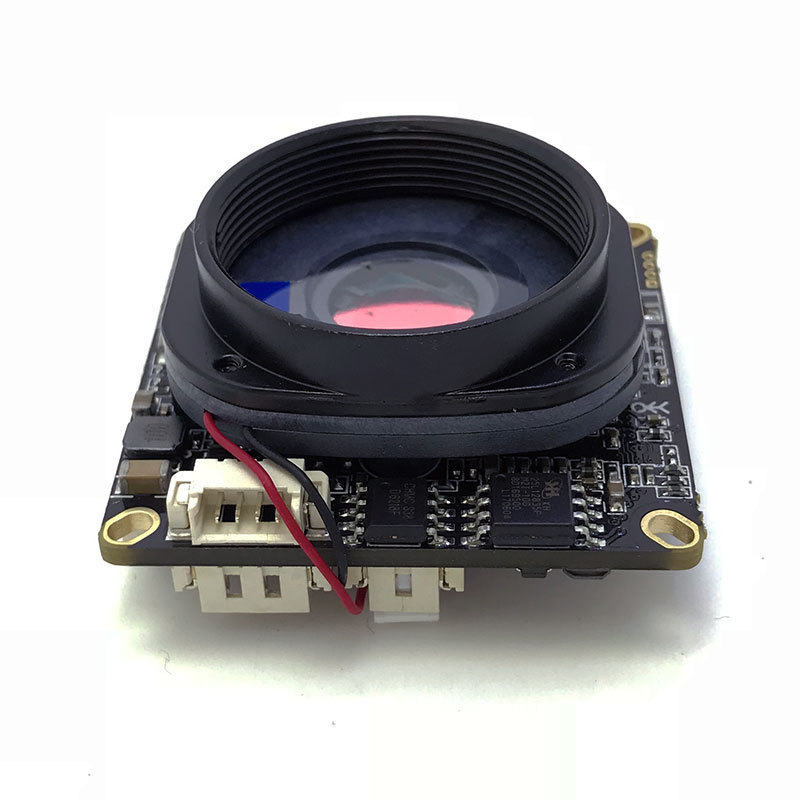

Low Light 2MP Sony IMX323 OEM IP Camera Module HI3516CV300 CCTV Security Board Camera PCB,Wifi/POE/TF Card Slot DIY
Model: SIP-E323CV
| Model | SIP-E323CV |
| Camera Type | H.264/H.265/ H.265+ 2MP IP Camera Module |
| Camera | |
| Image Sensor | 1/2.9" CMOS 2MP Image Sensor IMX323 |
| DSP | Hisilicon 3516CV300 |
| Effective Pixels | 1920X1080 |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.01Lux/F1.2,B/W 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| WDR | DWDR:>80db |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Video/Audio | |
| Video Compression | H.264/H.265/ H.265+ Dual-stream encoding |
| Resolution | Main Stream:1920X1080,1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Support iPhone, iPad, Android View |
| Interface | |
| Audio | 1ch Audio MIC input/ line input, 1ch output |
| BNC Video out | 1 CH Analog CVBS Video Output |
| USB* | 1CH USB(MAX128G),Support Micro SD/TF card storage Or WiFi Expansion |
| Reset | Support |
| Optional function# | |
| Memory Card Slot# | Support Micro SD/TF Card (MAX128G) |
| WIFI # | 802.11b/g/n |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 15mm |
| Net Weight | 0.15kg |
| #Remark: WIFI,POE,Memory Card functions are optional . If you need WIFI,POE,Memory Card functions, please consult with us.*--USB/ Micro SD Card Slot/ WIFI Only Three Choose One | |
The TF/Micro SD Card Slot Board(Optional)
The WiFi Module (Optional):
80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN
