Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5500*1750*2650
-
Machine Weight:
-
3400 kg
-
Bucket capacity:
-
0.5
-
Product name:
-

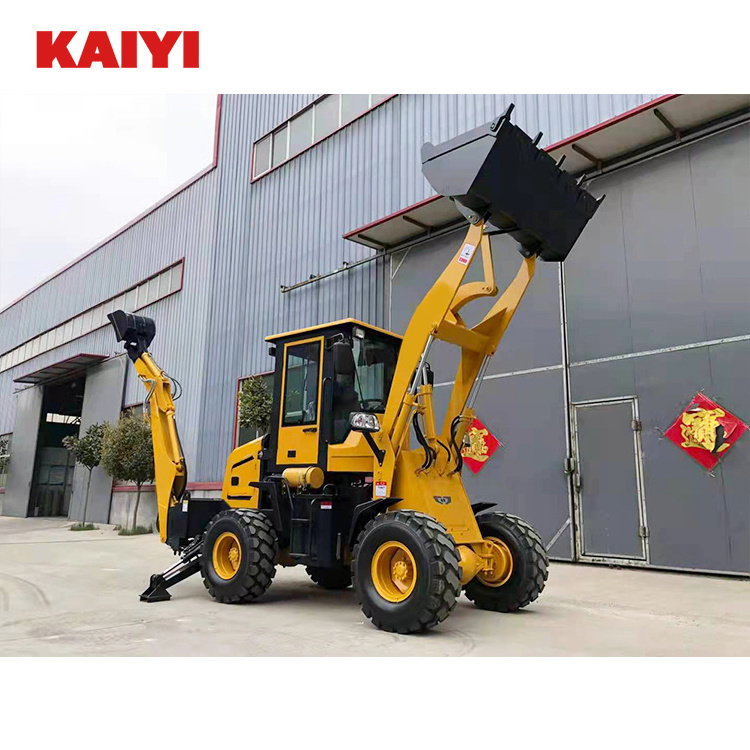

KAIYI 10-60
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
37 KW
-
Brand Name:
-
KAIYI
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5500*1750*2650
-
Machine Weight:
-
3400 kg
-
Bucket capacity:
-
0.5
-
Product name:
-
KAIYI 10-60
|
Outer Dimension
|
|
Parameter
|
|
||
|
Outerus Dimension
|
5500*1750*2650
|
System pressure
|
16MPa
|
||
|
wheel base
|
2070mm
|
Toatl weight
|
3400KG
|
||
|
Wheel track
|
1475mm
|
Travel speed
|
25(KM/h)
|
||
|
Minimum ground clearance
|
250mm
|
|
|
||
|
Mining parameters
|
|
Load parameters
|
|
||
|
Max digging depth
|
2000mm
|
Unloading height
|
2800mm
|
||
|
Unloading height
|
1800mm
|
Max unloading distance
|
800mm
|
||
|
Max digging radius
|
2700mm
|
SCOOP Width
|
1800mm
|
||
|
scoop width
|
400mm
|
Diggind bucket capacity
|
0.53m3
|
||
|
Diggind bucket capacity
|
0.13
|
Max lifting height
|
3300mm
|
||
|
Max digging height
|
3300mm
|
Max lifting force
|
36 kn
|
||
|
Max distance
|
25KN
|
working hours
|
12 s
|
||
|
Rotation angle
|
180°
|
|
|
||
|
Engine
|
|
|
|
|||
|
model
|
(yunnei）YN25GB
|
Rated power
|
37KW
|
|||
|
Type
|
Inline water4
|
Rated power
|
2400r/min
|
|||
|
Transmission system
|
|
steering system
|
|
|||
|
Speed changing box
|
Hydraulic/Mechanical
|
model
|
Fluid link steering
|
|||
|
Gears
|
2*2
|
Steeringangle
|
33°
|
|||
|
Axle tires
|
|
Tank
|
|
|||
|
Axle model
|
ISUZU
|
Fuel tank
|
30 L
|
|||
|
Tyre
|
20.15-16
|
Hydraulic fluid chamber
|
30 L
|
|||
|
Front tyre
|
250KPa
|
Driving type
|
Four wheel drive
|
|||
|
Rear trie
|
250KPa
|
Variable speed vtrpe
|
Max variable speed
|
|||
|
Crane brake
|
Drum brake
|
Braking distance
|
330mm
|
|||
