Quick Details
-
Model Number:
-
CR30SCN15DPR
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 ~ +70℃
-
Max. Current:
-
Consult our
-
Type:
-
Ponsition sensor
-
mounting:
-
Non-flush
-
Sensing distance:
-
15mm
-
Output:
-
PNP NO+NC
-
Frequency:
-
50Hz
-
Circuit protection:
-
Polarity protection, Short circuit protection,Surge protection
-
Housing material:
-
PBT
-
Connection:
-
2m PVC cable
-
Certification:
-
CE UL, UL CE
-
Warranty:
-
12 Months
Quick Details
-
Max. Voltage:
-
20~30VDC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LANBAO
-
Model Number:
-
CR30SCN15DPR
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 ~ +70℃
-
Max. Current:
-
Consult our
-
Type:
-
Ponsition sensor
-
mounting:
-
Non-flush
-
Sensing distance:
-
15mm
-
Output:
-
PNP NO+NC
-
Frequency:
-
50Hz
-
Circuit protection:
-
Polarity protection, Short circuit protection,Surge protection
-
Housing material:
-
PBT
-
Connection:
-
2m PVC cable
-
Certification:
-
CE UL, UL CE
-
Warranty:
-
12 Months
Capacitance sensors
Capacitive sensors Naming rules
| C R 12 B F 02 D N O-E1 | |||||
| Type code | C:Capactive | ||||
| Shape code | R:Threaded cylindrical | Q:Smooth cylindrical | E:Rectangular | ||
| Size code | Number(e.g:08:M8) | ||||
| Housing material | N/A:Copper | S:Plastic | G:Stainless steel | ||
| Housing length | A:Short | B:Standard | C:Long | ||
| Mounting | N:Non-Flush | F:Flush | |||
| Sensing distance | Number(e.g:02:2mm) | ||||
| Supply voltage | A:20~250VAC | D:10~30VDC | E:10~60VDC | M:18~36VDC | S:20~250VAC/DC |
| Output way | B:AC/DC 2 wires | T:AC 2 wires | P:PNP | N:NPN | E:NPN/PNP |
| Output status | A:NO/NC reversible | B: NO/NC optional | O:NO | C:NC | R:NO+NC |
| By sensor function | N/A:Standard function | Y:Extended sensing distance | T1:On-delay function | T2:Off-delay function | |
| Cable length | N/A:2M | 3M:3m | |||
| Connectiong | N/a:2m cable | E1:M8 connector (3 pins) | E2:M12 connector (4 pins) | E3:M8 connector (4pins) | D:Terminal |
Product Description

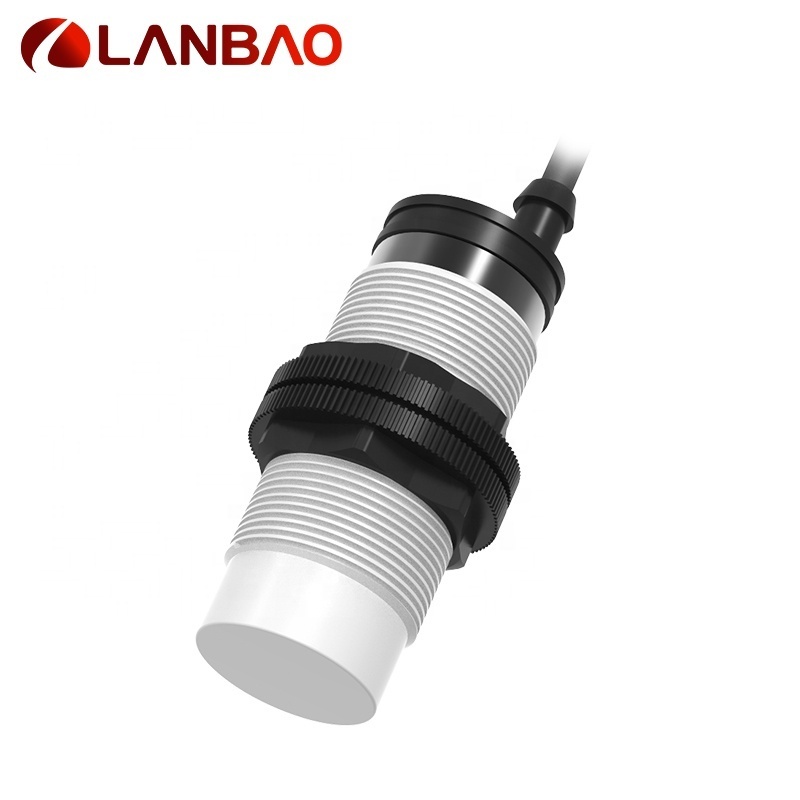

Lanbao CR30S counting switch cheap non-contact proximity automatic door Capacitive limit sensor
1-2 working days for spot goods, 3-4 weeks for non-spot goods
