Quick Details
-
Control System Brand:
-
RuiDa
-
Control Software:
-
RDWORKSV8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
rayfine
-
Weight (KG):
-
100 KG
-
Configuration:
-
CO2 LASER
-
Products handled:
-
Cut and Engrave
-
Product name:
-
CO2 Laser Cutting Machine
-
Keywords:
-
Laser Cutting Machine
-
Function:
-
Cutting Engraving
-
Laser type:
-
CO2 laser
-
Laser tube:
-
Glass tube
-
Laser power:
-
40W 50W 60W 80W
-
Control system:
-
Ruida
-
Working voltage:
-
AC110V60HZ AC220V50HZ
-
Cutting materials:
-
MDF/Acrylic/Wood/Non-metal
-
Industrial chiller:
-
CW3000/CW5000/CW5200
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0~400mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Control Software:
-
RDWORKSV8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
rayfine
-
Weight (KG):
-
100 KG
-
Configuration:
-
CO2 LASER
-
Products handled:
-
Cut and Engrave
-
Product name:
-
CO2 Laser Cutting Machine
-
Keywords:
-
Laser Cutting Machine
-
Function:
-
Cutting Engraving
-
Laser type:
-
CO2 laser
-
Laser tube:
-
Glass tube
-
Laser power:
-
40W 50W 60W 80W
-
Control system:
-
Ruida
-
Working voltage:
-
AC110V60HZ AC220V50HZ
-
Cutting materials:
-
MDF/Acrylic/Wood/Non-metal
-
Industrial chiller:
-
CW3000/CW5000/CW5200
Product Description

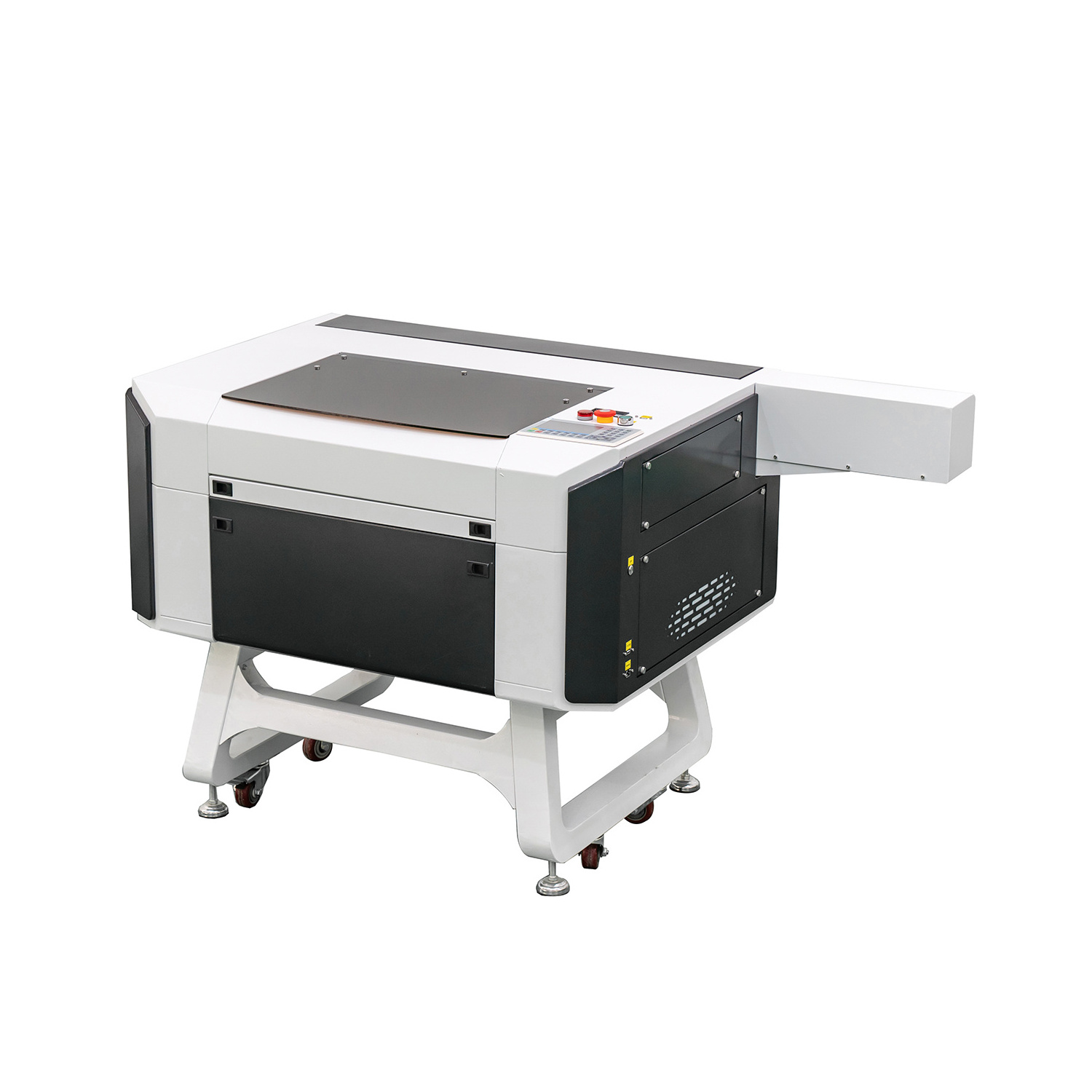

6040 600x400mm co2 laser engraving cutting machine
Product Parameter
|
Model： RF-6040
|
|
Application： cutting engraving for non metal
|
|
Laser type：CO2 laser
|
|
Laser tube power：40W/50W/60W/80W
|
|
Exercise system: linear guide and stepper motor
|
|
Control software：Rdworksv8
|
|
Working area：600mm*400mm
|
|
Minimum engraving character：1mm x 1mm
|
|
Engraving speed：400mm / s
|
|
Cutting speed：suggest 20mm/s for 3mm MDF
|
|
Graphic format supported：AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
|
|
Direct output：CorelDraw, AutoCAD, Photoshop, Laser CAD, etc... work with Lightburn
|
|
Cooling：Industrial chiller
|
|
Power supply：AC220V 50HZ / AC110V 60HZ
|
|
Machine Warranty ：1 years
|
Details of the machine
Features
High quality glass co2 laser tube
Rudia control plane
Sealed XY linear rail
LED blue light
cooler - industrial chiller (high laser power need bigger industrial chiller)
motorized up down lifting table
Optional parts
Rotary - A
Rotary - B
Activated carbon smoke purifier
Spare focus lens and reflection lens
Sample Show
laser machine work with rotary chuck for engraving ring object/cup/
wine bottle/barrel
laser machine engraving and cutting non metal
Machine packaging
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
2. Inner package: Stretchy film and plastic film for humidity.
