Quick Details
-
Rolling thinckness:
-
Other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINGHE
-
Voltage:
-
380v 50-60hz
-
Dimension(L*W*H):
-
3000*1300*600mm
-
Weight:
-
0.5 kg
-
Product name:
-
Roof Sheet Forming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
BV
-
Usage:
-
Roofing Accessories
-
Raw material:
-
PPGI
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
Quick Details
-
Type:
-
Arching Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
4-8m/min
-
Rolling thinckness:
-
Other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINGHE
-
Voltage:
-
380v 50-60hz
-
Dimension(L*W*H):
-
3000*1300*600mm
-
Weight:
-
0.5 kg
-
Product name:
-
Roof Sheet Forming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
BV
-
Usage:
-
Roofing Accessories
-
Raw material:
-
PPGI
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
|
Main Specification |
||
|
Steel tiles arching machine |
||
|
1 |
Main frame |
250 mm H-sections |
|
2 |
Side board thickness |
14mm |
|
3 |
Main motor power |
3 kw |
|
4 |
Power supply |
380V 50-60Hz |
|
5 |
Shaft number |
3 rows |
|
6 |
Shaft material |
Carbon steel 45# |
|
7 |
Shaft diameter |
7 0 mm |
|
8 |
Rolling wheel material |
Carbon steel 45# with chrome plated |
|
9 |
Hydraulic pump motor power |
4 kw |
|
10 |
Chain size |
33mm |
|
11 |
Control system |
PLC Delta inverter |
|
12 |
Production rate |
4 -8m/min |
|
13 |
Feeding tiles |
Formed tiles |
|
14 |
Finished specification |
According to the formed tiles |
|
15 |
Overall size |
30 00*1 3 00* 600 mm |
|
16 |
Total weight |
About 0.5 Ton |
|
* Parameters above is the standard configuration * Parameters can be designed as per your special requests. |
||
|

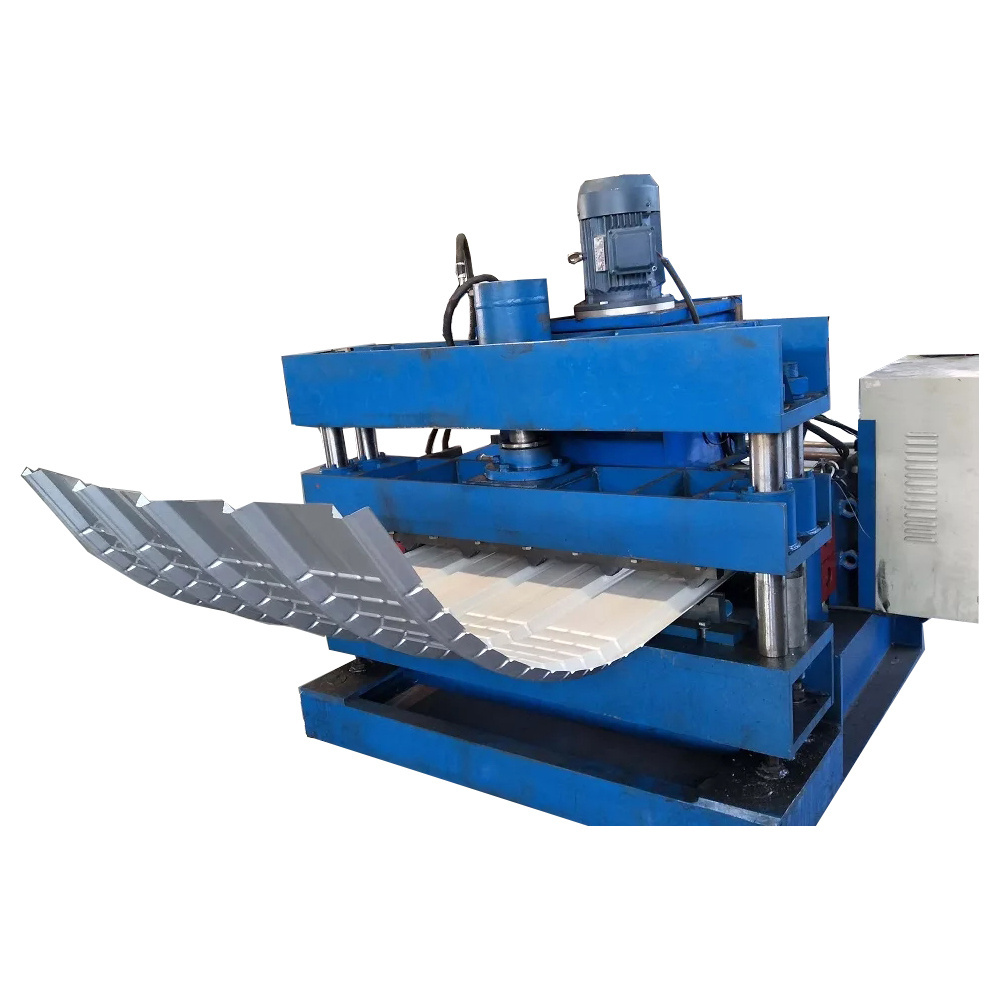

Product Photos |
|
Package & Payment & Delivery |
||
|
1 |
Package details |
Nude fasten up in container or under your requests |
|
2 |
Payment terms |
30% TT for deposit balance against copy of B/L 100% L/C at sight |
|
3 |
Delivery time |
Within 30 days after receipt deposit |
|
4 |
Port of shipment |
XINGANG TIANJIN |
|
Our Service |
|
|
1 |
One-year quality assurance for all the machine |
|
2 |
Technical staff available to service machine overseas |
|
3 |
Permanent free for technical support |
|
4 |
Design and produce according to your sample or drawing |
