Quick Details
-
Warranty:
-
1000 hours and 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-C50GF
-
Speed:
-
1500RPM
-
Manufacturer:
-
Sutech Power
-
Engine:
-
With cummins engine 4BTA3.9-G2
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Controller:
-
Deepsea/Smartgen/etc
-
Rated Power:
-
50kw 60kva
-
Output Type:
-
AC Three Phase
-
Certificate:
-
CE/ISO9001/ISO14001
-
Type:
-
Open/Silent/Mobile
-
Keyword:
-
50kw 60kva cummins generator
-
Certification:
-
CE/ISO9001/ISO14001
Quick Details
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
90
-
Frequency:
-
50HZ
-
Warranty:
-
1000 hours and 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-C50GF
-
Speed:
-
1500RPM
-
Manufacturer:
-
Sutech Power
-
Engine:
-
With cummins engine 4BTA3.9-G2
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Controller:
-
Deepsea/Smartgen/etc
-
Rated Power:
-
50kw 60kva
-
Output Type:
-
AC Three Phase
-
Certificate:
-
CE/ISO9001/ISO14001
-
Type:
-
Open/Silent/Mobile
-
Keyword:
-
50kw 60kva cummins generator
-
Certification:
-
CE/ISO9001/ISO14001
Related Products
Sutech Power Diesel generator sets with optional type
Below Engine brands, Alternator brands and Control pa nel for your optional
| Rated power | Engine | Alternator | Control panel |
| 20 kw~1300kw | Cummins |
Stamford
Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea
ComAp Harsen Smartgen |
| 8kw~1640kw | Perkins | ||
| 68kw~504kw | Volvo | ||
| 20 kw~500kw | Deutz | ||
| 220 kw-2400kw | MTU | ||
| 280kw-800kw | MAN | ||
| 640kw-1800kw | Mitsubishi | ||
| 50kw-650kw | Doosan | ||
| 2kw~2500kw | Chinese engine |
Movable 50000 watt generator 50 kw 60 kva power by cummins diesel engine 4BTA3.9-G2 on trailer
Cummins Engine Parameters
|
Engine Model |
4BTA3.9-G2 |
|
Number of Cylinders |
4 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Naturally |
|
Bore×Stroke |
102mmx120mm |
|
Displacement |
3.9L |
|
Compression ratio |
16.5:1 |
|
Prime Power/Speed |
48KW/1500rpm |
|
Speed Governor |
Mechanical/Electrical |
|
Cooling System |
Forced water cooling cycle |
|
Steady speed droop |
≤1% |
|
Fuel consumption at 100% load |
7.6L/H |
Alternator Parameters
|
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
|
Prime power |
50kw |
|
Frequency/speed |
50Hz/1500rpm |
|
Exciter type |
Single bearing, Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
Controller Panel
|
Brand |
Deepsea/ComAp/SmartGen |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater
Lube oil heater Electronic governor Engine oil temperature |
External Tank
Water Separator |
50-60 Radiator,
Remote radiator Cooling tower |
Heavy Duty air filter
Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation
Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel
Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |
Rainproof Type
Soundproof Type Containerized Type Trailer Type Spare Parts |
400/230V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
Movable 50000 watt generator 50 kw 60 kva power by cummins diesel engine 4BTA3.9-G2 on trailer
Open type

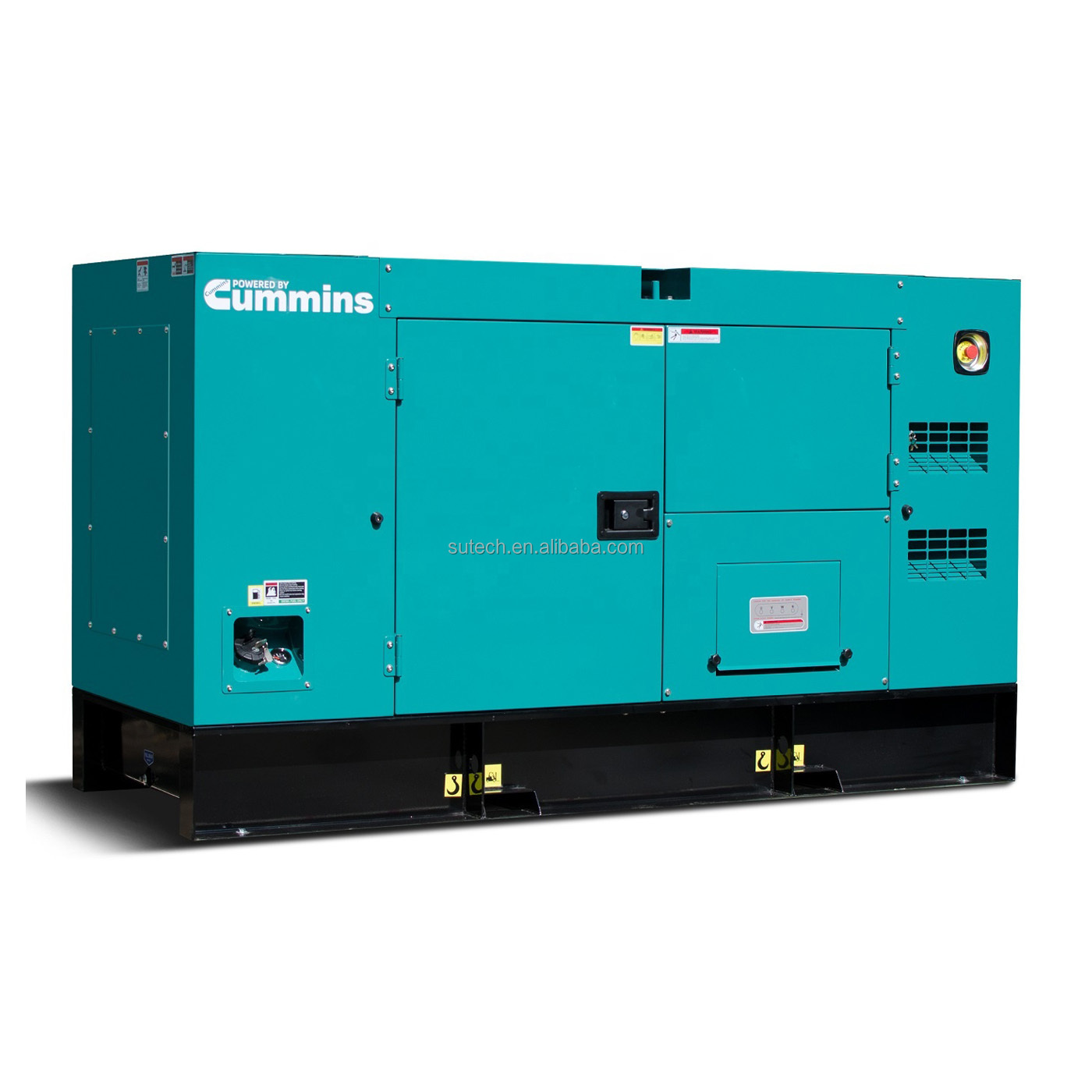

Soundproof silent type
Electro-galvanized solid steel-2mm to 4mm.Anti-rust,anti-corrosion
High Density sound-absorbing material can reduce the noise to level 65 db(A)@7M
Beautiful design with excellent ventilation.upper lifting point and tank hole for fork
Trailer mobiler type
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
