The STACK HV Series is specifically designed for extensive residential use. Featuring a stackable configuration with self-adjusting modules, it offers a choice of six energy capacities, reaching up to 51.2kWh, and supports parallel connections. Utilizing cutting-edge LiFePO4 technology, it allows for remote upgrades, boasts high waterproofing capabilities, and excels in efficient cooling.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Higon
-
Model Number:
-
STACK HV
-
Battery Size:
-
LifePO4
-
Place of Origin:
-
Anhui, China
-
Weight:
-
170-395kg
-
The charging ratio:
-
50A
-
The discharge rate:
-
100A
-
Product name:
-
Lithium Ion Battery
-
Capacity:
-
100Ah
-
Voltage:
-
51.2V
-
Cycle life:
-
6000 Times
-
Warranty:
-
10years
-
Recommend Charging Current:
-
50A
-
Cell type:
-
Grade-A Lithium-ion
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Communication:
-
CAN/RS485/DRY CONTACT
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Quick Details
-
Storage Type:
-
dry, cool and ventilation
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Electric Power Systems, Solar Energy Storage Systems
-
Brand Name:
-
Higon
-
Model Number:
-
STACK HV
-
Battery Size:
-
LifePO4
-
Place of Origin:
-
Anhui, China
-
Weight:
-
170-395kg
-
The charging ratio:
-
50A
-
The discharge rate:
-
100A
-
Product name:
-
Lithium Ion Battery
-
Capacity:
-
100Ah
-
Voltage:
-
51.2V
-
Cycle life:
-
6000 Times
-
Warranty:
-
10years
-
Recommend Charging Current:
-
50A
-
Cell type:
-
Grade-A Lithium-ion
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Communication:
-
CAN/RS485/DRY CONTACT
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Products Description

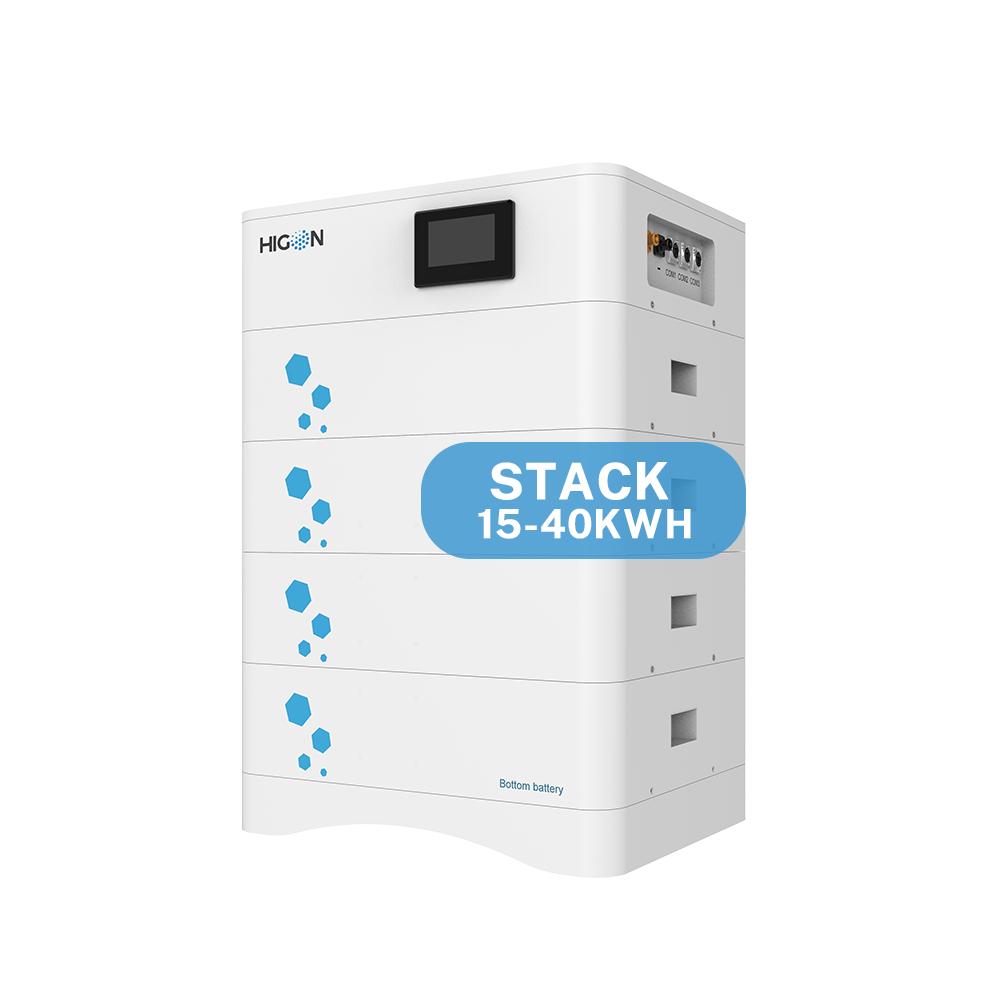

STACK HV 15-50kWh Stackable Lithium Battery
Larger Ener
gy Capacit
y
High Efficiency and Long lifespan
14.336Wh per unit, 10 year warranty
Specifications
|
STACK HV SERIES LITHIUM BATTERY
|
|
|
|
|
|
|
||||||
|
Model
|
STACK-15
|
STACK-20
|
STACK-25
|
STACK-30
|
STACK-35
|
STACK-40
|
||||||
|
Battery Module Type
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
||||||
|
Battery Module Quantity
|
3
|
4
|
5
|
6
|
7
|
8
|
||||||
|
Nominal Voltage (V)
|
153.6
|
204.8
|
256
|
307.2
|
358.4
|
409.6
|
||||||
|
Nominal Capacity (KWH)
|
13.15
|
20.48
|
25.60
|
30.72
|
35.84
|
40.96 |
||||||
|
Usable Energy (KWH)
|
6.144
|
19.35
|
24.19
|
29.03
|
33.84
|
38.70
|
||||||
|
Discharge Voltage(V)
|
120~144
|
160~192
|
200~240
|
240~288
|
280~336
|
320~384
|
||||||
|
Charge Voltage (V)
|
168~175.2
|
224~233.6
|
280~292
|
336~350.4
|
392~408.8
|
448~467.2
|
||||||
|
Recommend Charge/
Discharge Current (A) |
50
|
50
|
50
|
50
|
50
|
50
|
||||||
|
Peak Charge/
Discharge Current(A) |
100
|
100
|
100
|
100
|
100
|
100
|
||||||
|
Dimensions (W*D*H)
|
600*400*677
|
600*400*838
|
600*400*999
|
600*400*1160
|
600*400*1321
|
600*400*1482
|
||||||
|
Net Weight (kg)
|
170
|
215
|
260
|
305
|
350
|
395
|
||||||
|
Communicaiton
|
RS485/RS232/CAN
|
|
|
|
|
|
||||||
|
Working Temperature
|
0℃~50℃ Charge - 10℃~50℃ Disharge
|
|
|
|
|
|
||||||
|
Shelf Temperature
|
-20℃~60℃
|
|
|
|
|
|
||||||
|
Protection Level
|
IP54
|
|
|
|
|
|
||||||
|
Battery Module Name
|
HV5150
|
|
|
|
|
|
||||||
|
Expansion
|
Max. 12 Stacks can be connected in parallel
|
|
|
|
|
|
||||||
|
Certification
|
CE/IEC/UL/UN38.3/MSDS
|
|
|
|
|
|
||||||
|
Design Life
|
10 years+
|
|
|
|
|
|
||||||
|
Cycle Life
|
>6000
|
|
|
|
|
|
||||||
|
Warranty
|
10 years
|
|
|
|
|
|
||||||
Compatiable Inverters
Various Compatiable Inverters
Higon Lithium Batteries has been compatiable with Solis, Sungrow, Victron Energy, SMA, Luxpower, Growatt, INVT, Sofar and soon.... We make sure every our battery can perfectly working with most hybrid inverters in the market.
