Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ECOICE
-
Liquid Flow Rate:
-
5.16m³/h
-
Maximum Working Pressure:
-
4.5MPA
-
Weight:
-
4 KG
-
Dimension(L*W*H):
-
200mm*200mm*560mm
-
Working Temperature Range:
-
-8℃~+208℃
-
Product Name:
-
Heat Exchanger
-
Frame material:
-
PVC
-
Material for the inner tube:
-
corrugated tube
-
Heat capacity:
-
12KW
-
Pool CBM:
-
30-60m3
-
Screwed titanium tube:
-
12.7*0.6*10.5m
-
Tube material:
-
TA1 Pure Titanium
-
Feature:
-
High Efficiency Heat Transfer Technology
-
Usage:
-
Hvac Air Conditioner System
-
Product Type:
-
Tube Heat Exchange Equipm
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
220V/380V
-
Core Components:
-
titanium coil
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ECOICE
-
Liquid Flow Rate:
-
5.16m³/h
-
Maximum Working Pressure:
-
4.5MPA
-
Weight:
-
4 KG
-
Dimension(L*W*H):
-
200mm*200mm*560mm
-
Working Temperature Range:
-
-8℃~+208℃
-
Product Name:
-
Heat Exchanger
-
Frame material:
-
PVC
-
Material for the inner tube:
-
corrugated tube
-
Heat capacity:
-
12KW
-
Pool CBM:
-
30-60m3
-
Screwed titanium tube:
-
12.7*0.6*10.5m
-
Tube material:
-
TA1 Pure Titanium
-
Feature:
-
High Efficiency Heat Transfer Technology
-
Usage:
-
Hvac Air Conditioner System
-
Product Type:
-
Tube Heat Exchange Equipm
Product Description

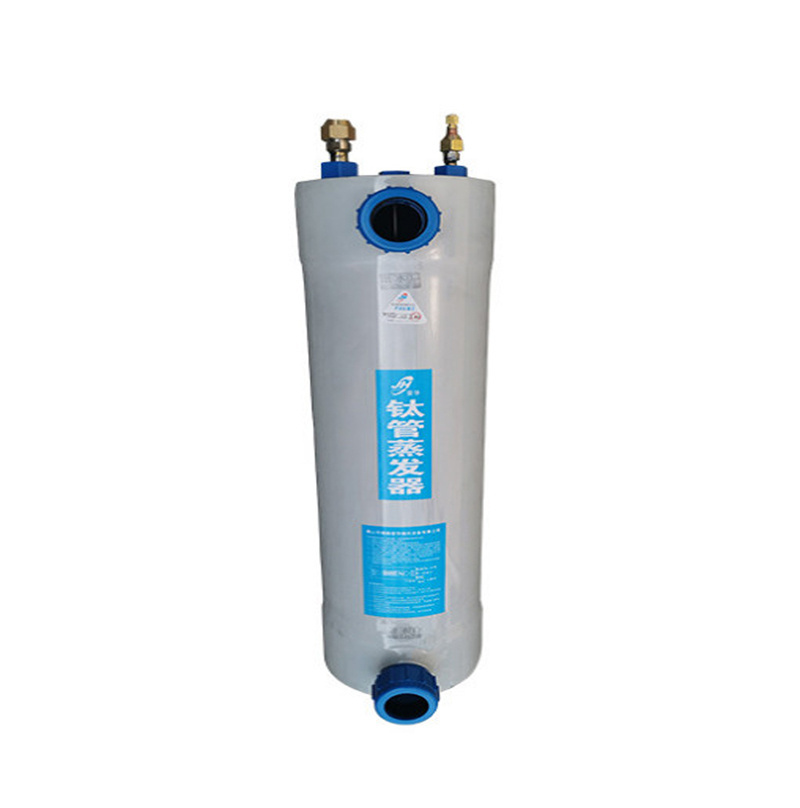

Titanium Heat Exchanger for SPA Pool Heat Pump / Aquarium Chiller
The internal heat exchanger is made of pure titanium, has a good corrosion resistance effect and high heat exchanging efficiency.
It is non-magnetic, non-toxic and can resist heating well. The outer barrel adopts injection molding with high strength plastics,
press solvents into shape.
It has a good chemical stability and would not be influenced by environmental factors and medium composition of the pipeline.
Also it has a good corrosion resistance,low efficiency of thermal conductivity, insulation, energy-saving effect through a professional welding.
Specification
|
Modle
|
Capacity
(kw)
|
Water flow (m3/h)
|
H
(mm)
|
H1 (mm)
|
H2
(mm)
|
D
(mm)
|
E
(mm)
|
Water inlet &outlet
(inch)
|
|
HETA-1.0
|
3.5
|
1.5
|
400
|
250
|
60
|
160
|
195
|
1.5
|
|
HETA-1.5
|
6.5
|
2.2
|
475
|
325
|
60
|
160
|
195
|
1.5
|
|
HETA-2.0
|
8.5
|
3
|
535
|
385
|
60
|
160
|
195
|
1.5
|
|
HETA-2.5
|
10
|
3.5
|
550
|
400
|
60
|
160
|
195
|
1.5
|
|
HETA-3.0
|
12
|
4.5
|
600
|
450
|
60
|
160
|
195
|
1.5
|
|
HETA-4.0
|
15
|
5
|
640
|
490
|
60
|
160
|
195
|
1.5
|
|
HETA-5.0
|
18
|
7.5
|
650
|
500
|
70
|
200
|
235
|
1.5
|
|
HETA-7.5
|
27
|
11
|
580
|
430
|
70
|
200
|
235
|
1.5
|
|
HETA-10
|
36
|
15
|
720
|
610
|
80
|
250
|
290
|
2
|
|
HETA-12
|
43
|
20
|
720
|
610
|
80
|
250
|
290
|
2
|
|
HETA-15
|
54
|
25
|
910
|
800
|
80
|
250
|
290
|
2
|
Spare Part:
Recommend Products
1. Coaxial Coil Heat Exchanger , heat pump Condenser , chiller evaporator 3HP/5HP/7HP
2. PVC Shell Titanium Tube Heat Exchanger for Heat Pump ,1/8hp-60hp
3. SS316L Tube Coil With 316L Shell Heat Exchanger for Chemical Industry
4. Water To Water Heat Exchanger for Water Heat Recovery
5. Immersion Coil Heat Exchanger , dipped in seafood ,electroplate pool or tank cooling . Customized shape ,0.5HP to 60HP ;
6. Titanium Heat Exchanger for Laser Machine and Aquarium Chiller ;
7. Swimming Pool Heat Pump Heat Exchangers .
8. Tubular Heat Exchanger
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
