Quick Details
-
Material:
-
MVQ, EPDM, FPM,Teflon-coated FPM
-
Weight:
-
5
-
Size:
-
161*161*508mm
-
Power:
-
without
-
Weight (KG):
-
5 kg
-
Product name:
-
STRING WOUND FILTER CARTRIDGE
-
Winding material:
-
Polypropylene yarns, Skim cotton yarn, Fiberglass material etc
-
Skeleton material:
-
PP or Stainless steel
-
Outer dimensions:
-
250 mm, 500 mm, 750 mm, 1000 mm, 10", 20", 30", 40"
-
Microns:
-
1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm
-
Usage:
-
Water Pretreatment
-
Packing:
-
Carton Box
-
Temperature resistance:
-
Plastic skeleton polypropylene yarn core: 70 °C
-
Flow rating:
-
High flow rating (m³/h) 0.3, 0.4, 0.5, 1.1, 1.5, 2, 2.5
Quick Details
-
Core Components:
-
FILTERCARTRIDGE
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Macrokun
-
Material:
-
MVQ, EPDM, FPM,Teflon-coated FPM
-
Weight:
-
5
-
Size:
-
161*161*508mm
-
Power:
-
without
-
Weight (KG):
-
5 kg
-
Product name:
-
STRING WOUND FILTER CARTRIDGE
-
Winding material:
-
Polypropylene yarns, Skim cotton yarn, Fiberglass material etc
-
Skeleton material:
-
PP or Stainless steel
-
Outer dimensions:
-
250 mm, 500 mm, 750 mm, 1000 mm, 10", 20", 30", 40"
-
Microns:
-
1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm
-
Usage:
-
Water Pretreatment
-
Packing:
-
Carton Box
-
Temperature resistance:
-
Plastic skeleton polypropylene yarn core: 70 °C
-
Flow rating:
-
High flow rating (m³/h) 0.3, 0.4, 0.5, 1.1, 1.5, 2, 2.5
>>>

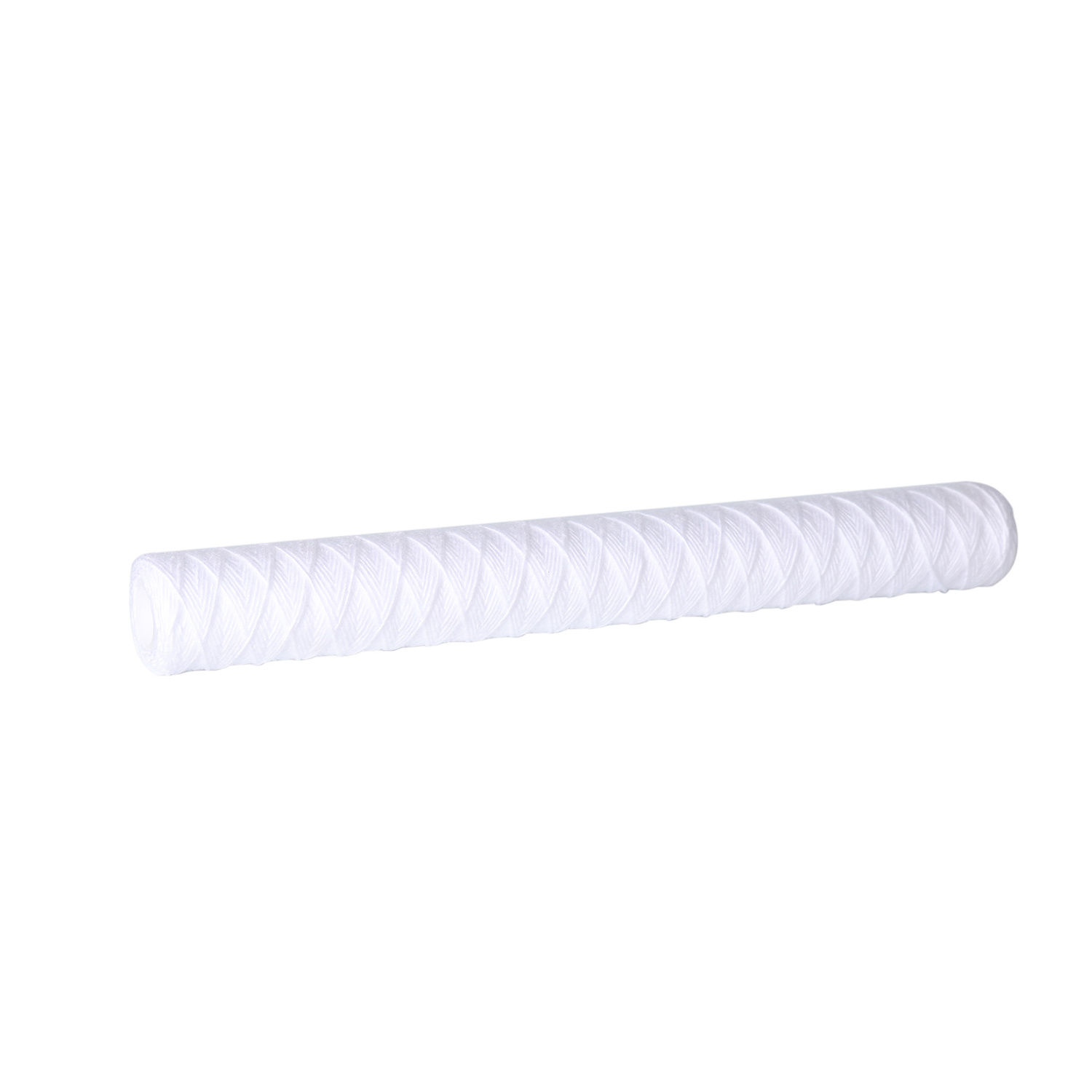

STRING WOUND FILTER CARTRIDGE
String wound filter cartridge is a kind of filter cartridge for depth filtration at low viscosity and low impurity content conditions.
It is made of textile fiber yarn (polypropylene yarns, skim cotton yarn, etc.).
These yarns are precisely wound on the porous skeleton (PP or stainless steel) to form a honeycomb structure that is loose outside and dense inside.
As a result, it offers excellent filtration and absorption performance and can effectively remove suspended solids, fine particles, rust and other impurities from fluids.
|
Product name:
|
String wound filter cartridge
|
|
Winding material:
|
Polypropylene yarns, Skim cotton yarn, Fiberglass material etc
|
|
Skeleton material:
|
PP or Stainless steel
|
|
Outer dimensions:
|
250 mm, 500 mm, 750 mm, 1000 mm, 10", 20", 30", 40"
|
|
Microns:
|
1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm
|
|
Temperature resistance:
|
Plastic skeleton polypropylene yarn core: 70 °C;
Stainless steel skeleton polypropylene yarn core: < 90 °C; Stainless steel skeleton absorbent cotton yarn core: <120 °C. |
|
Flow rating:
|
Take filter cartridge with a length of 250 mm at a differential pressure
of 0.02 MPa and media is clear water at room temperature as an example. Filter rating (μm): 1, 3, 5, 10, 20, 30, 50 High flow rating (m³/h) 0.3, 0.4, 0.5, 1.1, 1.5, 2, 2.5 |
Highly efficient filtration of impurities
The structure is sparse on the outside and dense on the inside, effectively intercepting particle impurities at all levels, with high dirt holding capacity and long service life.
Various Filter Materials
Polypropylene yarns, Skim cotton yarn, Fiberglass material.Three different materials, used in different environments.Water filtration to achieve precise filtration effect.
Features:
1. High filtration accuracy, low differential pressure, high flow, high dirt holding capacity and long service life.
2. Filter pores are small inside and large outside to offer good depth filtration effect.
3. Filter cartridges are made of various materials to meet the filtration requirements of various liquids and achieve an ideal filtration effect.
