Quick Details
-
safety devices:
-
Safety devices use infrared sensing, safe and reliable
-
Cutting speed:
-
200-2000mm/s
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Support file format:
-
AI,PLT,DXF,CDRetc
Quick Details
-
Voltage:
-
380V±10%/220V±10% Optional
-
Place of Origin:
-
Shandong, China
-
Name:
-
belt cutting machine leather
-
safety devices:
-
Safety devices use infrared sensing, safe and reliable
-
Cutting speed:
-
200-2000mm/s
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Support file format:
-
AI,PLT,DXF,CDRetc
Splitting Eva Slipper Cutting Press Equipment Processing Price Belt Seat Cover Leather Skiving Machine
Contact us for more details, super high quality, ultra low price, click here

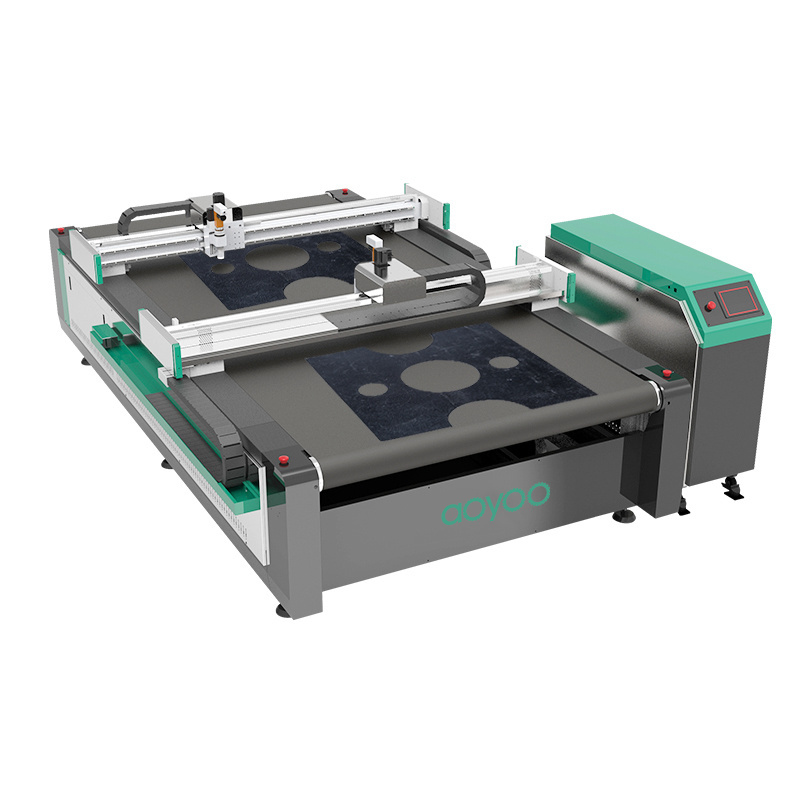

product description of Splitting Eva Slipper Cutting Press Equipment Processing Price Belt Seat Cover Leather Skiving Machine
1,Multiple tool cutter heads, including vibrating knife, drag knife, pen, roller
2, leather, cloth, composite materials can achieve perfect cutting results
3, easy to set half knife, half knife to achieve the perfect effect
4, with safety protection device to prevent personal injury
5, the main models sold in Europe
| Technical parameters / model | AOYOO-1625 | AOYOO-1825 |
| Effective working area | 1600x2500mm | 1800x2500mm |
| Multi-function tool | Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife | |
| safety devices | Safety devices use infrared sensing, safe and reliable | |
| Cutting speed | 200-2000mm/s | |
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |
| Applicable materials | Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc | |
| Material fixing method | Vacuum partition adsorption | |
| Transmission port | Network port | |
| Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |
| rated power | 11kw | |
| Rated voltage | 380V ±10%/220V±10% Optional | |
| Control System | Chinese and English LCD touch screen | |
| Operating environment | Operating environment Temperature 0-40 °C Humidity 20%-80%RH | |
| Support file format | AI ,PLT,DXF,CDRetc | |
| Overall size | 3570x2290x1165mm |
3570x2500x1165mm |
