Quick Details
-
Rated Voltage:
-
10kv
-
Tensile Strength:
-
4~5kN
-
Color:
-
red, brown, green, light grey or customized
-
Brand name:
-
NENGXING
-
Rated voltage:
-
10kv 11kV
-
Minimun nominal creep distance:
-
210~460mm
-
OEM:
-
Avaiable
-
Size:
-
Customized Size
-
Structural height(mm):
-
161mm,195mm,260mm
-
Certification:
-
ISO, GB/T, IEC and etc.
-
Usage:
-
Insulation Protection
-
Product name:
-

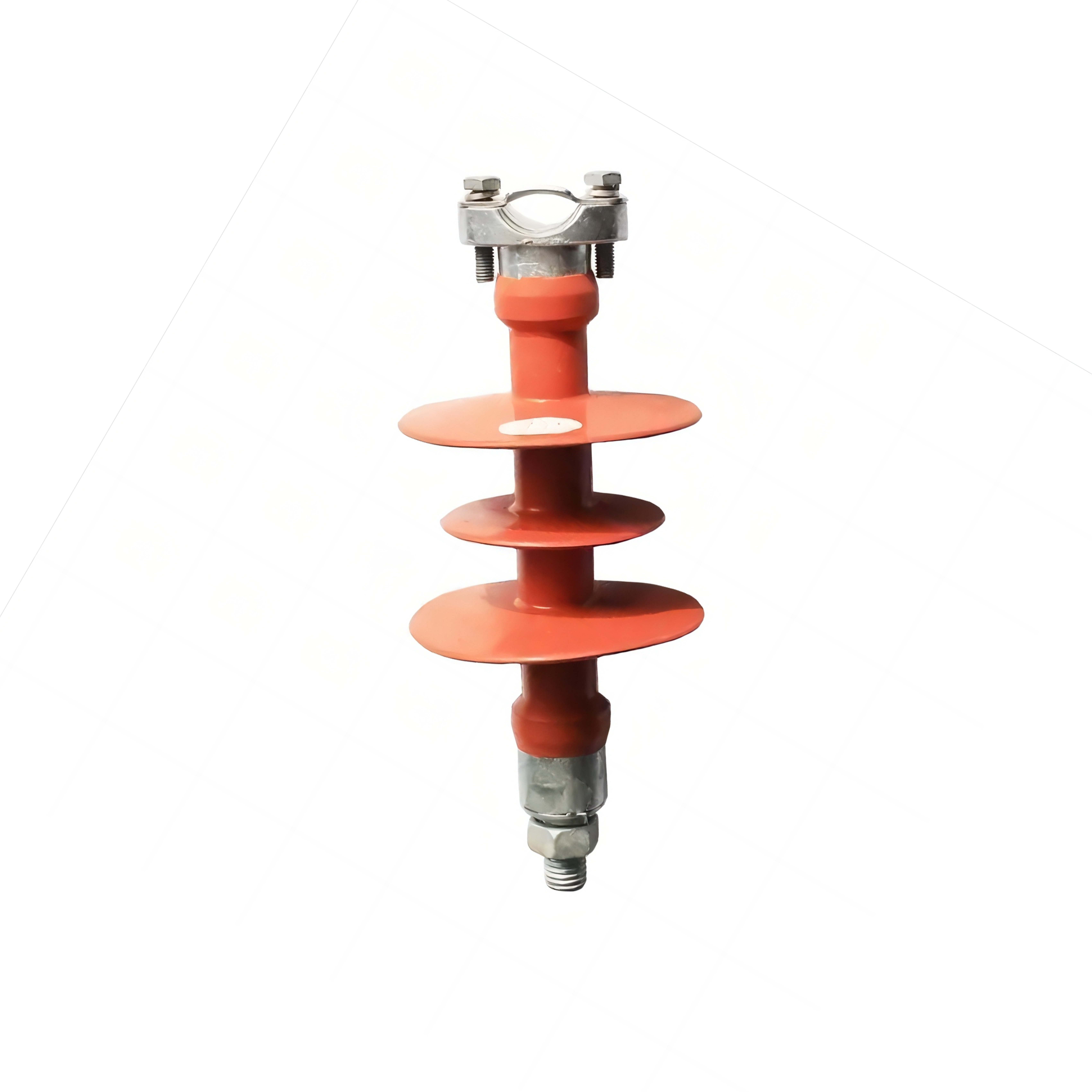

Top quality custom color polymer pin and post type insulator
Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
Nengxing Power
-
Model Number:
-
FPQ Series
-
Rated Voltage:
-
10kv
-
Tensile Strength:
-
4~5kN
-
Color:
-
red, brown, green, light grey or customized
-
Brand name:
-
NENGXING
-
Rated voltage:
-
10kv 11kV
-
Minimun nominal creep distance:
-
210~460mm
-
OEM:
-
Avaiable
-
Size:
-
Customized Size
-
Structural height(mm):
-
161mm,195mm,260mm
-
Certification:
-
ISO, GB/T, IEC and etc.
-
Usage:
-
Insulation Protection
-
Product name:
-
Top quality custom color polymer pin and post type insulator
Product Description
| Type | Rated voltage | Rated mechanical tensile load | Structure height H | Maximum insulation diameter | Minimum arc distance | Minimum nominal creepage distance | Bottom thread diameter | Maximum voltage | Power frequency withstand voltage (effective value)≥wet | Lightning full wave shock withstand voltage (peak)≥ |
| FPQ1-11/4T16-20 | 11 | 4 | 161 | 140 | 105 | 210 | 16-20 | 12 | 40 | 90 |
| FPQ2-11/4T16-20 | 11 | 4 | 195 | 140 | 127 | 300 | 16-20 | 12 | 40 | 90 |
| FPQ2-11/5T16-20 | 11 | 5 | 260 | 140 | 184 | 460 | 16-20 | 12 | 50 | 110 |
| FPQ2-11/5T20-20 | 11 | 5 | 285 | 120 | 245 | 550 | 16-20 | 12 | 50 | 110 |
Materials of Product
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).1000hours aging test & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
