High quality electrical motor winding machine/automatic winding machine/table fan winding machine

High quality electrical motor winding machine/automatic winding machine/table fan winding machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25000

≥10 Pieces

US $23000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max.Transformer Capacity(kVA):: 10 kVA

Place of Origin:: China

Weight (KG):: 1500

Dimension(L*W*H):: 1100*1150*2100

Wire Diameter Range (mm):: 0.01 - 1.2 mm

Application:: Motor Winding

Name:: Automatic Coil Winding Machine

Function:: Automatic Winding

Product name:: Automatic Ceiling Fan Winding

Usage:: Coil Wire Winding

Used for:: Used Automatic Coil Winding Machine

Type:: Fully Automatic

Certification:: CE Certificated

Winding speed:: 2000rpm

Wire type:: Copper Wire

After Warranty Service:: Video technical support, Online support, Spare parts

After-sales Service Provided:: Video technical support, Online support

Local Service Location:: None

Quick Details

Max. Load (KG):: 100 KG

Length of Axis (mm):: 10 mm

Center Height (mm):: 10 mm

Max.Transformer Capacity(kVA):: 10 kVA

Place of Origin:: China

Weight (KG):: 1500

Dimension(L*W*H):: 1100*1150*2100

Wire Diameter Range (mm):: 0.01 - 1.2 mm

Application:: Motor Winding

Name:: Automatic Coil Winding Machine

Function:: Automatic Winding

Product name:: Automatic Ceiling Fan Winding

Usage:: Coil Wire Winding

Used for:: Used Automatic Coil Winding Machine

Type:: Fully Automatic

Certification:: CE Certificated

Winding speed:: 2000rpm

Wire type:: Copper Wire

After Warranty Service:: Video technical support, Online support, Spare parts

After-sales Service Provided:: Video technical support, Online support

Local Service Location:: None

Product Overview

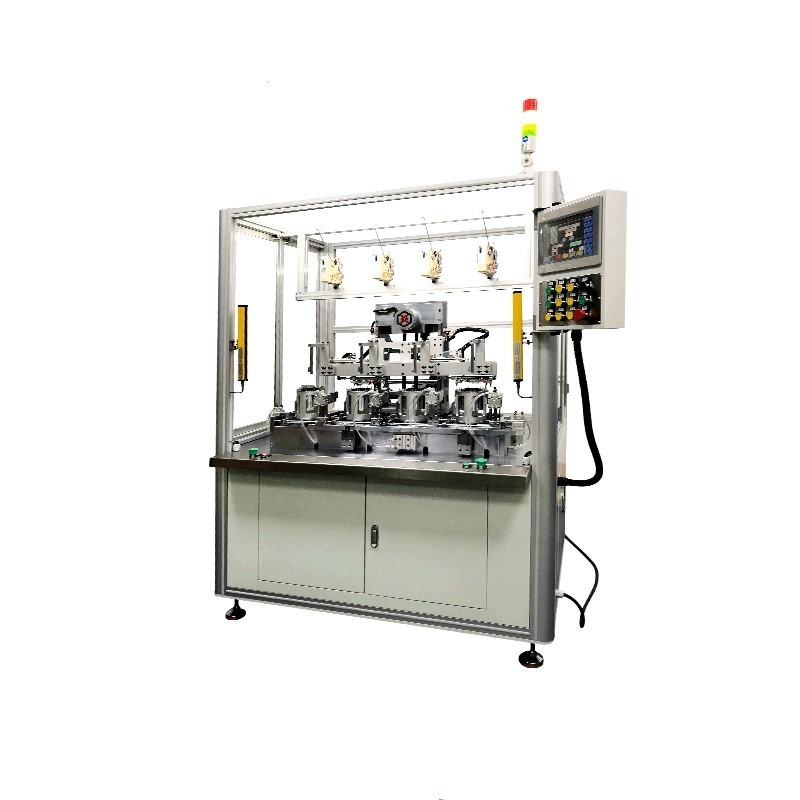

Two Work Station Automatic winding Machine

The system language is English. can remember multiple groups of parameters at the same time. 2 Stators could be wound at the same time. the winding coil is neat and the number of turns is accurate, simple operation, save labor; Machine automatic winding,automatic Turning, automatic line arrangement, automatic clipping; Winding using tungsten steel wire tip, enameled wire loss to a minimum; Mold can be quickly replaced, change the product you can only change the mold.

FEATURES AT A GLANCE

Needle Type

Two Work Station/Four work station

2000-3000RPM

Famous motor and control Parts

Video Support

High efficient

High stability

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Work stations	2
2	Wire diameter range	Ф0.01-Ф1.2
3	Applicable Stator OD	20-140mm
4	Applicable lamination length	5-120mm
5	Applicable Slots	2-360 Slots
6	Power	Ac380V 50/60HZ
7	Air pressure	0.4-0.7mpa
8	Weight	1500kg
