ETD-A 1/2'' automatic drain 24v solenoid valve with timer

ETD-A 1/2'' automatic drain 24v solenoid valve with timer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HOYAN

Standard or Nonstandard:: Standard

Temperature:: NBR:-5~80℃ EPDM:-10~130℃ VITON:-10~150℃

Work Pressure:: 0-16bar

warranty:: one year

Certificate:: ISO9001:2008 CE

Threads:: G, BSPP, NPT

Seal:: NBR, EPDM,VITON

Available voltage:: DC12V,24V AC110V,220V

solenoid valve timer:: solenoid valve timer

Quick Details

Port Size:: 1/2", 1/2"

Place of Origin:: Zhejiang, China

Model Number:: ETD-A

Brand Name:: HOYAN

Standard or Nonstandard:: Standard

Temperature:: NBR:-5~80℃ EPDM:-10~130℃ VITON:-10~150℃

Work Pressure:: 0-16bar

warranty:: one year

Certificate:: ISO9001:2008 CE

Threads:: G, BSPP, NPT

Seal:: NBR, EPDM,VITON

Available voltage:: DC12V,24V AC110V,220V

solenoid valve timer:: solenoid valve timer

Product Description

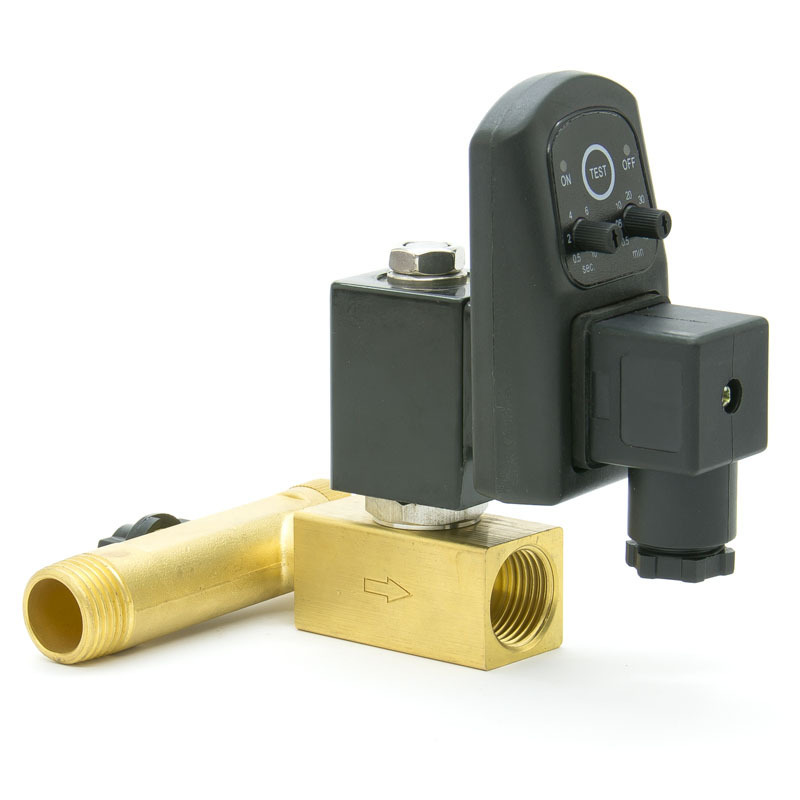

Timer Drain Solenoid Valve

Functions:

Univeral electronic drain valve in analog circuit solid match the solenoid valve, electronic timer implementation to the timing of condensed water from compressed air system auto emissions, Drying machine is widely used in filter separator gasholder dripping feet, compressed air system components, discharge time and interval time can be adjust according to different needs

Features：

1.Easy installation Automatic

2.Time interval and discharge time can be adjust with the test button

3.Orifice size: 3mm pressure: 16 bar

4.Heat resistance level: H class IP 65

5. filter configuration ball valves, import and export into 90°

Electrical Data Sheet		Technical Data Sheet
Timer:	Timer	Model:	ETD-B
Close Time(OFF):	0.5~45min	Type:	2/2 Way direct-Acting
Open Time (ON):	0.5~10s	Pipe:	G 1/2"
Voltage:	24~240v ac/dc 50/60Hz	Work Pressure:	0-16bar
Power:	22VA	Fluids Temp:	<80 ℃
Ambient Temp.	-10~+60℃	Orifice size:	3mm
Protect Class:	IP65	Body:	brass
Housing Material:	Inflaming Retarding ABS	Insulation Grade:	H
Connector:	DIN43650A	Protect Class:	IP65
Lamp:	Electric light	Voltage Ranger:	±10%

Packing & Delivery

Packing :
1.Export Cartons
2.Packed according to the client requirements
Delivery:
Within 15 days after receipt of deposit

ETD-B Series

1.Easy installation Automatic
2.Time interval and dischage time can be adjust with the test button
3.Orifice size:3mm pressure: 16bar
4.Heat resistance level: H class IP 65
5. filter configuration ball valves, import and export into 180°
