Quick Details
-
Brand Name:
-
Jinxin
-
Model Number:
-
GM-4E-D6
-
Product Name:
-
Carbide End Mill
-
HRC:
-
55 Degrees
-
Flute:
-
4 Flutes
-
SHIPMENT:
-
DHL.TNT.UPS.FEDEX.EMS
-
Overall Length:
-
50mm
-
Helix angle:
-
30/ 35/ 45/ 55 Degree
-
Suitable for:
-
Machinery Processing
-
End Mill Type:
-
4 Flute Flat
-
Machine Type:
-
CNC Tool
Quick Details
-
Material:
-
Carbide
-
Coating:
-
AlTiN, TiAIN, TiCN, Tin
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Jinxin
-
Model Number:
-
GM-4E-D6
-
Product Name:
-
Carbide End Mill
-
HRC:
-
55 Degrees
-
Flute:
-
4 Flutes
-
SHIPMENT:
-
DHL.TNT.UPS.FEDEX.EMS
-
Overall Length:
-
50mm
-
Helix angle:
-
30/ 35/ 45/ 55 Degree
-
Suitable for:
-
Machinery Processing
-
End Mill Type:
-
4 Flute Flat
-
Machine Type:
-
CNC Tool
Products Description
2023 New Promotion Customized End Mill CNC Machine Tool Solid Carbide cutting tools
|
Product Name
|
6mm Carbide 4 Flutes Flat Endmill HRC55
|
|
|
||
|
Material
|
Tungsten Carbide,Cemented Carbide
|
|
|
||
|
HRC
|
45/55/58/60/65
|
|
|
||
|
Product Type
|
Solid Carbide End Mills
|
|
|
||
|
Coating
|
Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond
|
|
|
||
|
Helix Angle
|
10degree,15degree,25degree,35degree,45degree,55degree
|
|
|
||
|
Size
|
3mm,4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
Metric & Inch Size Based On Your Requirement
|
|
|
||
|
Tolerance
|
h6
|
|
|
||
|
Suitable For
|
Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc
|
|
|
||
|
Advantages
|
High Precision,Good Surface & Performance
|
|
|
||
|
Certification
|
ISO9001:2015 , Supplier Assessment Certificate
|
|
|
||
|
Flute
|
Blade Diameter(mm)
|
Blade Length(mm)
|
Shank(mm)
|
Full Length(mm)
|
|
4
|
3
|
8
|
4
|
50
|
|
4
|
4
|
11
|
4
|
50
|
|
4
|
5
|
13
|
6
|
50
|
|
4
|
6
|
15
|
6
|
50
|
|
4
|
8
|
20
|
8
|
60
|
|
4
|
10
|
25
|
10
|
75
|
|
4
|
12
|
30
|
12
|
75
|
|
4
|
16
|
45
|
16
|
100
|
|
4
|
20
|
45
|
20
|
100
|
Passivation processing edge, sharp wear - resistant
Four-edge milling cutter is mainly used for side milling and face milling. It is used for processing all kinds of die steel, cast iron, copper parts, etc
|
Coating Introduction
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Coating Name
|
Color
|
Hv
|
μm
|
Friction
|
The Max ℃
|
||||||
|
HRC45 coating
|
AlTiN
|
black
|
3300
|
1-4
|
0.7
|
850℃
|
||||||
|
HRC55 coating
|
TiSiAlN
|
bronzed
|
3400
|
1-4
|
0.7
|
900℃
|
||||||
|
HRC60 coating
|
AlCrSiN
|
black
|
4000
|
1-7
|
0.35
|
1100℃
|
||||||
|
HRC65 coating
|
nACo 3 Blue
|
blue
|
4500
|
1-7
|
0.45
|
1200℃
|
||||||
|
Stainless Steel coating
|
nACo 3 Gold
|
golden
|
4500
|
1-7
|
0.55
|
1200℃
|
||||||
|
Carbide Material Introduction
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Material Grade
|
Grain
|
Introduction
|
|
|
Application
|
||||||
|
HRC45 carbide material
|
YL10.2
|
0.6μm
|
YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
|
|
|
Suitable for General Steel
|
||||||
|
HRC55 carbide material
|
K30
|
0.5μm
|
K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.
|
|
|
General Steel, Stainless Steel, cast iron
|
||||||
|
HRC60 carbide material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
High Hard Material, steel, cast iron, etc
|
||||||
|
HRC65 carbide material
|
GU25UF
|
0.4μm
|
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard
cutting. |
|
|
Titanium Alloy, High-temperature Alloy, Harden material, etc
|
||||||
|
Stainless Steel material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
stainless steel |
||||||

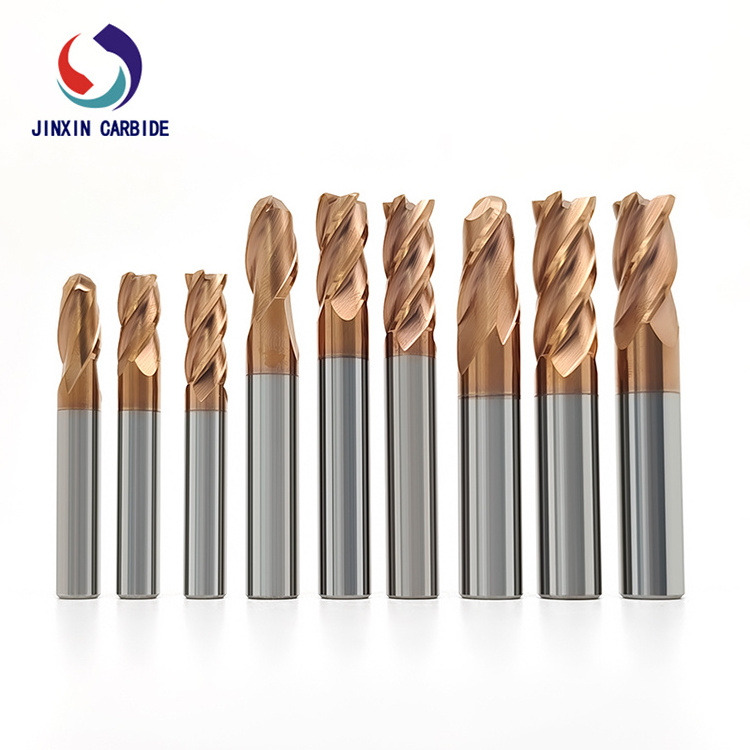

Product Show
Double edge design Large chip removal
Helix angle: 35° Double edge design with helix Angle makes milling cutter more wear-resistant, reduce product bur during processing, more smooth chip removal
Tungsten steel material
Imported raw materials, ultra-fine grain tungsten steel material, effectively ensure the quality of milling cutter
Product Paramenters
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer,have more than 15 years experience in this field.
Q: Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: Can you produce Special carbide Tools ?
A: Yes We can. From 2009 year. Our factory main market change from standard end mills to special tools. Special tools according to your drawing and sample.
A: We are professional manufacturer,have more than 15 years experience in this field.
Q: Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: Can you produce Special carbide Tools ?
A: Yes We can. From 2009 year. Our factory main market change from standard end mills to special tools. Special tools according to your drawing and sample.
