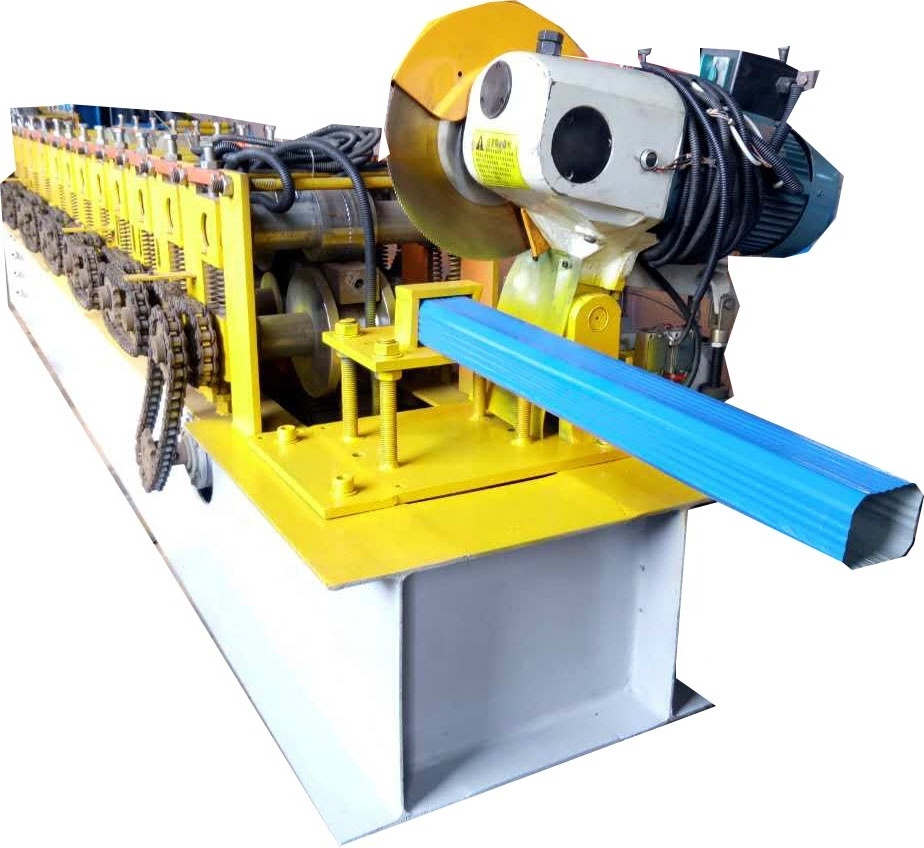

China Elbow machine Downspout forming machine downspout machine

1,Machine Components:

1) Manual Decoiler  1 set

2) Main Machine    1 set

3) Control System   1set

4) Hydraulic System   1 set

5) Output Table     1set

2.Technical Process:

Decoiler--Guided Feeding--Roll Forimg--Cut to Length--Collection Table

3.Technical Parameter:

Shaft material:45# forged steel-high quality steel, diameter 70 mm

Roller material: 45# forged steel with 0.05mm chrome coating

Roller stations: 19 rows of forming rollers

Chain transport: 1.2’’

Speed: 8-12m/min

Main motor power:4 KW

Board thickness:16 mm

Main frame: 300 H steel

Convey by chain transport

Hydraulic power: 4KW

Volt: 380V,60HZ,3 phase or as your need

Certificates :ISO9001:2000,CE

Packing and Shipping:

Packing Details: Main Machine: All rollers will be brushed anti-rusty oil and packed with water proof plastic film.

Control box: be packed with thick cardboard, and outer side thick water proof plastic film.

All parts inside container will be fixed very well which can keep safety and fixed for long time sea time transportation.

Shipping: Shipped in 35 days after payment.

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket , food and accommodation overseas and USD100/person/day for salary.

3. Need one technician

4. Training time: one week (contains the time of installation and adjustment )

T/T, L/C, D/A, D/P, Western Union. Ali Trade Assurance.

Installation and Training:

1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.

Our Service:

1.Customer's Design,Size,Color,Logo are accepted.

2.With 20 years professional manufacture experience.

3.Prompt Delivery&Competitive Price.

4.Main Makets: Middle East, Europe, North American, Africa, Southeast Asia.

After-sales  Service:

1.We provide the technical support for whole life of our machines.

2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should pay for all the cost including Visa,round trip ticket etc.
