Quick Details
-
Material:
-
Plastic
-
Color:
-
Full
-
Power:
-
Battery
-
Geometry:
-
D/8 SCI Mode
-
Light Source:
-
Combined full spectrum LED light source
-
Sensors:
-
Silicon photodiode array (double row 32 groups)
-
Measure the diameter:
-
4/8mm
-
Color space:
-
CIE LAB,XYZ,Yxy,LCh
-
The color difference formula:
-
E*ab, E*00
-
Angle:
-
10°
-
Illuminant:
-
D65,A,F2(CWF)
-
Measurement wavelength range:
-
400~700nm
-
Equivalent Model:
-
CR10/CR10 Plus
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3NH
-
Material:
-
Plastic
-
Color:
-
Full
-
Power:
-
Battery
-
Geometry:
-
D/8 SCI Mode
-
Light Source:
-
Combined full spectrum LED light source
-
Sensors:
-
Silicon photodiode array (double row 32 groups)
-
Measure the diameter:
-
4/8mm
-
Color space:
-
CIE LAB,XYZ,Yxy,LCh
-
The color difference formula:
-
E*ab, E*00
-
Angle:
-
10°
-
Illuminant:
-
D65,A,F2(CWF)
-
Measurement wavelength range:
-
400~700nm
-
Equivalent Model:
-
CR10/CR10 Plus
Product Description
|

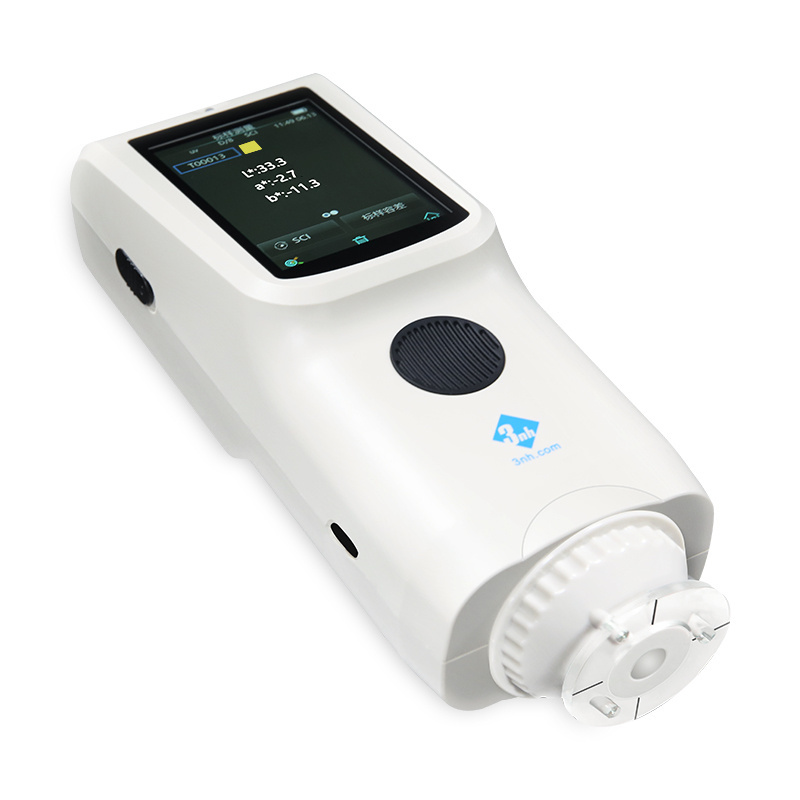

Model
|
CR8
|
|
Optical Geometry
|
D/8(diffused illumination, 8-degree viewing angle)
|
|
|
SCI Mode
|
|
|
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
|
|
Characteristic
|
Φ4/8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and
garment printing and dyeing, printing, ceramics and other industries |
|
Integrating Sphere Size
|
Φ40mm
|
|
Light Source
|
Combined full spectrum LED light source
|
|
Spectrophotometric Mode
|
Flat Grating
|
|
Senso
|
Silicon photodiode array (double row 32 groups)
|
|
Wavelength Range
|
400～700nm
|
|
Wavelength Interval
|
/
|
|
Semiband Width
|
10nm
|
|
Measured Reflectance Range
|
L:0~120; reflectivity:The reflectivity can be measured at 3 specific wavelength specified by the user (default:
440nm、550nm、600nm), APP can realize full-band wavelength display |
|
Measuring Aperture
|
Φ4/8mm
|
|
Specular Component
|
SCI
|
|
Color Space
|
CIE LAB,XYZ,Yxy,LCh
|
|
Color Difference Formula
|
ΔE*ab,ΔE*00
|
|
Other Colorimetric Index
|
Various colorimetric indicators are realized through APP
|
|
Observer Angle
|
10°
|
|
Illuminant
|
D65,A,F2(CWF)
|
|
Displayed Data
|
Reflectivity (the user specifies the reflectivity at 3 specific wavelength), Samples Chromaticity Values, Color Difference
Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
|
Displayed Accuracy
|
0.01
|
|
Measuring Time
|
About 1.5s
|
|
Repeatability
|
Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after
white calibration) |
|
Inter-instrument Error
|
MAV/SCI, Within ΔE*ab 0.35 (Average for 12 BCRA Series II color tiles)
|
|
Measurement Mode
|
Single Measurement, Average Measurement(2-99times)
|
|
Locating Method
|
Stabilizer cross position
|
|
Dimension
|
L*W*H=81X71X214mm
|
|
Weight
|
About 460g
|
|
Battery
|
Li-ion battery, 6000 measurements within 8 hours
|
|
Illuminant Life Span
|
5 years, more than 3 million times measurements
|
|
Display
|
3.5-inch TFT color LCD, Capacitive Touch Screen
|
|
Data Port
|
USB, Bluetooth
|
|
Data Storage
|
Standard 500 Pcs, Sample 10000 Pcs
|
|
Language
|
Simplified Chinese, English, Traditional Chinese
|
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
|
Storage Environment
|
-20~50℃, 0~85%RH (no condensing)
|
|
Standard Accessory
|
Power Adapter, USB Cable, User Guide, SQCX Quality management software, White and Black Calibration Cavity, Protective Cover,
Wrist strap, 4/8mm flat aperture |
|
Optional Accessory
|
USB Micro Printer, Powder Test Box
|
|
Notes
|
Technical parameters are only for reference, subject to the actual sale of the product
|
