Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3550*1770*1400mm
-
Weight (KG):
-
1100 KG
-
Power (kW):
-
3.7
Quick Details
-
Motor Type:
-
Servo
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMARTECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3550*1770*1400mm
-
Weight (KG):
-
1100 KG
-
Power (kW):
-
3.7
COMMODITY&DESCRIPTION

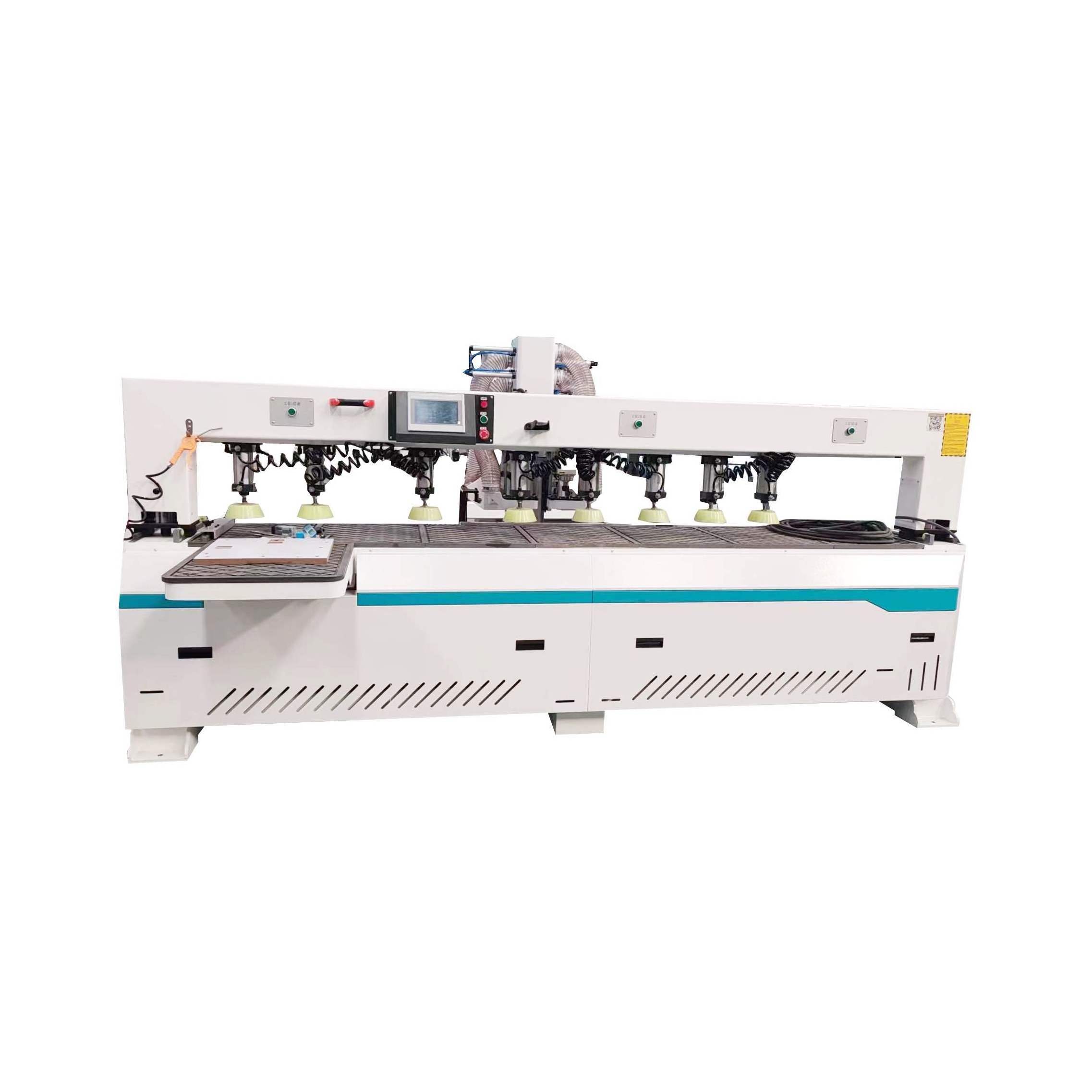

SD1530 All In One Side punch vertical drilling machine Brief Info
Machine size:3550*1770*1400mm
Minimum work piece length and width:100*50mm
4 .5 KW x 2 sets for Horizontal drilling head
+ 4.5KWx 1 Vertical Drilling Head
3.7KW Fuling inverter
Touchwin controller (touching panel)
Automatic positioning
American original Banner Laser displacement sensor
Servo motor driver
Y movement: Rack and pinion, gear drive/Taiwan
Z movement:Pneumatic cylinder
Dedicated positioning device
oil lubrication system
Laser Scanner
Optional Dust Collector for free (Double bags)
F unctions: Side horizontal and vertical holes drilling For Cabinet Furniture /Doors .
Application: The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs
Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments
Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting
Technical Parameter
|
Model |
Sidle drilling machine |
|
Ma chine size |
3350 * 177 0 *1400 mm |
|
Minimum work piece length and width |
100*50mm |
|
W ork piece thickness |
≤30mm |
|
Y movement |
Rack and pinion, gear drive/Taiwan |
|
Z movement |
Pneumatic cylinder |
|
Guide |
Linear 20 square/Taiwan |
|
Max. speed |
1 5,000mm/min |
|
Max. drilling speed |
1 0, 5 00mm/min |
|
Max drill diameter |
100mm |
|
Spindle power |
4.5kw*2 (Horizontal Drilling Head)+ 4.5KW(vertical drilling head) |
|
Spindle speed |
18,000/24 ,000rpm |
|
Inverter power |
15kw |
|
Air pressure |
0.6-0.8Mpa |
|
Drive motors |
Servo |
|
Working voltage |
AC380V/50-60Hz, 3-phase /220V 50HZ/60HZ |
|
Command code |
G code |
|
I nterface |
USB 2.0 |
|
Collet |
ER32- 3.175mm, 6mm, 12.7mm |
|
Barcode scanner |
Yes |
|
Controls |
Touchwin controlling system |
|
Packing dimensions |
35 00 x 190 0 x 1500mm |
|
Net weight/Gross weight |
1 10 0 / 1 1 5 0kg |
|
Standard equipment included |
1. Dedicated positioning device 2. oil lubrication system |
