Quick Details
-
Power (kW):
-
1.9
-
Weight (KG):
-
520
-
Keyword:
-
Finishing Machine
-
Application material:
-
Machined Parts
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rising
-
Marketing Type:
-
Hot Product 2023
-
Power (kW):
-
1.9
-
Weight (KG):
-
520
-
Keyword:
-
Finishing Machine
-
Application material:
-
Machined Parts
同标题
Products Description

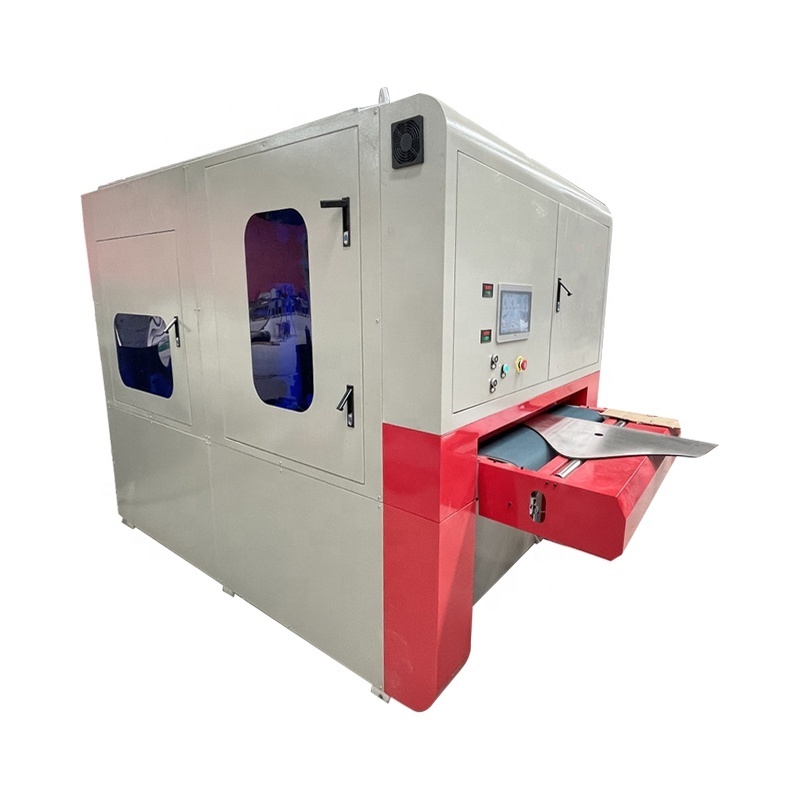

Flat Polishing Machine
The plane polishing machine produced by Rising Factory is equipped with a machine for ultra-precision machining of the plane
workpiece, removing scratches, spots and falling edges on the surface of the workpiece, and making the surface of the workpiece
bright, smooth, mirror-like and even reaching a certain precise coarse degree value.
|
Parameter specification
|
KL- PM630
|
KL- PM1000
|
KL- PM1300
|
|
Machining width
（mm） |
<630
|
<1000
|
<1300
|
|
Processing thickness
（mm） |
2-110
|
2-110
|
2-110
|
|
Length of processed sheet
（mm） |
>400
|
>400
|
>400
|
|
The abrasive belt size
（mm） |
650*1920
|
1020*2020
|
1320*2020
|
|
First sand motor power
（KW） |
11
|
15-18.5
|
37
|
|
Second sand motor power
（KW） |
7.5
|
11.0-15
|
22
|
|
Transmission motor power
（KW） |
1.1
|
1.5
|
4
|
|
Lifting motor power
（KW） |
0.37
|
0.37
|
0.37
|
|
Work pressure
（Mpa） |
0.5
|
0.6
|
0.6
|
|
Conveyor speed
（m/s） |
5--25
|
5--25
|
5--25
|
|
Aspiration air volume（m³/h）
|
5000
|
5000
|
5000
|
|
Overall dimensions
(length width height) （mm） |
1600*1250*2150
|
1600*1250*2150
|
2700*2200*2150
|
|
Weight
（Kg）
|
1400
|
2400
|
3400
|
Product details
Application Industry
Our Advantages
Company information ＆ certificate
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us the details of the products you need polishing and the polishing effect you want. We can provide you with the solution and machine suitable for you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us the details of the products you need polishing and the polishing effect you want. We can provide you with the solution and machine suitable for you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
CONTACT US IF YOU'D LIKE MORE DETAILS
Now send a message or chat to give you the best price！！！！
Our team will provide you with the corresponding scheme and polishing machine
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
