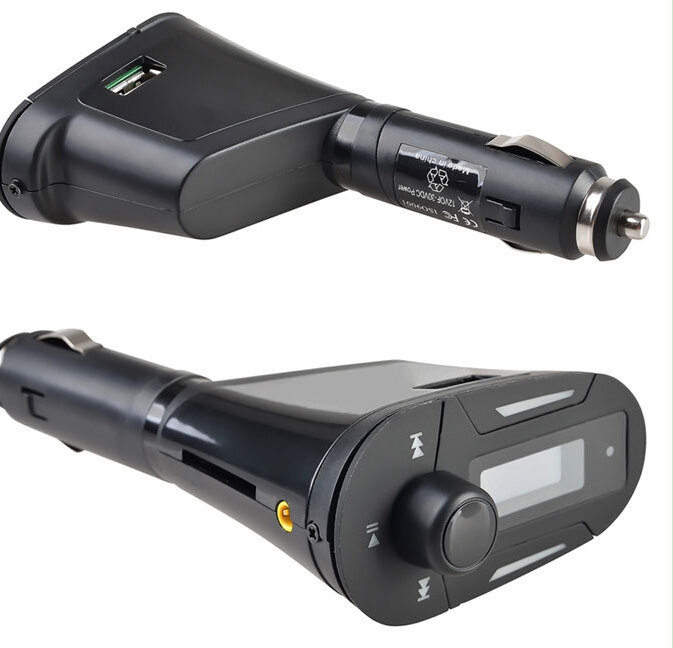

car mp3 player with fm transmitter rds for car mp3

(3) description of the remote control buttons

1. play/pause
2. the transmitting frequency+
3. the transmitting frequency-
4. the volume+
5. the volume-
6. the EQ function
7. on a
8. under a
9. folder selection key
10. exit key
11. digital selection key

(4) Features

1.support SD card/MMC/TF card(mobile phone memory card) and U disk support up to 8GB,both the card reader function

2.unique Volume rotate button,volume,size,power switch,a key to solve

3.USB interface can charge for external portable devices

4.Support MP3/wma MUSIC format file

5.128/33 dot matrix LCD screen(Scarlet Letter of the bouns screen,blue screen,blue on green screen green word)to display the frequency point,the file name,ect.

6.support file playback.

7.the support boot and shultdown functions

8.in both Chinese and English menu operation,support for multiple languages,the ID3 and LRE synchronized layrics display(Chinese,English,Franch,German,Spanish,Portuguese,Russian,Netherlands,Arabic)

9.power and memory and 6 kinds of EQ play mode settings

10.support for remote digital song selection and digital frequency selection function.

11.direct the car cigarette lighter power supply(12-24v)

(5) operating instructions

1. play the music

a.will be the product into the car cigarette lighter seat,then MP3 or WMA music files on the SD card USB driver is inserted into the corresponding socket.The player is detected inside the music file will automatically enter the play button  to toggle play/pause

b.open the car radio audio into the FM radio state,then adjust the transmission frequency on Car MP3 car radio received the same frequency(such as the frequency on Car MP3 car radio frequency 88.5)88.5 pairs can play your favorite songs.

c.adjust the transmission frequency:press CH-87.5 -launch FM frequency of 108.0 MHz between the adjustment,press and hold fast to adjustmyou can also use the remote control,FM operation

d. or key,play one or the next

e.rotating hosts knob can adjust the volume,press and hold the know can directly switch machine

2.Function Select

a.the EQ to select the setting:the machine a total of six play modes,the matural(NORMAC),rock(ROCK),soft(SOFT),Jazz(IAZZ)

Bass(CLASSIC) and surround(SRS),the EQ button in the state press on the remote control to select the operating conversion EQ player in the host,can convert the mode you want to select.

b.song playback mode selection,playback status,often by host pause button adjustable single player,surround playback.

Random play and normal play

c.folder:enter the host option under playback status in the host file on the remote control function key:card catalog,contrast adjustment.remove all firmware versions,language selection.

Host plug the SD card and USB disk in the card catalog to select the songs files and folders you want the folder on the remote control function keys.

a under a to select the card catalog,contrast adjustment,delete all.press the pause button to confirm the language selection,firmware version,select the directory you want to enter the directory you want to select.

(6) power and memory

In order to facilitate your use of the general,every time you use this product after power system under automat

ic memory once you play the point in time and launch frequency information,and the next time you use in from that opint then began to play,but when you remove or replace the storage device or the system detects an error the case of the system will automatically revert to the factory defult settings

( 7 ) Technical Parameters

Rated working voltage	12V-24V
Limit working voltage	9-30V
Consuming work rate	1W
Operating Temperature	0-40 °
Support for playback formats	MP3,WMA
Signal to Noise Ratio	> 60db
Distortion	< 0.1
Frequency response	20Hz-15Khz
Left and right channel separation	> 60db
FM ransmitter frequency	87.5-108Mhz
Weight	46g

(8)Note

1.A native when the volume of the FM transmitter not to open too wide(general location) of 35 or below in order to avoid sound distortion.

Adjust the volume use the car audio adjustment.

2.Although the power FM transmitter in this machine,but when in use should also try to avoid strong local radio signal frequency.

To get beter sound quality

3.Do not use this product is particularly high or low temperature and dusty environment of the tidal temperature

4.Do not let the product falls,so as not to cause surface damage or machine damage

5.Do not disassemble the machine,any questions please contact dealer

6.Continuously improve and enhance the surface changes,because the performance and functionality of the products will not notice

(9)Troubleshooting

Power is not reflected or did not show	.Seat contact is good,check the macine and cigarette lighter socket there is no sperious rust .Machin warranty silk no blows,to put on the fuse of the same specifications(spare) .Unplug reinsert try again
Can not play	.SD card or USB device is not connected with the player,or switch to the SD card or USB device and try .Make sure that no copy of this product to a supported format files in the SD card or USB device .Plase ensure that the volume is not set in the 0 state
Mute but no sound	The player is in pause state,the volume is not adjusted in the zero or small location
No audio prompts poor sound quality	Beyond the connection range
Car audio then can not received voice	Confirm the product launch has been opened.the transmitting equency and receiving frequency are the same
Emission tobe ineffective	Sure now lanched frequency does not have a strong signal stations,the use of transferred and the radio frequency can be better sound effects
Remote control remote control less than	Confirm the remote control battery spacer removing the battreries are replacement battery

(10)Statement

This manual for reference only,such as the actual product’s features and instructions are not completely consistent,the actual product.

Change occurred in the performance and functionality of the product will not do further notice the company has the final say on the instructions,and do not

Assume some manual error or omission caused by any event if the product fails to dismantle the products,the company no warranty

(11)Packing Accessories

Ordinary handle the remoe control,manual,3.5 to 3.5 audio line,fuse,warranty card

(12)After-sales service

1.warranty card

Date
Undesirable phenomena
User Name
Mailling address
contact
Where to buy
Dealer signatrue	User signature

2.the warranty terms

a.A commodity sold one month from the human damage,check the event of failure of performance,this shot of the goods no scratches,packaging remain intact.

Replace the same types of goods

b.The goods from the date of sale one year wattanty and lifetime maintenance,accessories not convered under warranty

c.Warranty services only under normal use

d.All man-made damage,self-disassemble,opened all the appearance of the standard,the use of improper damage not convered under warranty,the warranty must provide the card failed to provide the card or unauthorized alteration of this card,the company reserves the right to do non-warranty handing

e.For warranty please contact your local dealer
