- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BEFANBY
-
Product Type:
-
KPD
-
Color:
-
Red /Yellow /Blue /Gray /Customized
-
Certification:
-
CE ISO
-
Power supply:
-
low voltage railway powered
-
Application:
-
Industry Field/Working Line/Assembly Line/Workshop
-
Running Time:
-
Unlimited
-
Running Speed:
-
0-20m/min
-
Load capacity:
-
1-500t
-
Running distance:
-
Unlimited
-
Operation Type:
-
Hand Pendant+Remote Control
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BEFANBY
-
Product Type:
-
KPD
-
Color:
-
Red /Yellow /Blue /Gray /Customized
-
Certification:
-
CE ISO
-
Power supply:
-
low voltage railway powered
-
Application:
-
Industry Field/Working Line/Assembly Line/Workshop
-
Running Time:
-
Unlimited
-
Running Speed:
-
0-20m/min
-
Load capacity:
-
1-500t
-
Running distance:
-
Unlimited
-
Operation Type:
-
Hand Pendant+Remote Control
Products Description

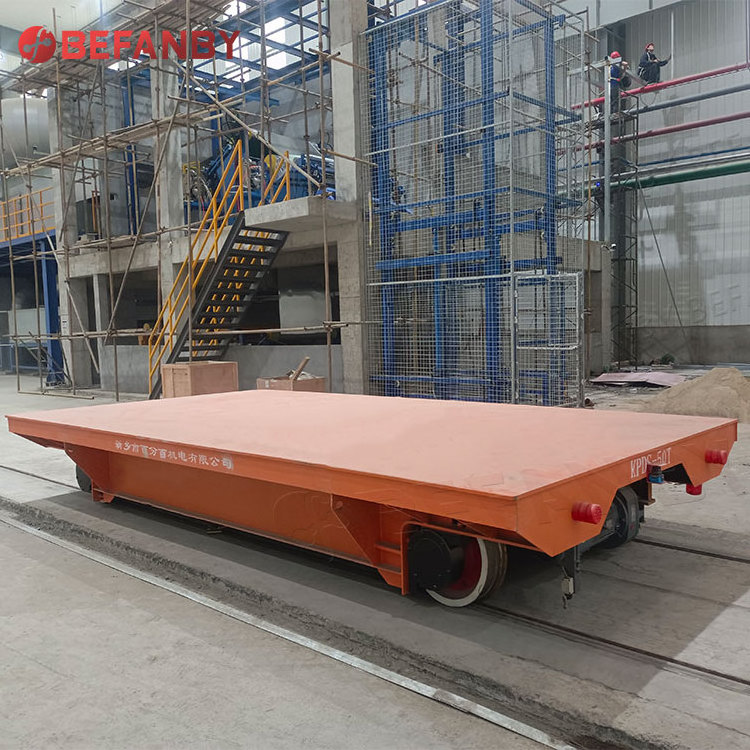

90 Ton assemble line electric railroad transfer cart for sale
The low voltage railways transfer cart delivery usually comes with heavy duty electric rail transfer cart. It provides large load capacity, high frequency of use, long distance transportation. When the running distance is more than 70 meters,more transformers are needed to compensate for the rail pressure drop.
Features for transfer cart:
1. Running distance is unlimited.(More than 70 meters, need to add transformer.)
2. High frequency of use, unlimited running time.
3. The low voltage railways transfer cart can turn and run on "S" or curved tracks.
3. The low voltage railways transfer cart can turn and run on "S" or curved tracks.
4. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
Details Images
Product Parameter
|
Modle
|
KPD-10T
|
KPD-30T
|
KPD-50T
|
KPD-80T
|
KPD-100T
|
KPD-150T
|
|||||
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.85
|
10*3.0*1.2
|
|||||
|
Power
|
Low Voltage Rail Power
|
|
|
|
|
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|||||
|
Wheel Dia.
|
300mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|||||
|
Running Speed
|
25m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|||||
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
7.5kw
|
11kw
|
15kw
|
|||||
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|||||
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
|||||
|
Recommend Rail
|
P18
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
|||||
Remark:
the technical parameter of the transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.
Function
Product Features
Shipping
Shopping Notes
Hi my friend.
It's my honor to learn that you are interested in our products.
Because different customers have different product specifications and functional requirements, all our products are customized on demand.
The product
prices on this page are
for reference only.
Please consult us for specific prices
.
Thank you for your understanding.
We will quote you in time, and provide you with free technical support, product drawings, etc.
Our Company
Related Products
FAQ
Q
How can I operate the transfer cart ?
A
Please don’t worry, dear friend. The English user manual, parts manual will be delivered with your items together.
Q
Is there any braking system on the transfer cart?
A
Yep, there are electromagnetic brakes on the transfer cart. When
the transfer cart
is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and
the transfer cart
, you can push it for the emergency stop.
Q
How can you ensure the quality?
A
Before delivery, every product will be made test, and we will send you the quality certification. You are also warmly welcomed to come to our factory to make inspection.
Q
What is the warranty period? What kind of service do you offer in the warranty period?
A
The warranty period for our product is 24 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
