Quick Details
-
Brand Name:
-
Hengchang
-
Dimension(L*W*H):
-
1320*820*1000mm
-
Weight:
-
400 KG
-
Product name:
-
Aggregate Limestone Hammer Crusher Hammer Mill Stone Crusher
-
Max feed size (mm):
-
≤50mm
-
Output size:
-
0.1-12mm
-
Keyword:
-
Hammer Crusher Mill,Stone Crusher,Rock Hammer Mill
-
Price:
-
Competetive (can Discuss)
-
MOQ:
-
1 Set
-
Color:
-
As your request
-
Quality:
-
Advanced Technology
-
Factory visit:
-
Welcomed Warmly
-
Main product:
-
Jaw crusher,Ball mill,Hammer crusher,Hammer mill,Shaking table etc
Quick Details
-
Application:
-
Mining Industry
-
Capacity(t/h):
-
1-2
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchang
-
Dimension(L*W*H):
-
1320*820*1000mm
-
Weight:
-
400 KG
-
Product name:
-
Aggregate Limestone Hammer Crusher Hammer Mill Stone Crusher
-
Max feed size (mm):
-
≤50mm
-
Output size:
-
0.1-12mm
-
Keyword:
-
Hammer Crusher Mill,Stone Crusher,Rock Hammer Mill
-
Price:
-
Competetive (can Discuss)
-
MOQ:
-
1 Set
-
Color:
-
As your request
-
Quality:
-
Advanced Technology
-
Factory visit:
-
Welcomed Warmly
-
Main product:
-
Jaw crusher,Ball mill,Hammer crusher,Hammer mill,Shaking table etc

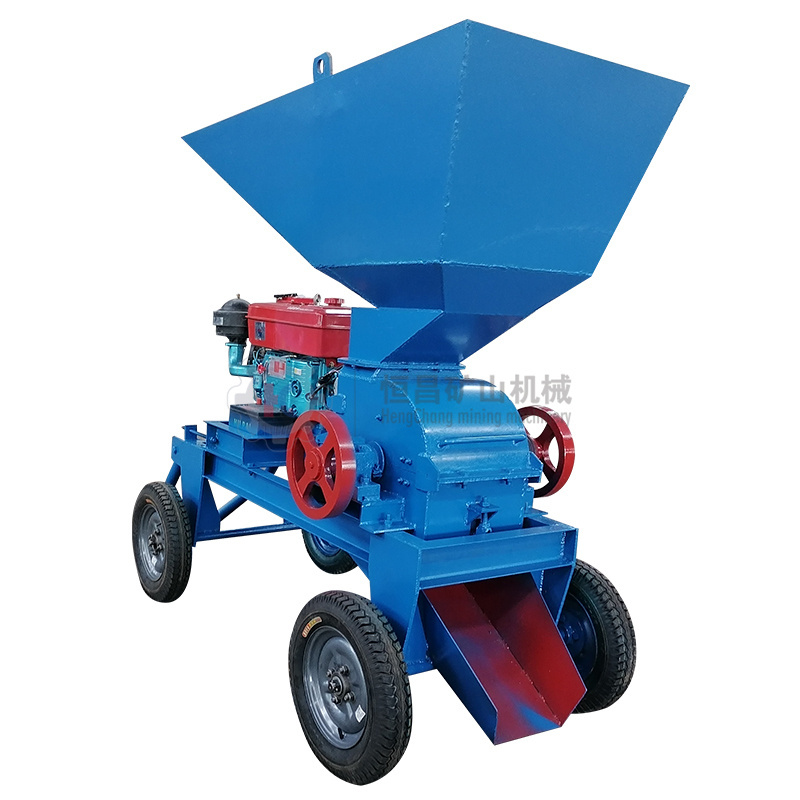

Professional Manufacturer Diesel Engine Portable Small Rock Crusher Aggregate Limestone Hammer Crusher Hammer Mill Stone Crusher
Hengchang machinery hammer mill can be used for many minerals fine crushing, such as stone, rock, gold, copper, iron and zinc ore and so on. When you find us, you find the best mining machinery manufacturers.
Hammer Mill
Introduction:
Hammer mill crusher is a fine crushing machine whose purpose is to shred or crush aggregate material into smaller particulates (under 2 mm) by the repeated blows of little hammers.
Working Principle:
A hammer mill crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.
Widely Applications:
Hammer mill is mainly used for crushing various soft and medium-hard ore, whose compression strength is not higher than 320 Mpa, such as coal, salt, chalk, gypsum, blocks, limestone, glasses, and phosphate, etc.
Hammer mill crusher is a fine crushing machine whose purpose is to shred or crush aggregate material into smaller particulates (under 2 mm) by the repeated blows of little hammers.
Working Principle:
A hammer mill crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.
Widely Applications:
Hammer mill is mainly used for crushing various soft and medium-hard ore, whose compression strength is not higher than 320 Mpa, such as coal, salt, chalk, gypsum, blocks, limestone, glasses, and phosphate, etc.
|
Model
|
Capacity
(t/h)
|
Max Feeding Size
(mm)
|
Output Size
(mm)
|
Hammers
(pcs)
|
Motor
(kw)
|
|
200×500
|
1-2
|
≤50
|
0.1-12
|
6
|
5.5
|
|
300×500
|
1.5-3
|
≤50
|
0.1-12
|
8
|
11
|
|
400×500
|
3-6
|
≤60
|
0.1-12
|
10
|
15
|
|
400×600
|
4-8
|
≤80
|
0.1-12
|
10
|
22
|
|
500×600
|
5-10
|
≤100
|
0.1-12
|
12
|
30
|
|
600×600
|
12-20
|
≤150
|
0.1-12
|
20
|
37
|
1.What is your machine used for ?
Our Hammer Mill is used for Crushing the materials such as Stone,Gold Mining, ilmenite, chromite, pyrite, zircon, rutile,
monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about the service of your company?
All machines with one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
6.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
