Quick Details
-
Brand Name:
-
Perfte
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-

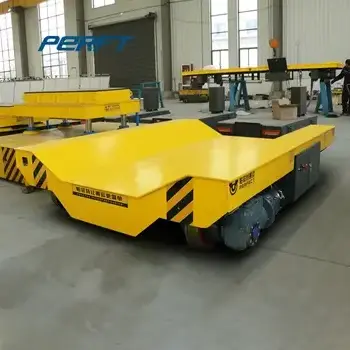

Industrial Heavy Load Electric Motor Steel Coil Transfer Trolley
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Power Supply:
-
Rail /Battery /Cable Reel
-
Running speed:
-
0-50 m/min(Adjustable)
-
Control Style:
-
Wire / Wireless / PLC
-
Size:
-
Customized
-
Certificates:
-
CE ISO
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Perfte
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Industrial Heavy Load Electric Motor Steel Coil Transfer Trolley
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Power Supply:
-
Rail /Battery /Cable Reel
-
Running speed:
-
0-50 m/min(Adjustable)
-
Control Style:
-
Wire / Wireless / PLC
-
Size:
-
Customized
-
Certificates:
-
CE ISO
Factory supply 10t Load Electrical Cargo Transfer Trolley Trailer Transfer Cart / railroad trailer
Parameter
|
Model |
BXC-2T |
BXC-10T |
BXC-20T |
BXC-30T |
BXC-50T |
BXC-63T |
BXC-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width(W) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height(H) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running Distance for one Charge(Km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Max Wheel Load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|
The certifciate show of our company :
-
1. Q: What is the table size and load capacity of this steel coil transfer trolley?
A:The size and load of the transfer cart is customized according to your requirement.2. Q: How do you transport the electric transfer cart and what is the package ?
A: The cart’s body is packed with tarp, the wheels and accessories are packed with wooden case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: What is your MOQ?
A: The MOQ is 1 set.
5. Q:Can we choose the power supply for the Heavy Load coil transfer trolley?
A:Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.6, Q:What certificates do you have?
A:ISO9001,CE,SASO,SGS,etc.
