Quick Details
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
juncheng
-
Dimension(L*W*H):
-
1650*750*1100mm
-
Weight:
-
400 kg
-
Power:
-
380v 220V, 3KW-11KW CUTOMIZED
-
Model:
-
JC- 3II
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
RED
-
Function:
-
Wet cement spray Machine
-
Applicable materials:
-
Mortar Cement Water
-
Capacity:
-
35L
-
Name:
-
Motar Concrete Machine
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Advantage:
-
Higher Efficiency
Quick Details
-
Max. vertical conveying distance:
-
20M
-
Max. horizontal conveying distance:
-
30M
-
Hopper Capacity:
-
50L
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
juncheng
-
Dimension(L*W*H):
-
1650*750*1100mm
-
Weight:
-
400 kg
-
Power:
-
380v 220V, 3KW-11KW CUTOMIZED
-
Model:
-
JC- 3II
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
RED
-
Function:
-
Wet cement spray Machine
-
Applicable materials:
-
Mortar Cement Water
-
Capacity:
-
35L
-
Name:
-
Motar Concrete Machine
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Advantage:
-
Higher Efficiency
Product Overview

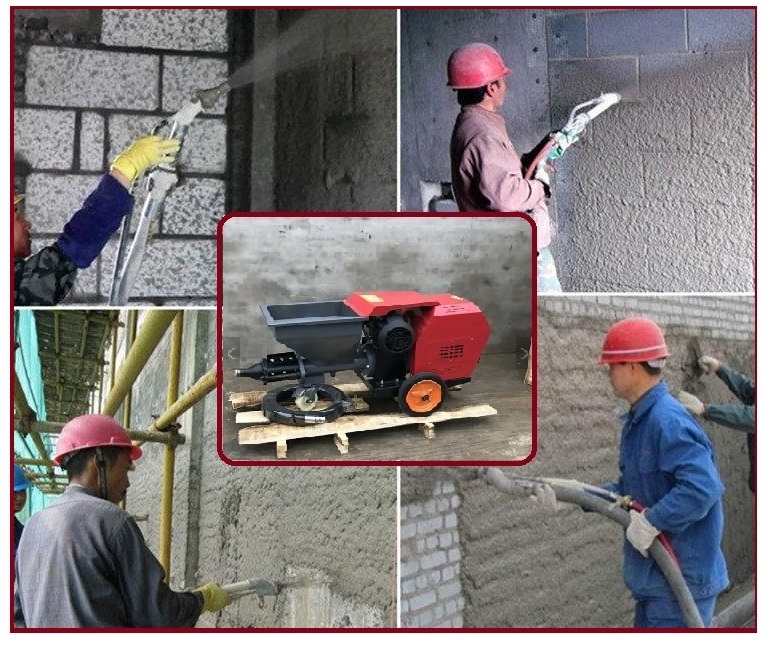

Electric Mortar Cement Spraying Machine Wall Plastering With Air Compressor
a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses.
PRODUCT SPECIFICATIONS
Type
|
xp-3II
|
Production Capacity
|
3m³/h
|
Working Pressure
|
3MPa
|
Rate of Applicable Materials
|
Water:Mortar:Sand=(0.7-1):1:3
|
Horizontal Delivery Distance
|
20m
|
Inner Size of Hose
|
Ø 32mm
|
Maximum Aggregate Size
|
Ø ≤4mm
|
Hopper volume
|
50L
|
Air Compressor
|
0.3m³/h
|
Motor Power
|
7.5KW
|
Voltage
|
380v or as Your Request
|
Dimension
|
2000x500x1150mm
|
Net Weight
|
320KG
|
