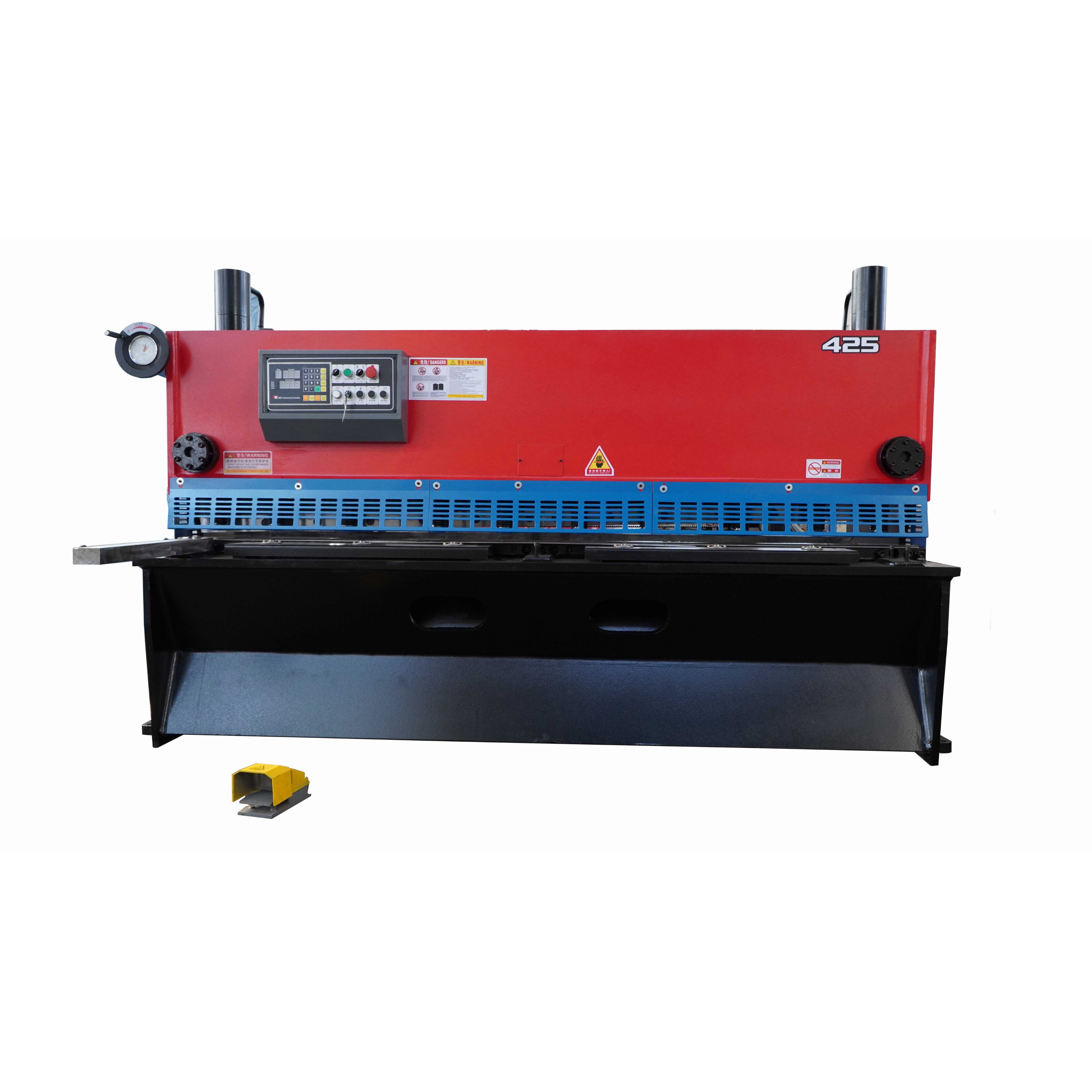

High-quality motor with gear
pump, low noise, pressure fast
shear plate force, long life.
- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
HANRUI
-
Power (kW):
-
4 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
ANHUI,CHINA
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
3100*1400*1700
-
Year:
-
new
-
Marketing Type:
-
Hot Product
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1°30'
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
HANRUI
-
Power (kW):
-
4 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
ANHUI,CHINA
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
3100*1400*1700
-
Year:
-
new
-
Marketing Type:
-
Hot Product
Performance characteristics
1. The vibration of the machine and the tool holder eliminates the stress, the whole machine is welded, and is not easy to wear.
2. Integrated hydraulic system, good reliability;
3. Adopt three-point bearing rolling guide rail to eliminate bearing clearance and ensure shearing quality.
4. The upper and lower blades use four-sided blades to increase the use time. 5. The shearing angle can be adjusted electrically to reduce the deformation of the sheared plate.
6. It has the function of segmented fixed length shear.
7. Electric rear stopper, digital display, accurate and reliable;
|
Models
|
Shear plate thickness mm
|
Shear plate width mm
|
Back gauge range mm
|
Shear angle
|
Throat orifice depth mm
|
Main motor work KW
|
Shape size mm (LxWxH)
|
|
4*2500
|
4
|
2500
|
600
|
0.5-1.5
|
100
|
5.5
|
3000*2000*1850
|
|
6*2500
|
6
|
2500
|
600
|
0.5-1.5
|
125
|
7.5
|
3030*2075*1920
|
|
6*3200
|
6
|
3200
|
600
|
0.5-1.5
|
125
|
7.5
|
3730*2075*1970
|
|
6*4000
|
6
|
4000
|
600
|
0.5-1.5
|
125
|
7.5
|
4530*2075*2080
|
|
6*5000
|
6
|
5000
|
800
|
0.5-1.5
|
125
|
7.5
|
5530*2075*2210
|
|
6*6000
|
6
|
6000
|
800
|
0.5-1.5
|
125
|
11
|
6530*2075*2520
|
|
7*7000
|
7
|
7000
|
800
|
0.5-1.5
|
125
|
11
|
7530*2075*2830
|
|
8*2500
|
8
|
2500
|
600
|
0.5-1.5
|
125
|
11
|
3040*2075*1920
|
|
8*3200
|
8
|
3200
|
600
|
0.5-1.5
|
125
|
11
|
3740*2075*1920
|
|
12*2500
|
12
|
2500
|
800
|
0.5-2
|
125
|
15
|
3110*2575*2210
|
|
12*3200
|
12
|
3200
|
800
|
0.5-2
|
125
|
15
|
3810*2575*2420
|
|
12*4000
|
12
|
4000
|
800
|
0.5-2
|
125
|
15
|
4610*2575*2530
|
|
16*2500
|
16
|
2500
|
800
|
0.5-2.5
|
125
|
22
|
3130*2655*2200
|
|
16*3200
|
16
|
3200
|
800
|
0.5-2.5
|
125
|
22
|
3830*2655*2200
|
|
16*4000
|
16
|
4000
|
800
|
0.5-2.5
|
125
|
22
|
4630*2655*2570
|
|
20*2500
|
20
|
2500
|
800
|
0.5-2.5
|
125
|
30
|
3160*2855*2300
|
|
20*4000
|
20
|
4000
|
800
|
0.5-2.5
|
125
|
30
|
4660*2855*2720
|
|
25*2500
|
25
|
2500
|
800
|
0.5-3.5
|
120
|
37
|
3330*2000*2650
|
|
25*3200
|
25
|
3200
|
800
|
0.5-3.5
|
120
|
37
|
3970*2100*2865
|
|
25*4000
|
25
|
4000
|
1000
|
0.5-3.5
|
120
|
37
|
4780*2500*3150
|
|
32*2500
|
32
|
2500
|
1000
|
0.5-3.5
|
120
|
45
|
4100*2300*3200
|
|
32*3200
|
32
|
3200
|
1000
|
0.5-3.5
|
120
|
55
|
1900*2650*3450
|
|
40*2500
|
40
|
2500
|
1000
|
0.5-3.5
|
120
|
75
|
4100*2550*3500
|
|
40*3200
|
40
|
3200
|
1000
|
0.5-3.5
|
120
|
75
|
4900*2900*3700
|
Show the details
Motor oil pump
Shear Blades
The shearing machine comes withthe highest quality shear bladesavailable, made of high carbonhigh chrome and shock resistingcomposition, suited to shear a widevariety of materials.
Control system
■ Backgauge motion control (X axis)
■ AC motor control or inverter
■ Intelligent and one-sided positioning
■ Work piece counting function
■ Double programmable digital output
■ 40 saved programs, 25 steps per program
■ One key parameter backup/restore
■ Unit for mm/inch
■ Language for Chinese/English
■ Angle of cut, adjustment
■ Intelligent and one-sided positioning
■ Work piece counting function
■ Double programmable digital output
■ 40 saved programs, 25 steps per program
■ One key parameter backup/restore
■ Unit for mm/inch
■ Language for Chinese/English
■ Angle of cut, adjustment
Quality
Schneider Electric componentespiezas electricas de alta calidadpueden funcionar bien incluso laelectricidad no es estable y losclientes pueden obtener facilmenteel reemplazo en cualquier lugar
Hydraulic System
Hydraulic drive smooth, reliableintegrated hydraulic system design toreduce problems brought about byleakage of hydraulic oil.
SHOW THE DETAILS
A VIEW OF THE FACTORY
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
